Specification:

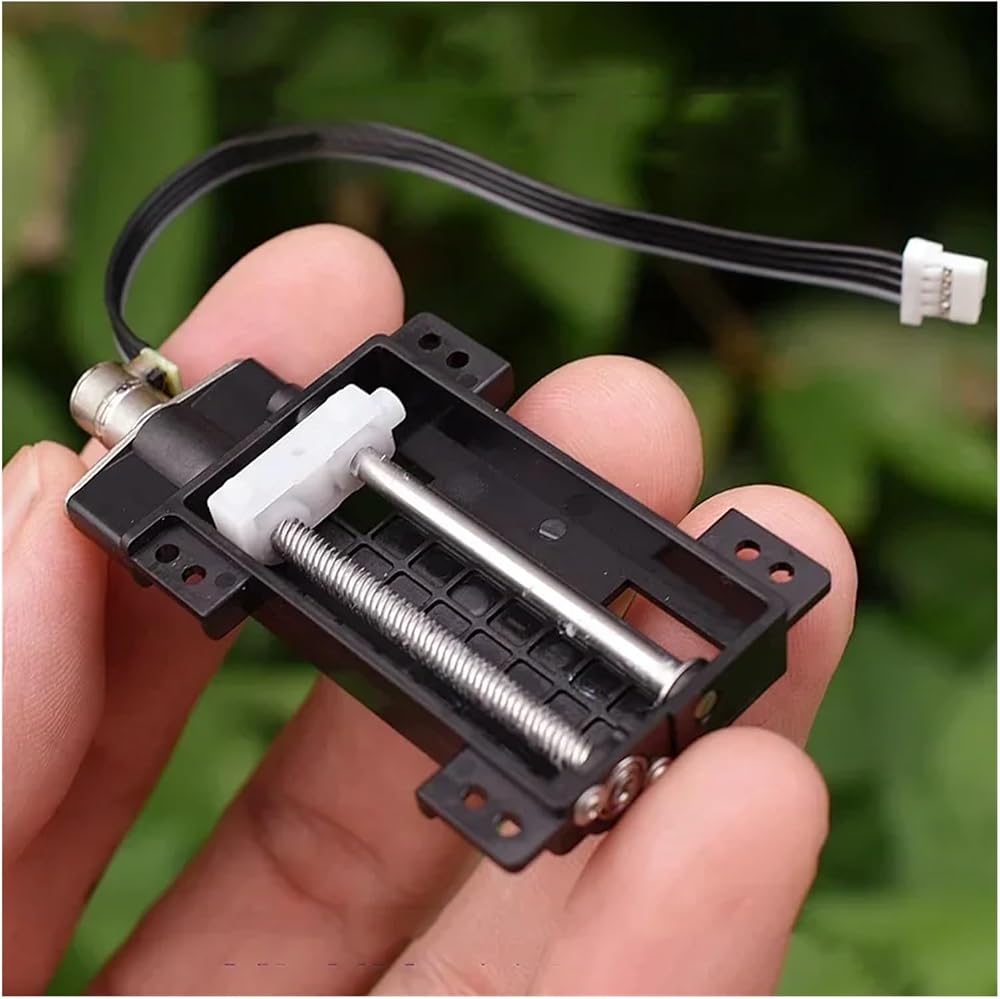

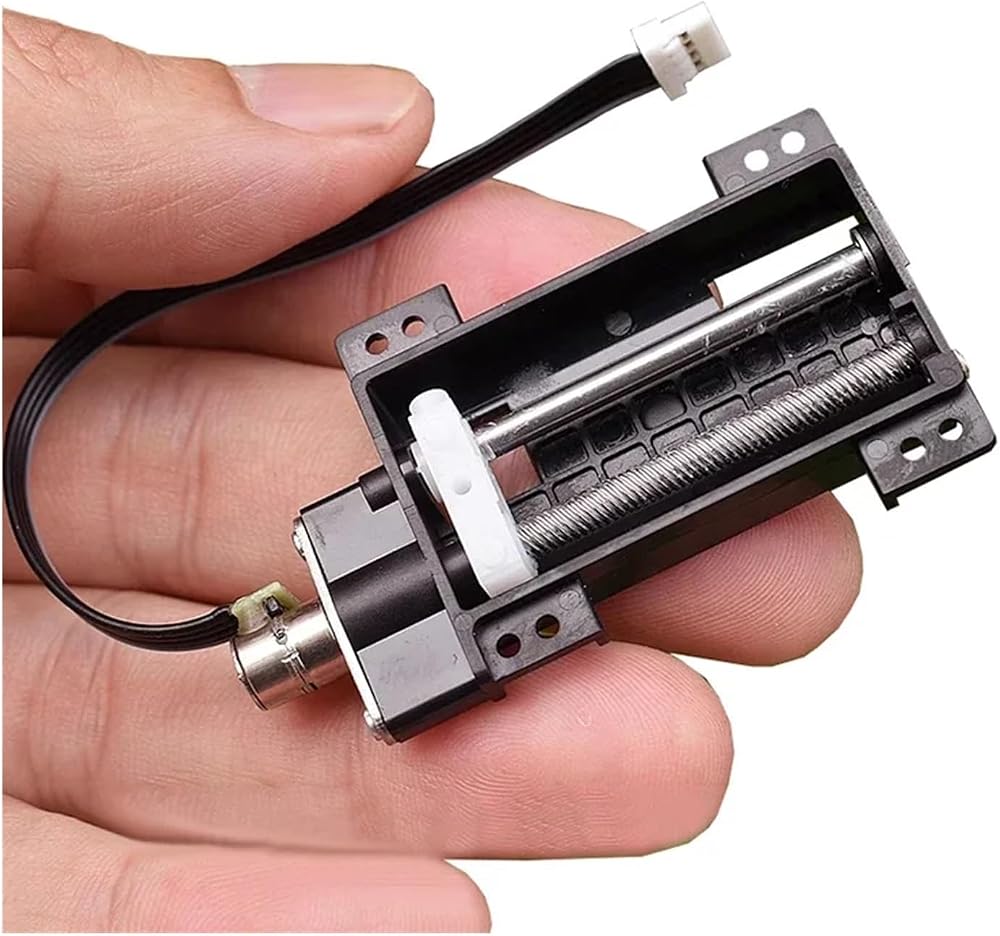

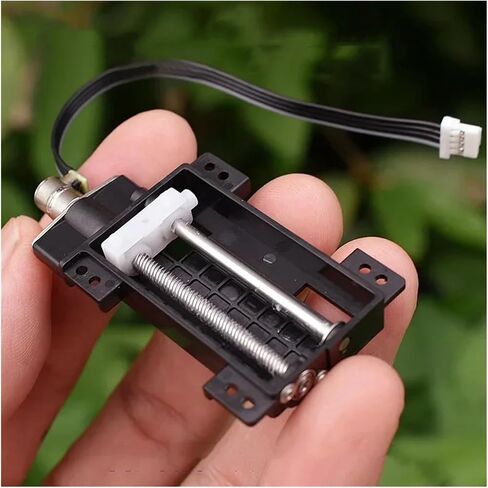

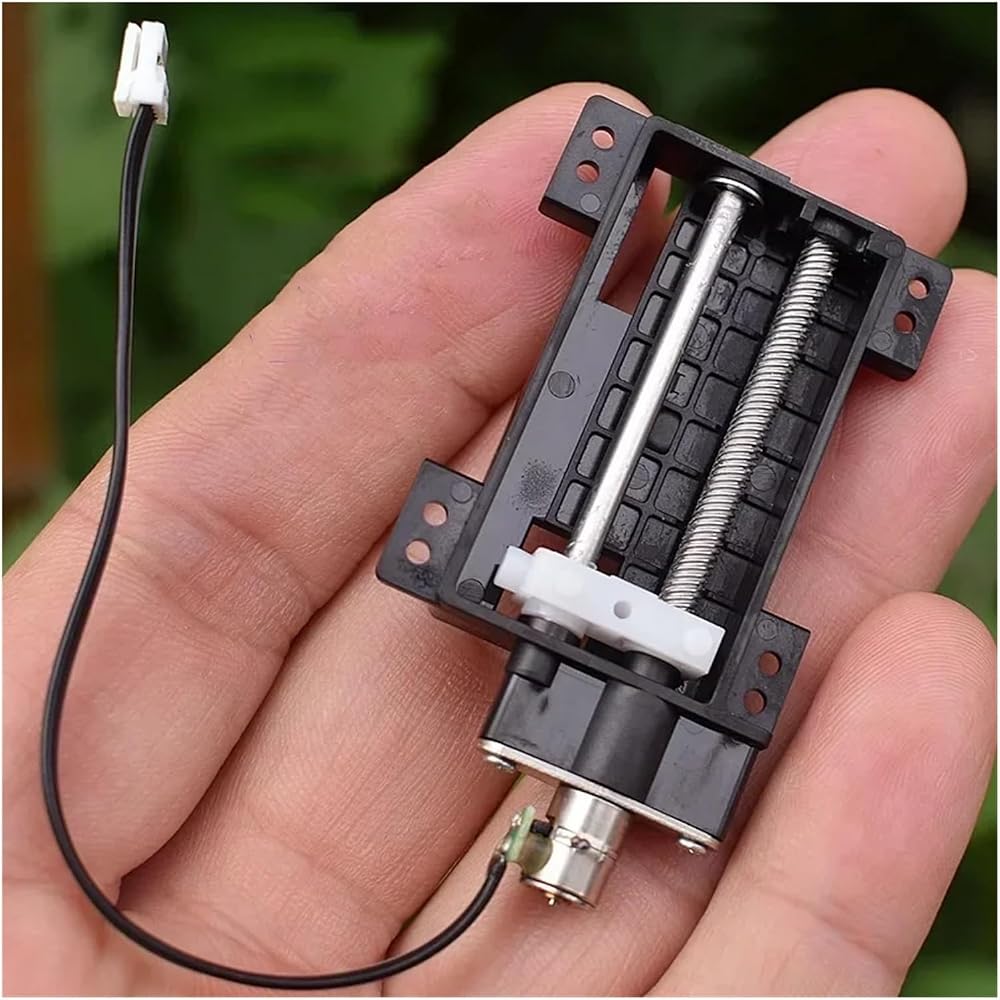

Brand new miniature 6MM planetary reduction stepper motor with precision lever slide,

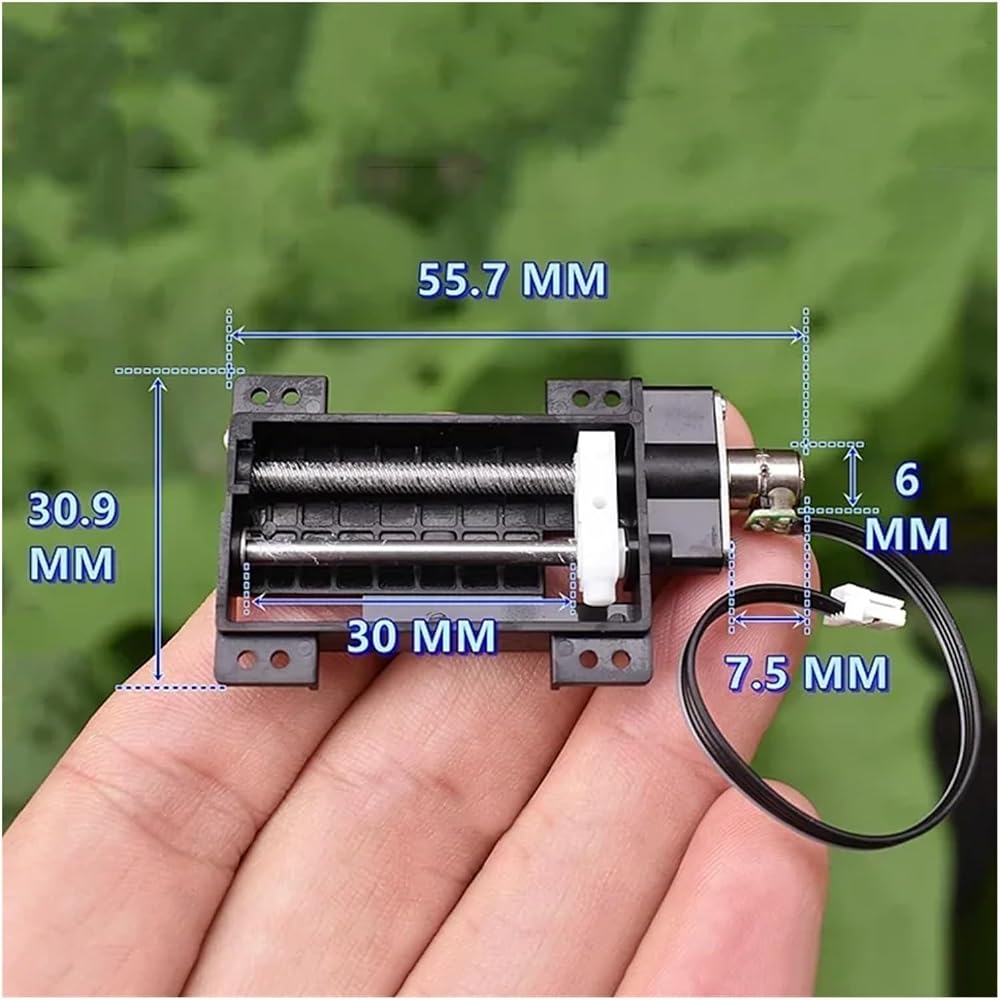

with a motor specification of 6MM * 7.5MM two-phase four-wire stepper motor. The phase resistance of the motor is approximately 13.2 ohms.

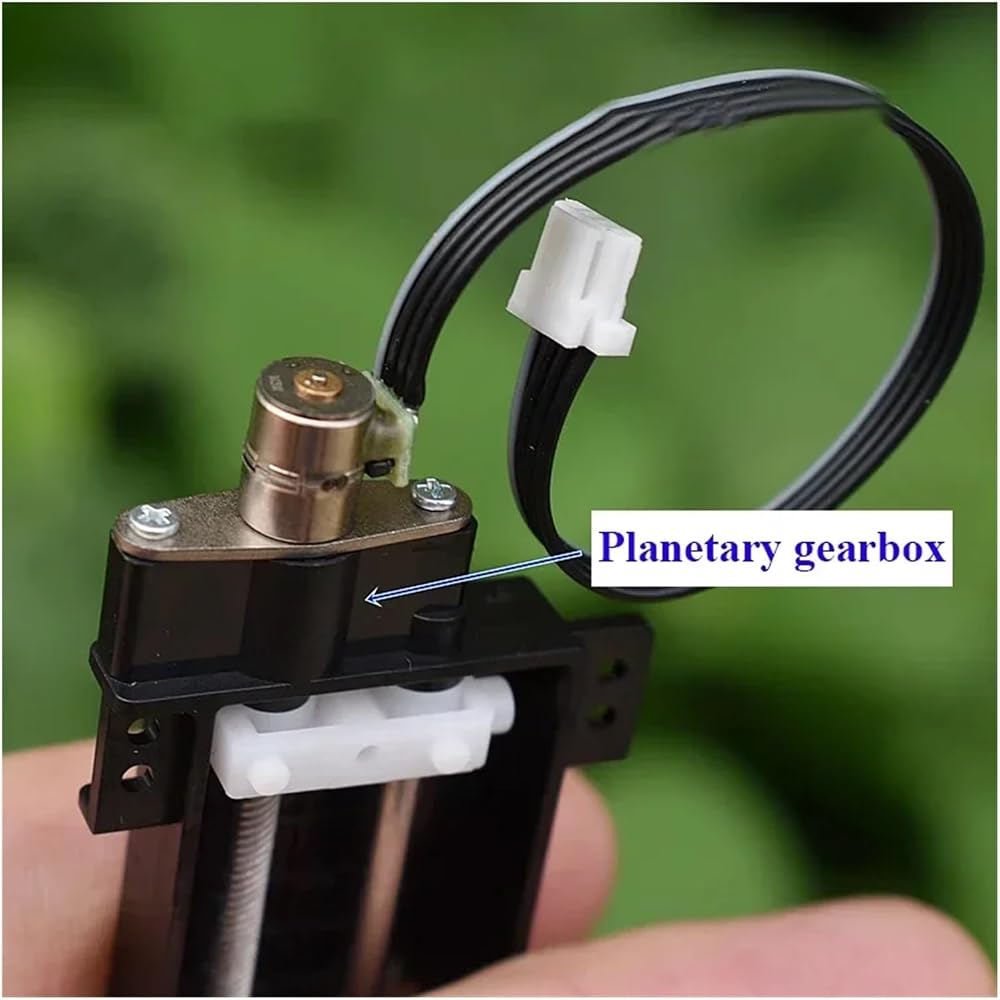

The stepper motor passes through the planetary gearbox and then drives the driver rod to push the slider up and down. The maximum stroke is about 30 mm, which is about 5800 pulse signals to complete the stroke.

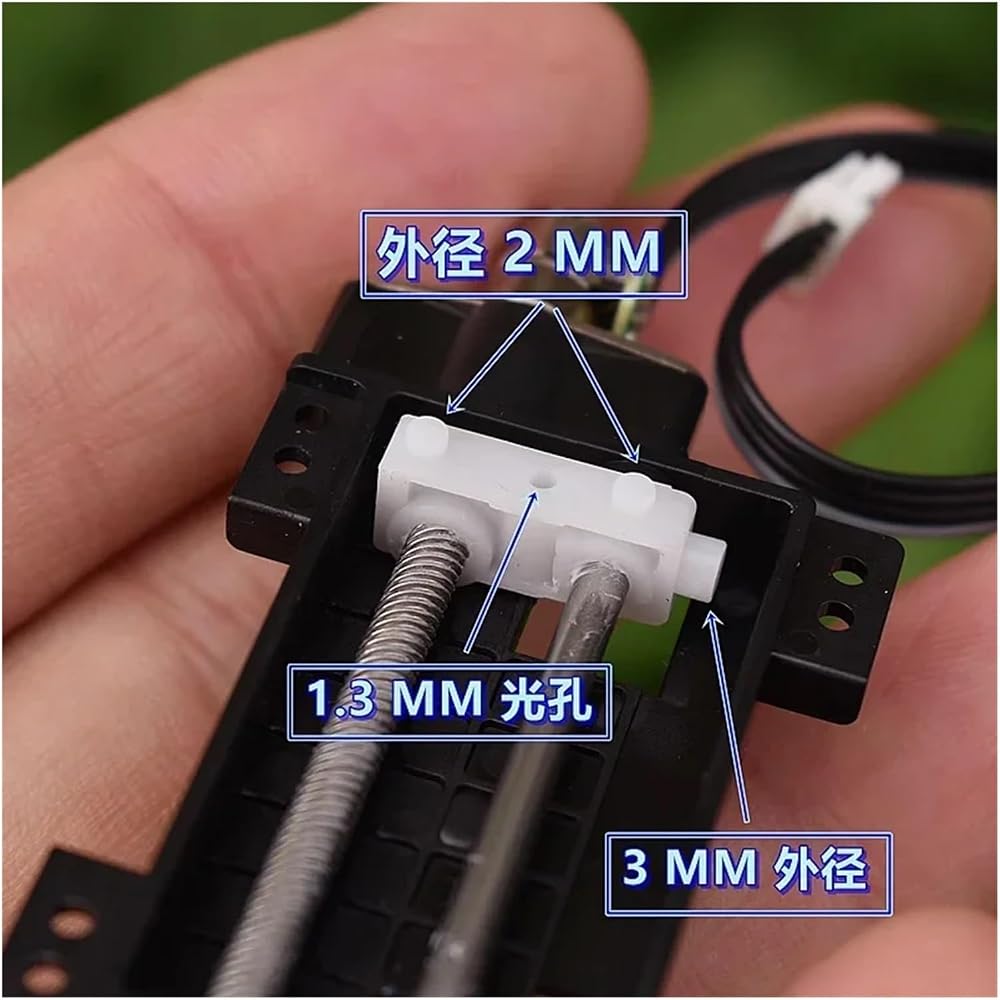

The outer diameter of the lead screw is approximately 2.7 mm, and the outer diameter of the metal rod (tube) is 2.5 mm. In this type of micro slide, this is a relatively sturdy lead screw, which makes the slide more stable and reliable when moving. The top of the lead screw is positioned using micro ball bearings.
1.Motor lead length: 100mm
2.Motor internal resistance: about 13.2 ohms
3.@5V short ciucuit current: 0.32A
4.Motor type: 2-phase 4-wire stepper motor
5.Motor weight: 9g
6.Slider stroke: about 30mm
7.One pulse signal stroke: approximately 0.0052 mm
8.5800 pulse signals are required to complete a 30 mm journey.
=========================
Package List:
Stepper Motor x 1PCS
