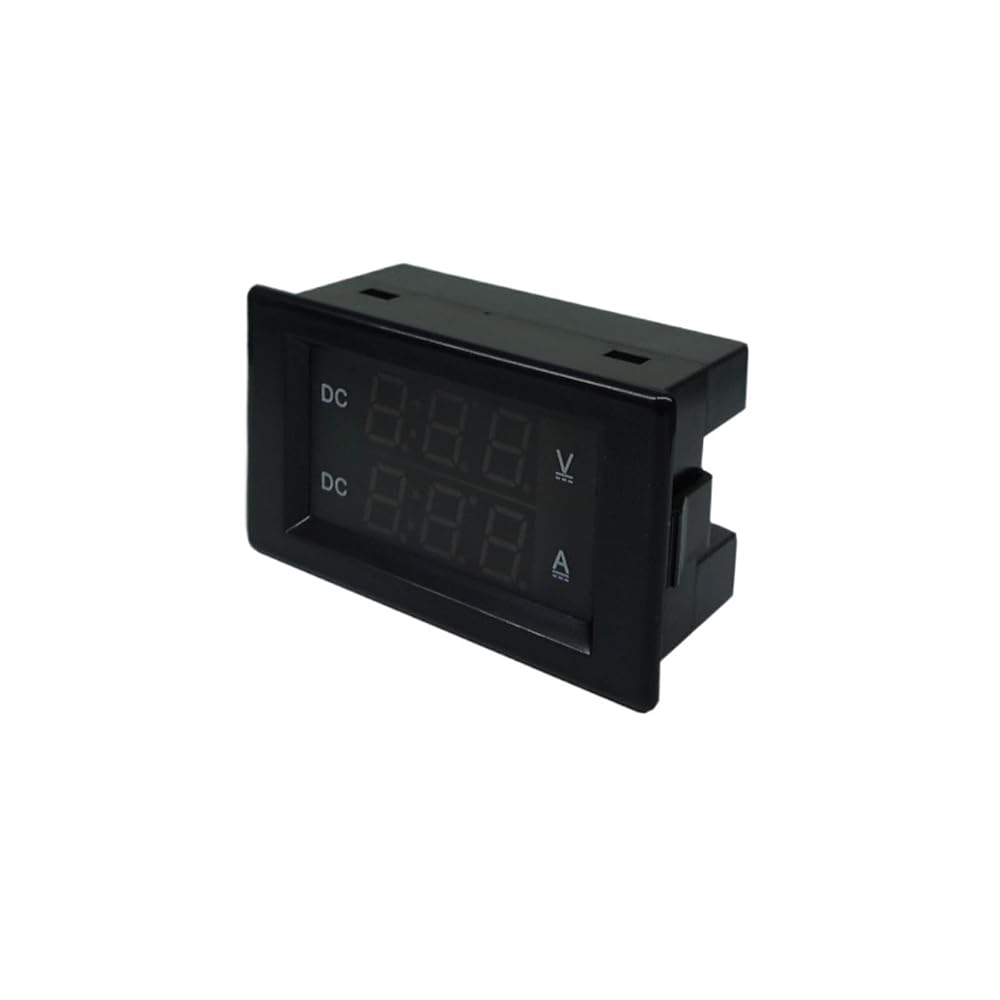

DC 100V 5A Voltage and Current Meter with Sensor LED Digital Voltmeter Ampere Meter DC Current Meter Voltage Tester Voltmeter
1. Current transformer is included and no need to purchase separately.
2. Please try not to install the meter and current transformer near high temperature and strong magnetic field
and large , otherwise the accuracy will be affected.
3. In order to obtain higher accuracy measurement, it is recommended to "warm up for 5 minutes" before measurement.

4. Since the float charge voltage of a 24V may exceed 30V after being fully charged, it is not recommended to use it directly.

It is 1.5 times or 2 times the actual test value.

Test voltage: DC5-100V
Test current: DC0-5A
Display Type: 0.39'' LED with red and green fonts
Measurement rate: 500mS/time
Measurement accuracy: 1% (±2 digits)
CT line length: 150mm
Terminal wire length: 150mm
Size: 70*40*30mm
Mounting hole: 68*38mm
1. Wide power supply range, with reverse polarity protection function.

Voltage Range: Other

: YB4835HVA

Size: 70*40*30cm
Working temperature: -10~50 degrees
Accuracy grade: 1% +/- 2 digits
Power supply: DC
Display Type: Numbers only
