مميزات خاصة

Because of a certain elastic, can make the load on the thread is more even, eliminate the screw and screw hole deviation between the pitch and tooth type, and can absorb vibration, thus increasing the screw thread connection strength and resistance to fatigue strength.
The locking type wire screw sleeve can lock the screw into the threaded hole, so that the screw is not loose when subjected to shock vibration, which is better than the normal locking device.
The hardness of the wire screw is higher than the screw, so it has little wear and tear in connection with screw, and can be used repeatedly.
Strengthen the connection strength and improve the connection condition, avoid sliding wire, wrong tooth phenomenon, and obtain excellent connection performance.
The thread size is standard, the thread is clear, and it will be more accurate for thread sliding tooth restoration.

وصف

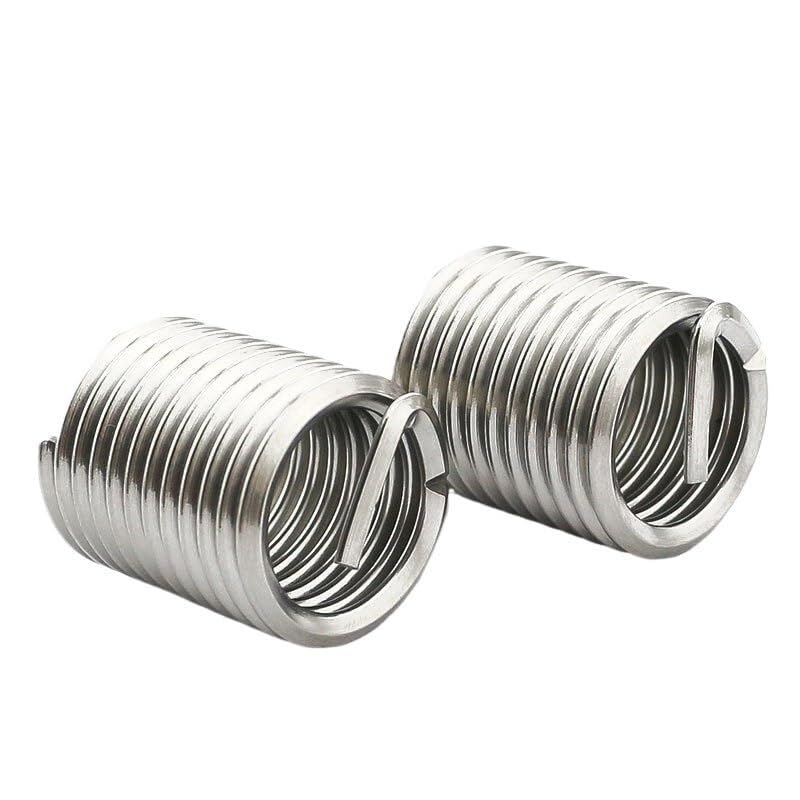

M5*0.8*1D ( Thread M5*0.8 ; Install size L = 1 D )
More Thread Insert sizes pls check (Wire Thread Insert)
Specifications:
Material: Stainless steel 304
Size: M5(inner diameter) x 0.8 (installed pitch) x 1D(installed length=1D*5mm=5mm)
Outer Diameter: 6.35mm(Min.); 6.60mm(Max.)
Suitable Drill Bit Diameter: 5.2mm
Package Includes:
20 x Threaded Inserts
