1.NOTE

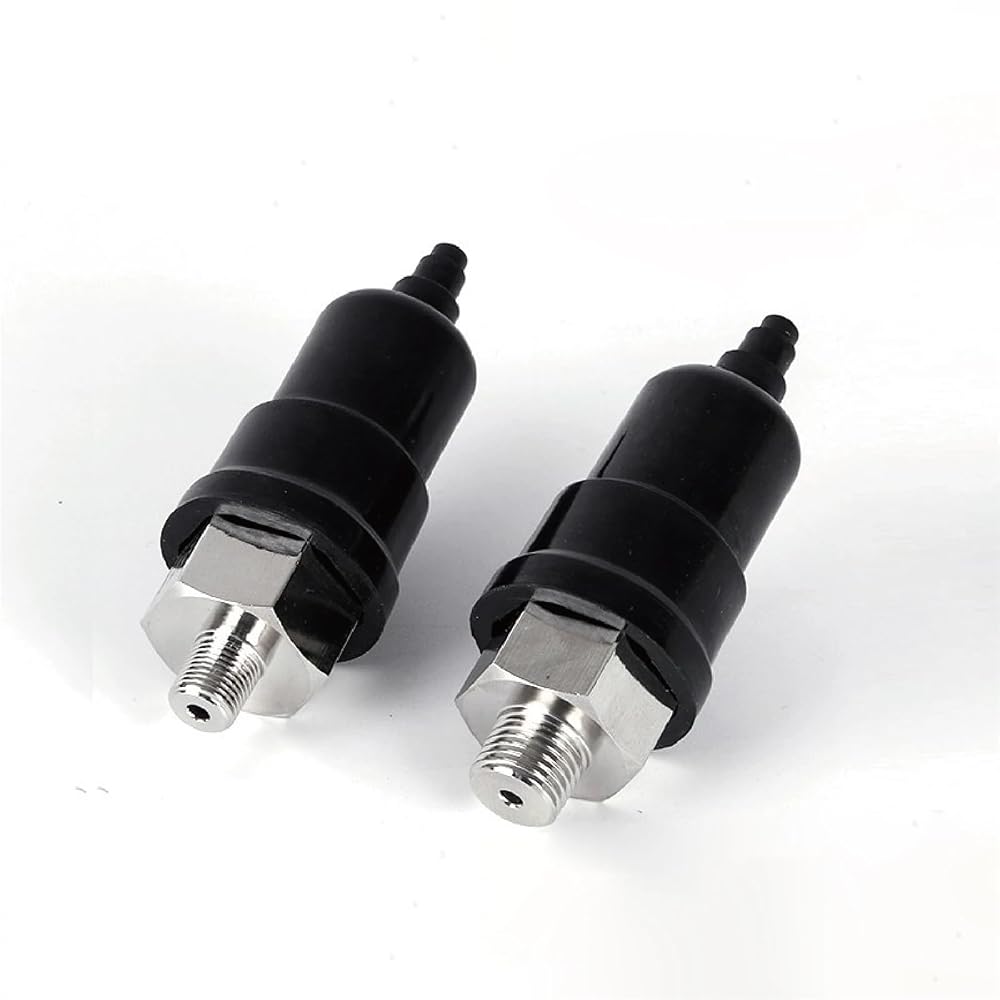

The pressure switch supports normally open (NO)and normally closed (NC)modes. Pressure adjustments can be made using the central hex key located between the terminal connections.
Default Configuration:
.Pressure Range: 0.02~0.7 MPa (adjustable)
.Connection Type: PT1/8, PT1/4 Internal and External Threads
.Working Medium: Compressed air
.Operating Voltage: AC110V, DC12V, DC24V
Optional Features:
.Custom thread specifications (e.g., G1/2, G1/4)
2.Parameters
Parameter
QPM11-NO
QPM11-NC
QPF-1
Medium
Compressed Air
Compressed Air
Compressed Air
Pressure Range
0.02~0.7 MPa
0.02~0.7 MPa
0.02~0.7 MPa
Ambient & Medium Temperature
560C
5~60°C
-5~60°C
Working Type
Adjustable Pressure
Adjustable Pressure
Adjustable Pressure
Installation Type
External Thread
External Thread
External Thread
Port Size
PT1/8 (Customizable threads available)
PT1/8 (Customizable threads available)
PT1/8 (Customizable threads available)
Working Voltage
AC 110V, AC 220V, DC 12V, DC 24V
AC 110V, AC 220V, DC 12V, DC 24V
AC 110V, AC 220V, DC 12V, DC 24V
Max Working Current
500mA
500mA
500mA
Max Power
100VA, 24VA
100VA, 24VA
100VA, 24VA
Insulation Voltage
1500V, 50V
1500V, 50V
1500V, 50V
Max Pulse Rate
200 cycles/min
200 cycles/min
200 cycles/min
Ingress Protection
IP54
IP54
IP54
3.Features
Customizable Pressure AdjustmentAdjust the pressure setting easily by turning the hex screw between the terminals. Counterclockwise rotation decreases pressure, while clockwise rotation increases it.
Flexible ConfigurationsChoose between Normally Open (NO) and Normally Closed (NC) based on system requirements.
Robust DesignBuilt with IP54 protection, ensuring resistance to dust and water splashes for reliable operation in various environments.
Wide Application RangeIdeal for CNC machines, medical equipment, automated production lines, and air source systems.
4.Applications
CNC Machines: Precision pressure control for enhanced automation in CNC operations.
Medical Equipment: Reliable pressure switching to ensure safety and efficiency in medical systems.
Automated Production Lines: Seamless pressure regulation for consistent and efficient production processes.
Air Source Equipment: Perfect for maintaining optimal pressure levels in air systems.
5.FAQs
1. How do I adjust the pressure setting on the QPM11 switch?
Simply turn the hex screw between the terminals. Rotate counterclockwise to decrease the pressure or clockwise to increase it.
2. Is this pressure switch compatible with liquids?
No, it is specifically designed for use with compressed air and is not suitable for other mediums.
3. Can the QPM11 be used outdoors?
Yes, with an IP54 rating, the switch is resistant to dust and water splashes, making it suitable for outdoor environments.
==========
Hign-concerned Chemical : None
Material : STAINLESS STEEL
Item Type : SWITCHES
Origin : Mainland China
Ambient & Medium Temperature : -5~60°C
Pressure Range : 0.02~0.7 MPa
Working Voltage : AC 110V, AC 220V, DC 12V, DC 24V
