1. [ADJUSTABLE SPEED] The motor allows for speed adjustments to meet various application requirements.
2. [FORWARD AND REVERSE] Can operate both forward and reverse for added flexibility in use.
3. [WIDE RANGE OF RATIOS] Features various reduction ratios ranging from 40 to 1000 for different torque and speed needs.
4. [HIGH TORQUE] Offers high torque ratings up to 45 Kg.cm for superior performance in industrial drive applications.
5. [EFFICIENT PERFORMANCE] Low power consumption with a maximum current of 0.85A ensures energy efficiency during operation.

Specification:

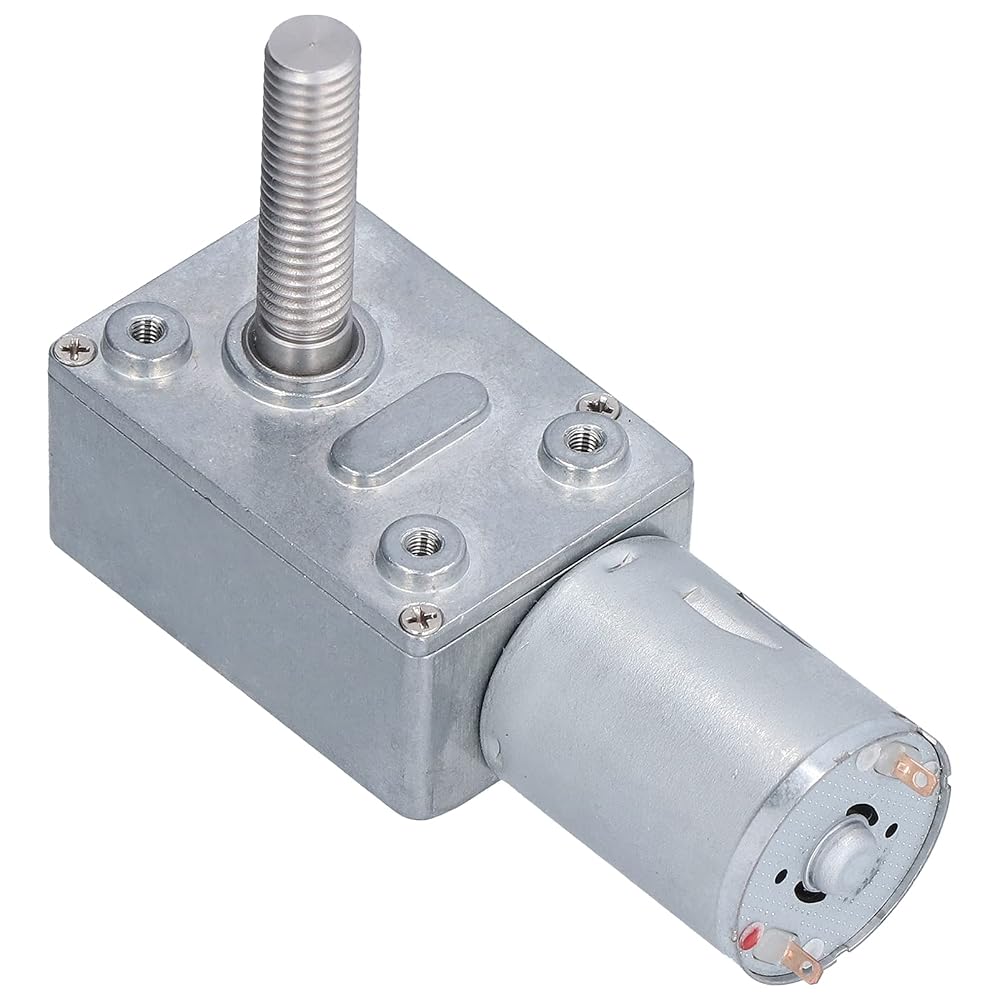

Item Type: Encoder Geared Motor
Material: Zinc Alloy, Copper, Carbon, Stainless Steel
Purpose: Industrial Drive Device
Operating Voltage: DC 24V
Output Shaft Size (Diameter x Length): Approx. 8 x 33mm / 0.31 x 1.30in
Shaft Type: M8 Threaded Shaft
Whether to Adjust the Speed: Adjustable Speed
Whether Forward and Reverse: Can Be Forward and Reverse
Parameters Table:
Reduction Ratio (Change Ratio): 40/65/90/150/200/260/340/600/1000
No-load Current (MA): ≤40 / ≤40 / ≤40 / ≤40 / ≤40 / ≤40 / ≤40 / ≤40 / ≤40
No-load Speed (rpm): 150/90/66/40/30/23/18/10/6
Rated Torsion (kg.cm): 0.2 / 0.5 / 0.7 / 2 / 5.3 / 6.7 / 9 / 15.9 / 26.5
Rated Speed (rpm): 120/70/51/30/22/18/15 / 7.5 / 4
Rated Current (A): ≤0.3 / ≤0.3 / ≤0.3 / ≤0.3 / ≤0.3 / ≤0.3 / ≤0.3 / ≤0.3 / ≤0.3
Maximum Torsion (Kg.cm): 0.9 / 1.6 / 2 / 7.5 / 10/13/18/30/45
Stall Current (A): 0.85 / 0.85 / 0.85 / 0.85 / 0.85 / 0.85 / 0.85 / 0.85 / 0.85
Reduction Ratio (Change Ratio)
40
65
90
150
200
260
340
600
1000
No-load Current (MA) ≤40 ≤40 ≤40 ≤40 ≤40 ≤40 ≤40 ≤40 ≤40
No-load Speed (rpm)150 90 66 40 30 23 18 10 6
Rated Torsion (kg.cm) 0.2 0.5 0.7 2 5.3 6.7 9 15.9 26.5
Rated Speed (rpm) 120 70 51 30 22 18 15 7.5 4
Rated Current (A) ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3
Maximum Torsion (Kg.cm) 0.91.6 2 7.5 10 13 18 30 45
Stall Current (A) 0.85 0.85 0.85 0.85 0.85 0.85 0.85 0.85 0.85

packing list:
1 x Encoder Geared Motor

Notice:
1. Do not place the product in an environment that is too corrosive, humid and high temperature!
2. Please supply power according to the operating voltage, using other voltages may cause fire and product damage.
