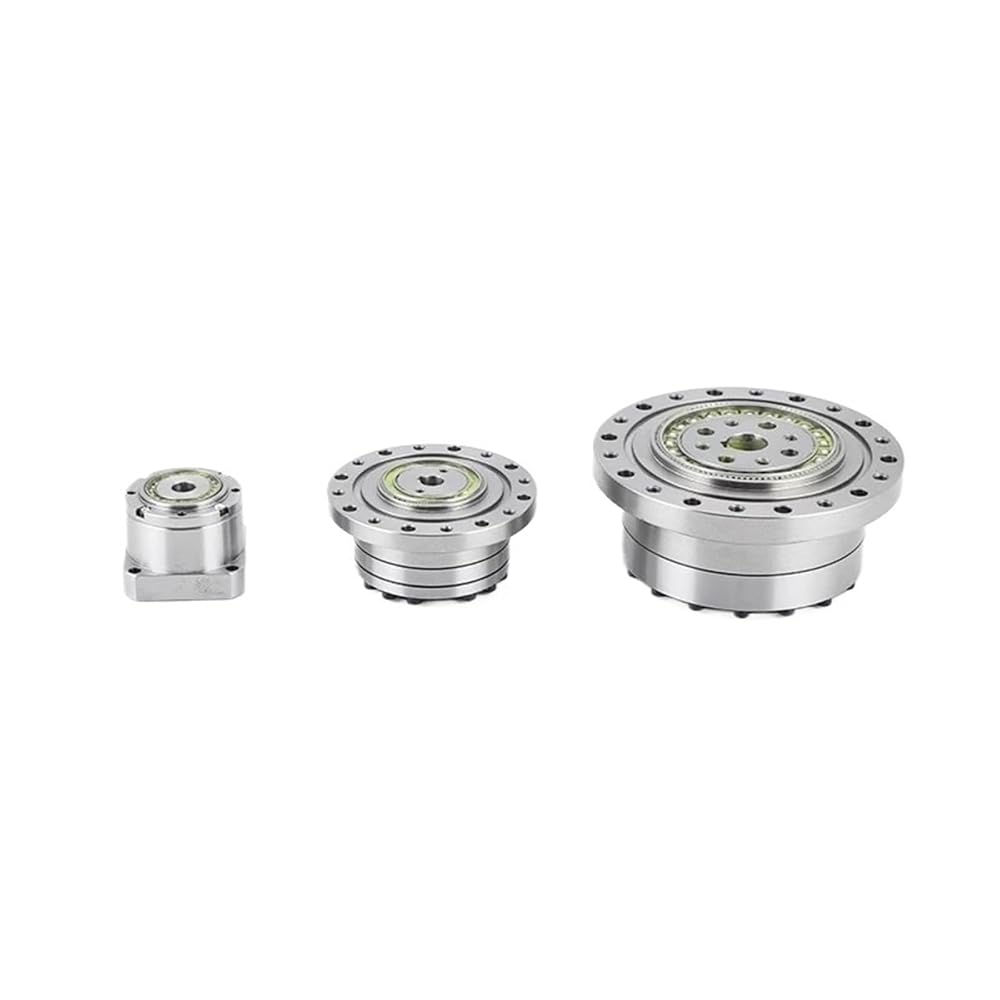

Note Different product models have different appearance size and weight parameters
Reduction ratio: 50
Rated Tq when inputting 2000r/min: 5.4 Nm (0.55kgfm)
Allowable peak Tq at start and stop: 18 Nm (1.8kgfm)
Maximum allowable average load Tq: 6.9 Nm (0.7kgfm)
Instantaneous maximum Tq allowed: 35 Nm (3.6kgfm)
Allowable maximum output speed: 8500 r/min
Allowable average input speed: 3500 r/min
Backlash: 20 Aresec
Reduction ratio: 80
Rated Tq when inputting 2000r/min: 7.8 Nm (0.8kgfm)
Allowable peak Tq at start and stop: 23 Nm (2.4kgfm)
Maximum allowable average load Tq: 11 Nm (1.1kgfm)
Instantaneous maximum Tq allowed: 47 Nm (4.8kgfm)
Allowable maximum output speed: 8500 r/min
Allowable average input speed: 3500 r/min
Backlash: 20 Aresec
Reduction ratio: 100
Rated Tq when inputting 2000r/min: 7.8 Nm (0.8kgfm)
Allowable peak Tq at start and stop: 28 Nm (2.9kgfm)
Maximum allowable average load Tq: 11 Nm (1.1kgfm)
Instantaneous maximum Tq allowed: 54 Nm (5.5kgfm)
Allowable maximum output speed: 8500 r/min
Allowable average input speed: 3500 r/min
Backlash: 20 Aresec
Reduction ratio: 120
Rated Tq when inputting 2000r/min: 7.8 Nm (0.8kgfm)
Allowable peak Tq at start and stop: 28 Nm (2.9kgfm)
Maximum allowable average load Tq: 11 Nm (1.1kgfm)
Instantaneous maximum Tq allowed: 54 Nm (5.5kgfm)
Allowable maximum output speed: 8500 r/min
Allowable average input speed: 3500 r/min
Backlash: 20 Aresec
Note: the product does not include lubricant.
