Introduction:
- Multi-Functions:1. Application as indicators; 2. Outside measurement; 3. Inside measurement; 4. Depth measurement; 5. Step measurement;
- While measuring the radius of arc,measuring it using "R" gages commonly,but application range of "R" gages is limited,because it only measure standard radius of arc,and getting data from comparison measurement,so can't getting accurate data of workpiece. apply for measurement radius of arc and plastic mould manufacturing;

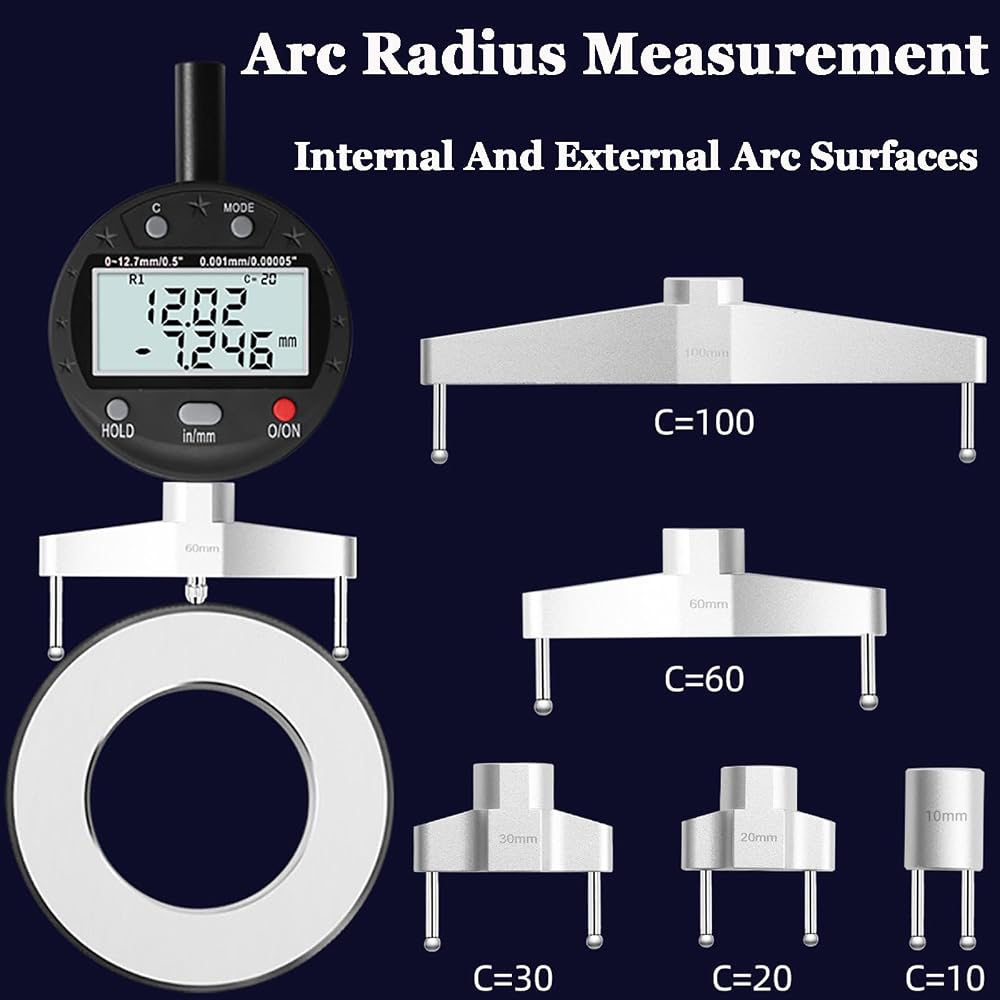

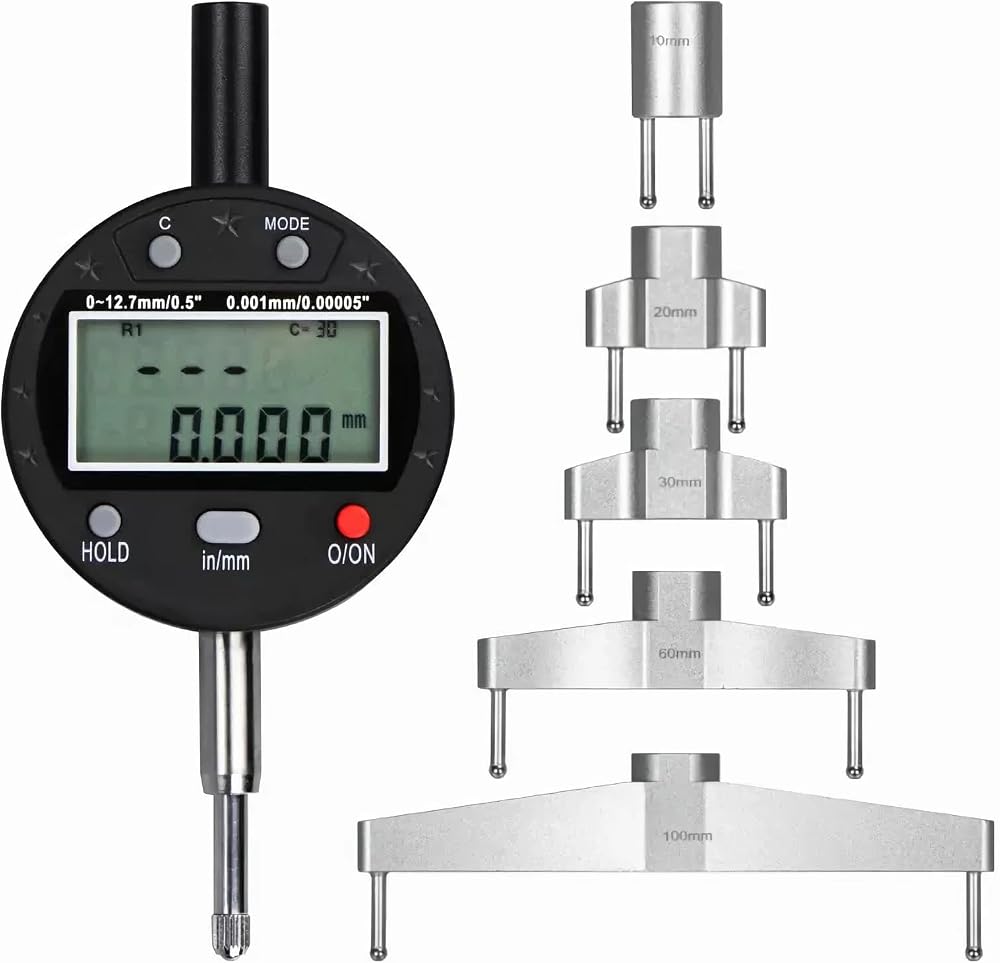

- Multi-indicators have five different length measuring jaws: 10mm/20mm/30mm/60mm/100mm for choose corresponding measuring jaws,while measuring arc face, Switchable between mm and inch.

Specification:

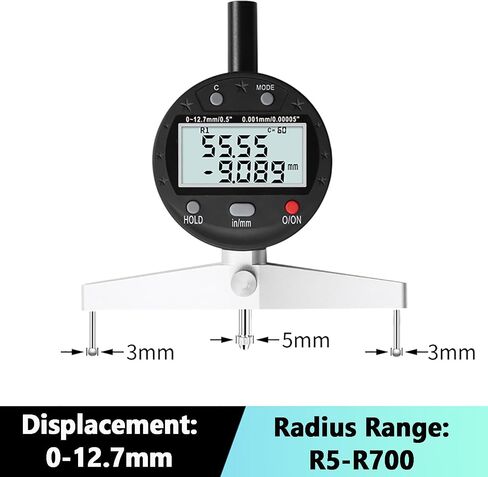

Linear range: 0-12.7mm (0 - 0.5 inch)
Radius Range: 5-700mm (0.2 - 27.5 inch)
Resolution: 0.001mm (0.00005 inch)
Display Range: length displacement 0-13mm
Linear deviation: S≤0.02mm

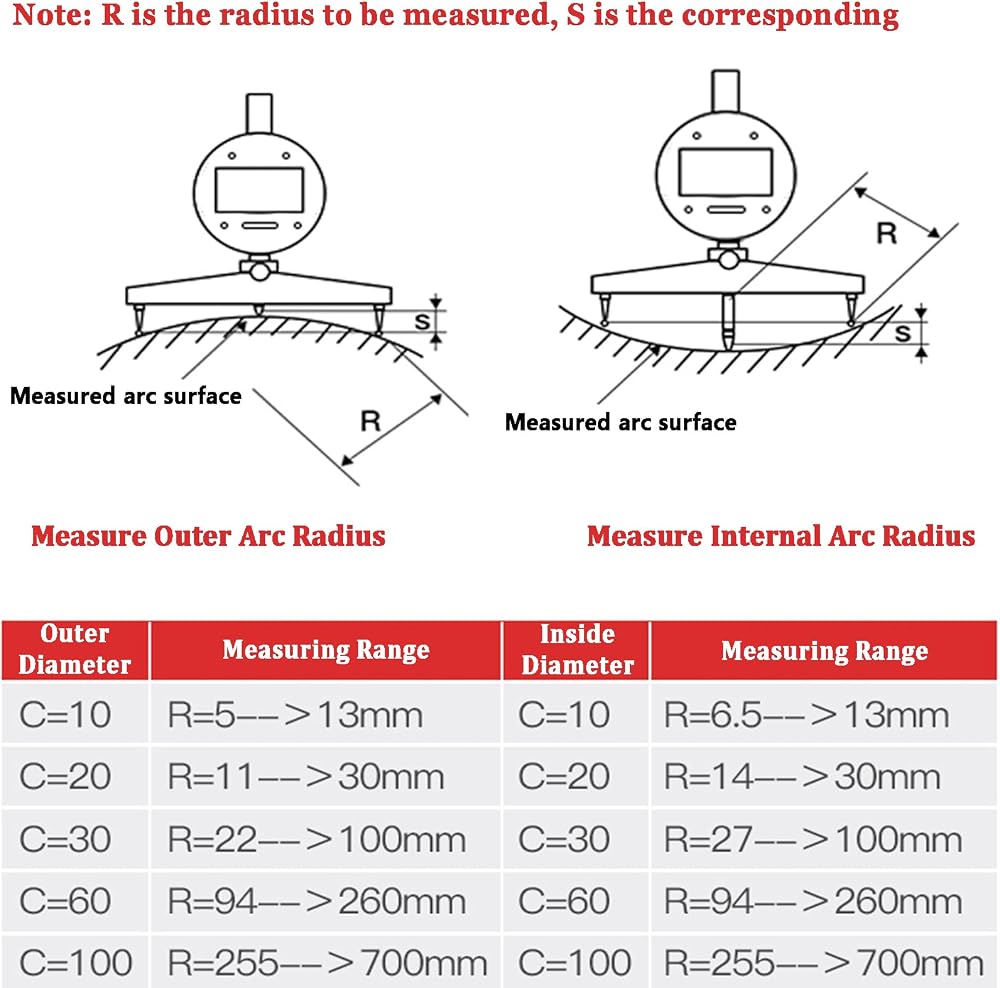

Radius deviation: R≤0.01*R/S
Workable temp:0±40℃
Humidity:comparatively≤80％

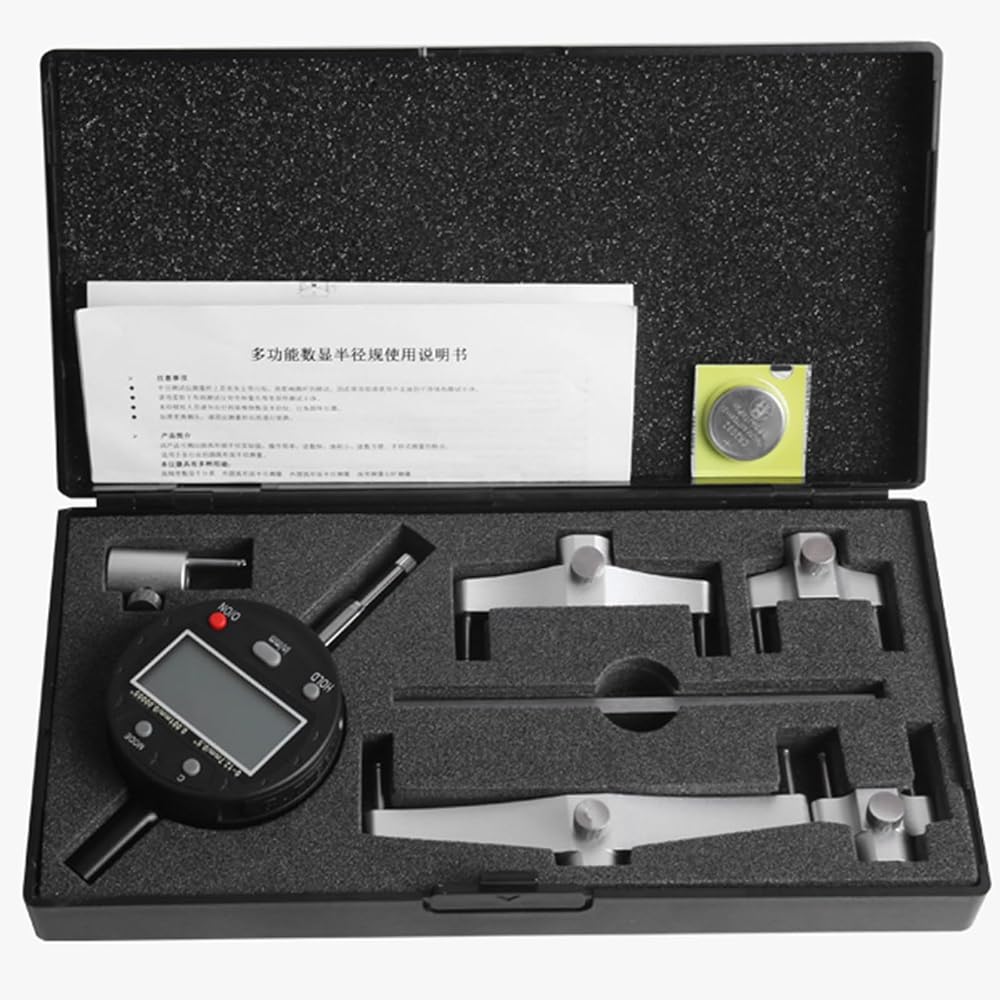

What You Will Get?
1* Radius Gauge Set
1* User Manual

ATTENTION: the battery is NOT included in the package due to air transport regulation.
