مميزات خاصة

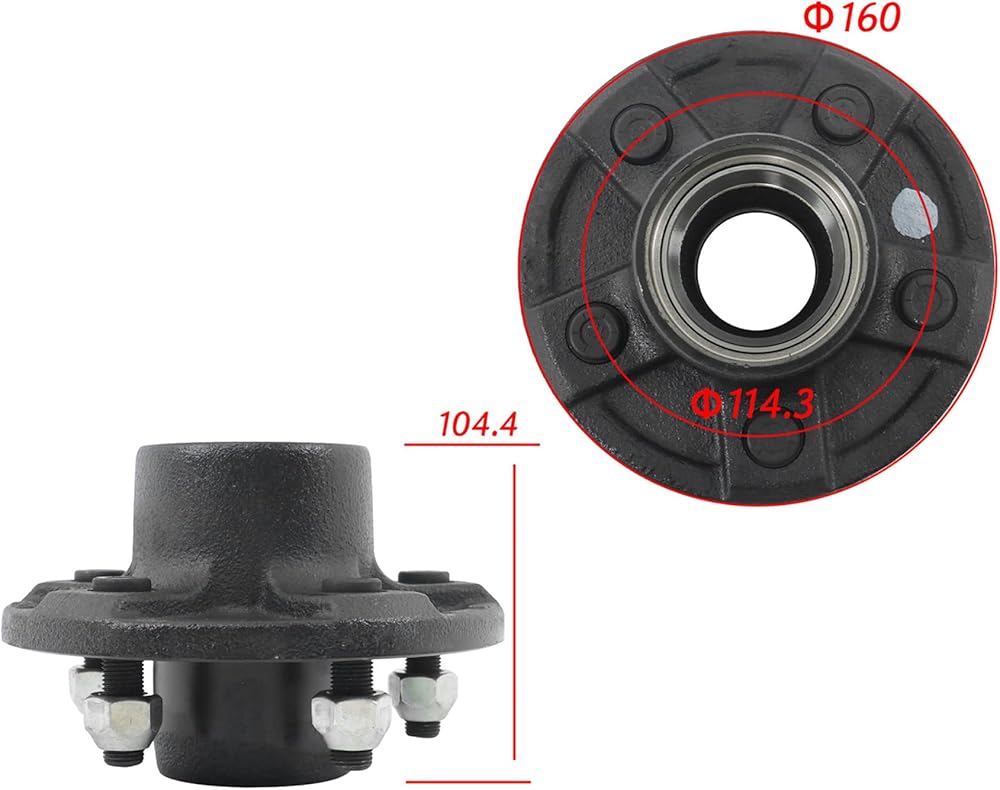

Size- Total length is 8.25 inch; The diameter at the bottom of the spindle is 2 inch; The length from the bottom of the spindle to the flange is 3.37 inch
Specifications- Load capacity: 3500 lbs; Bolt pattern: 5 on 4.5 inch; Installation type: Direct replacement; Material: Steel
Installation type- The stud spacing of the hub is 4.5 inch, precisely manufactured according to the size, and can be installed accurately

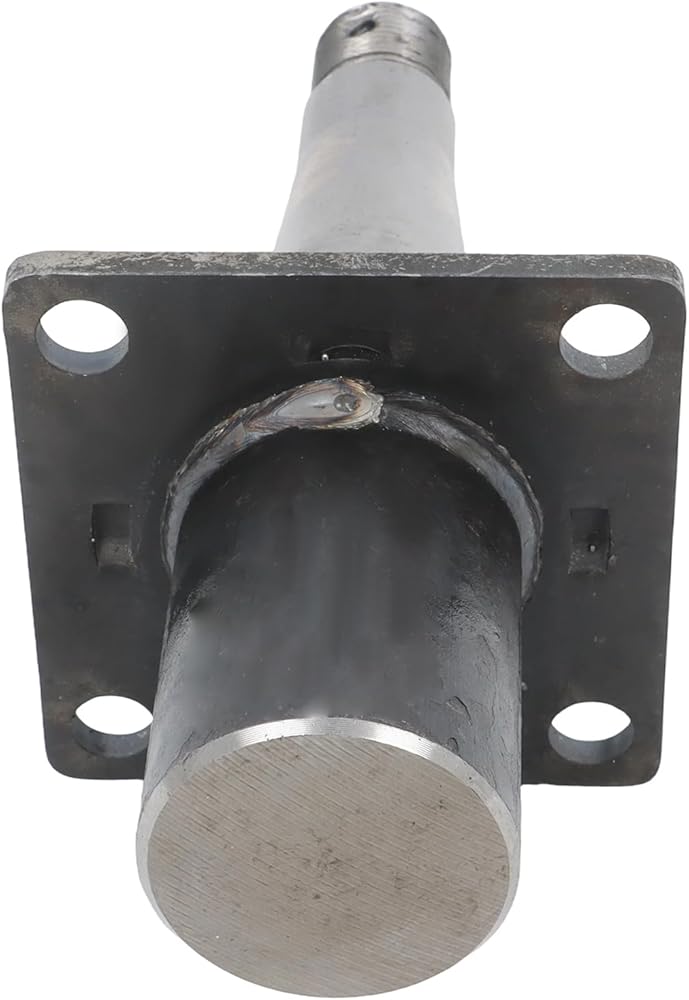

Brake flange- The 4-hole brake flange has a simple structure, distributes force evenly and stably
Material- Manufactured with high-strength steel, it has high load-bearing capacity and is safe and reliable

وصف

Application:
Compatible with standard 3500-pounds disc/rim brake systems

Spindle Specifications:
Overall length: 8.25 inch
Spindle diameter: 2 inch
Bottom of the spindle to the flange: 3.37 inch
4-hole brake flange (as shown in the figure)

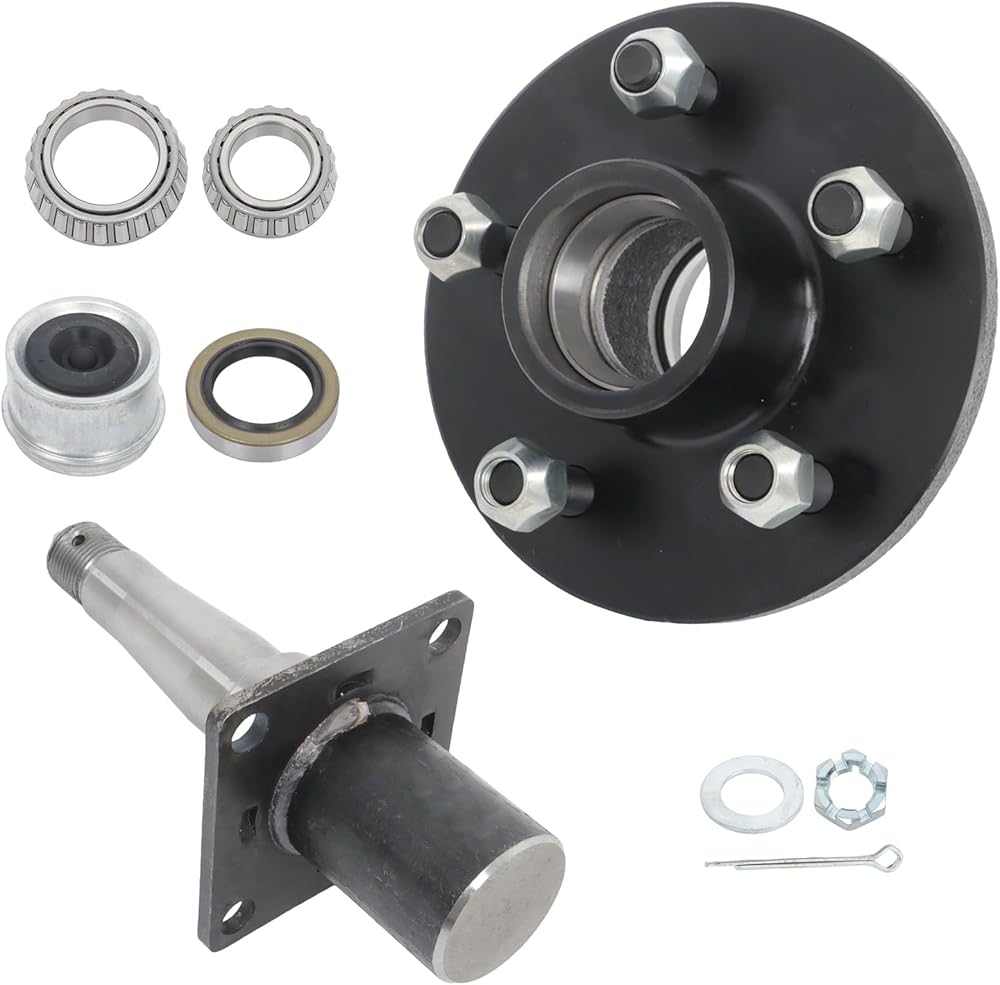

Package Includes:
1 x 5 on 4.5 inch trailer hub
1 x Brake flange #84 spindle
1 x Inner/Outer bearing L68149/L68111
1 x Inner/Outer race L44649/L44610
1 x I.D 1.72 inch and O.D 2.56 inch grease seal
1 x Rubber stopper dust cap
5 x 1/2 inch -20 nuts
1 x Cotter pin
1 x Spindle nut
1 x Spindle washer

Rubber Stopper Dust Cap:
Double sealing design, capable of adapting to harsh working conditions, ensures excellent sealing performance
