مميزات خاصة

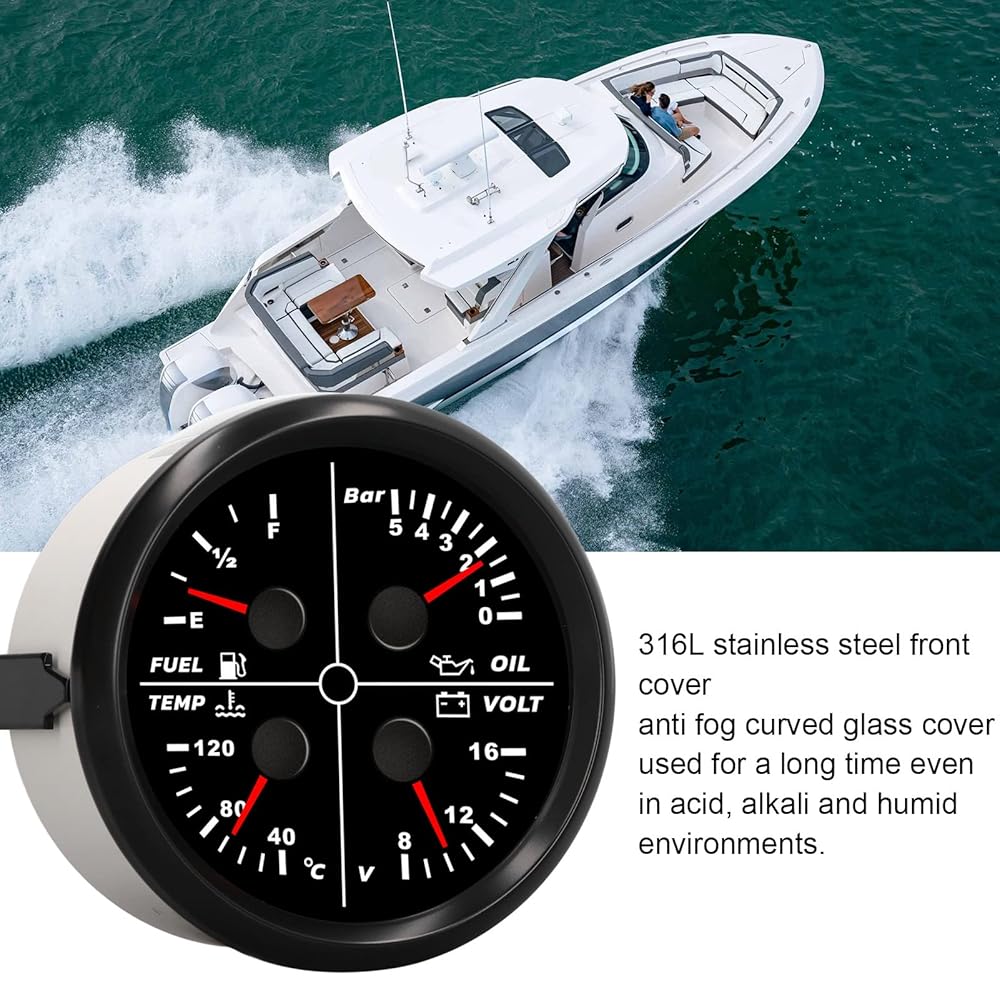

Materials: Constructed from 316L stainless steel front cover and anti fog curved glass cover, can be used for a long time even in acid, alkali and humid environments. Anti fog, IP67 waterproof and dustproof, very suitable for harsh sea environment.

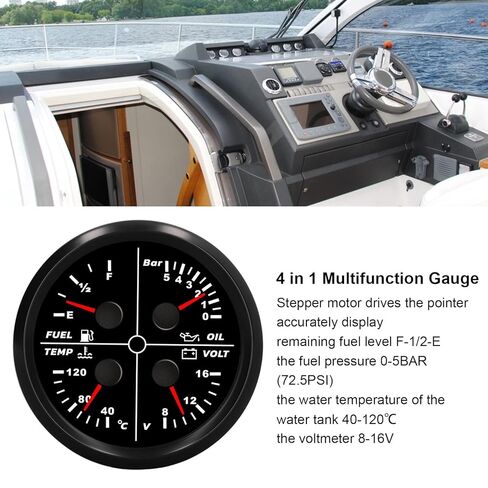

Accurate Display: Stepper motor drives the pointer to accurately display the remaining fuel level F‑1/2‑E, the fuel pressure 0‑5BAR (72.5PSI), the water temperature of the water tank 40‑120℃ and the voltmeter 8‑16V, can be displayed simultaneously.

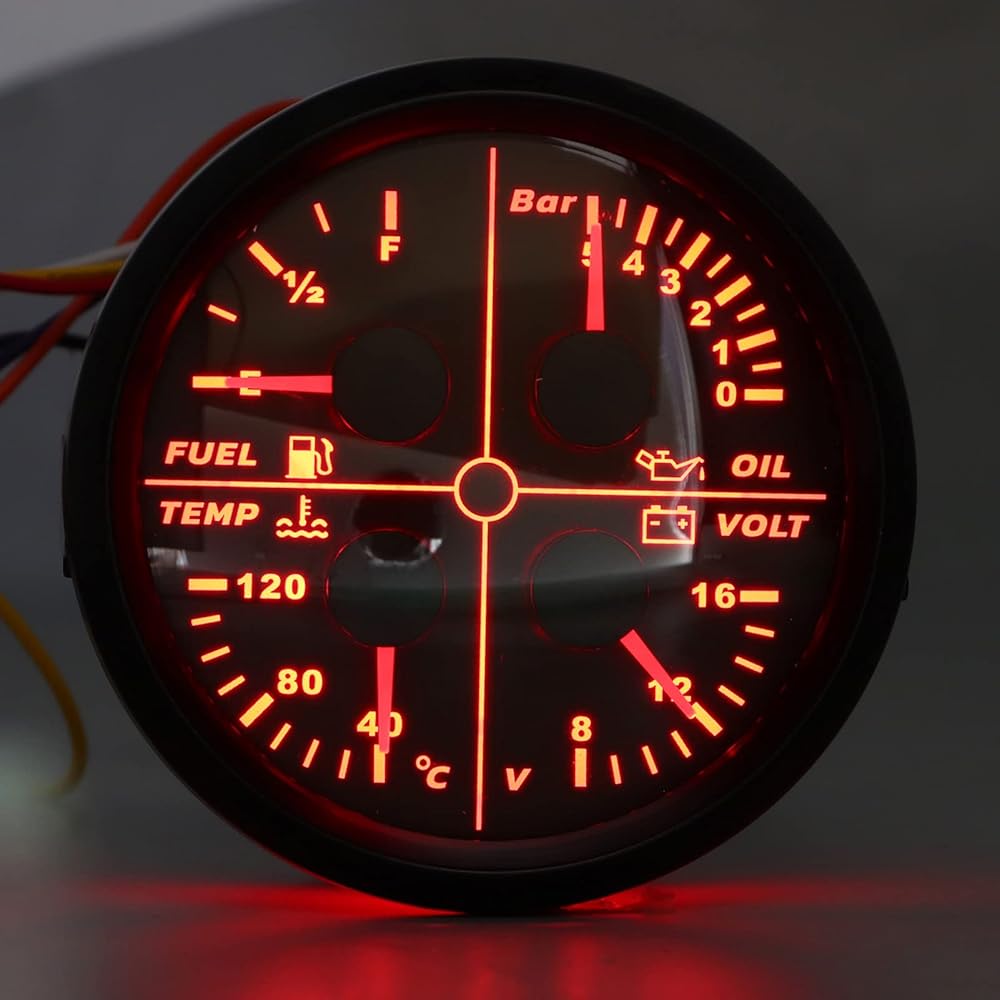

Red Pointer Indication: The red pointer design has the characteristics of high indication accuracy, good repeatability, strong versatility, reliability and stability and easy to use. Comes with red backlight for easy night driving.
Excellent Performance: 4 in 1 multifunction meter adopts ultra wide working voltage design, the long term working voltage is 8‑16V, and the maximum can reach 36V. With the advantages of low power consumption, long life, high accuracy and short start up time.

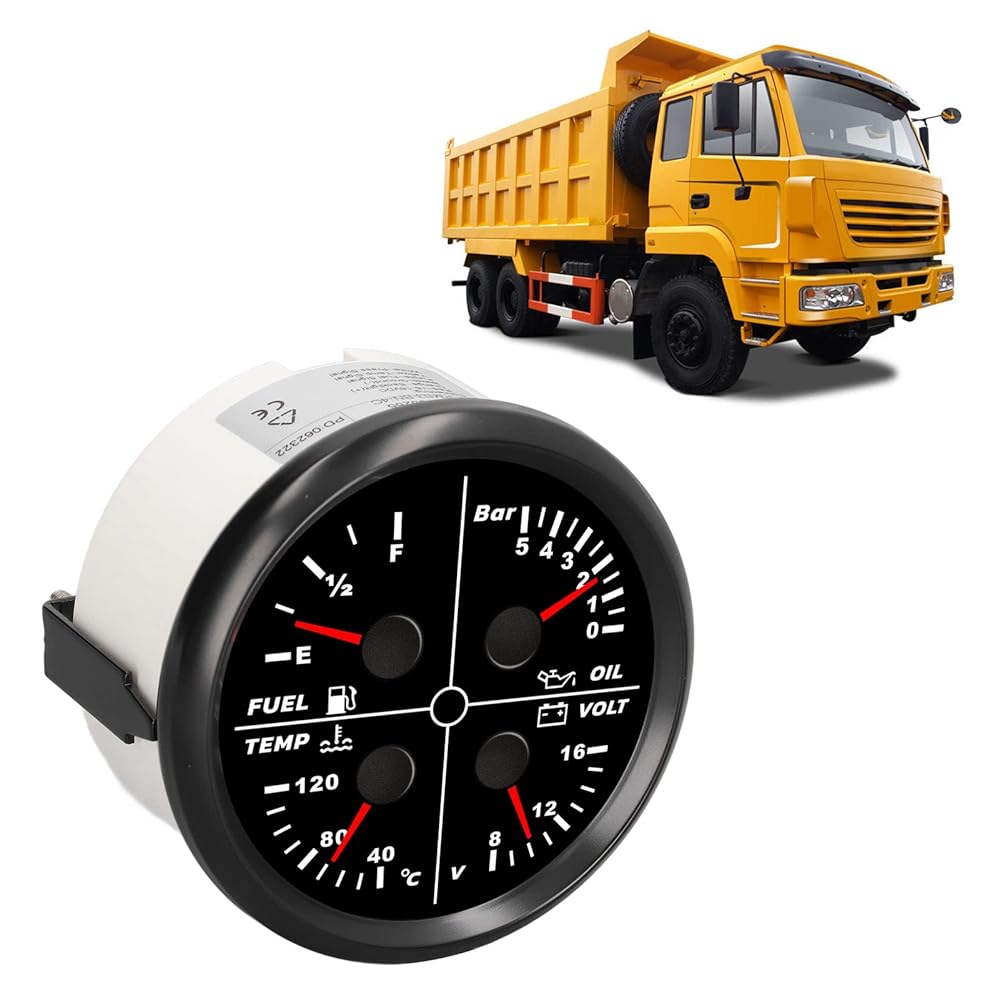

Wide Uses: The connection harness adopts a snap design for firm connection, making the gauge work even under strong vibration, and can be used for engines, generator sets, ships, construction machinery, agricultural machinery, various vehicle modifications, and so on.

وصف

Item Type: 4 in 1 Gauge
Material: 316L Stainless Steel Bezel, Anti Fog Glass, PC
Function Display: Fuel level, oil pressure, water temperature, voltage
Installation Diameter: Approx. 85mm / 3-3/8in
Fuel Level Gauge Indication Range: F-1/2-E, input 0-190ohm
Oil Pressure Gauge Indication Range: 0-5Bar /72PSI, input 10-184ohm
Water Temperature Gauge Indication Range: 40-120℃, model input 310-23ohm
Grade: IP67, the whole body is completely waterproof, can work at 1m underwater; excellent anti fog function
Input Signal: Stepper Motor
Backlight Color: Red
Working Voltage: 8-16VDC
Working Current: ≤120mA
Operating Temperature: -30℃ to +75℃
Storage Temperature: -40℃ to +85℃

How to Use:
Step 1: Drill a 85mm diameter round hole in your central control or other pre‑installation location.
Step 2: Put the meter into the opened round hole.

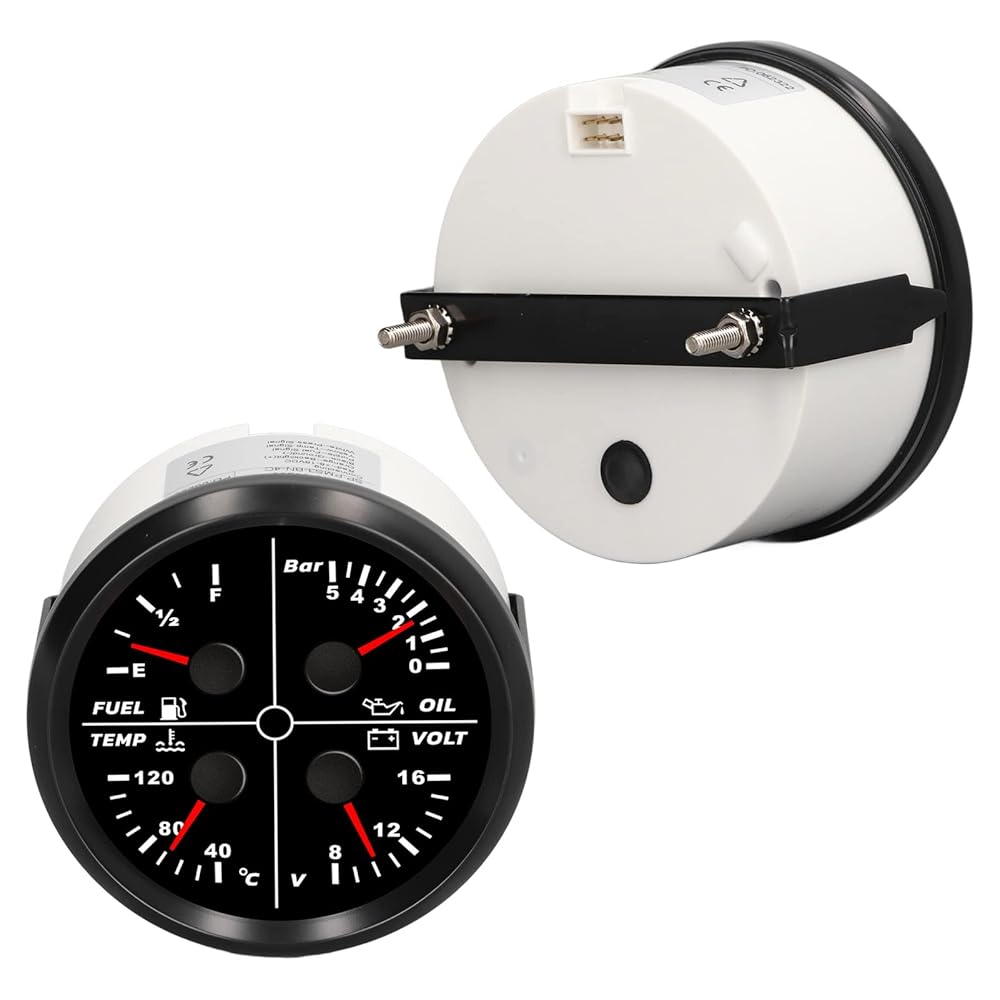

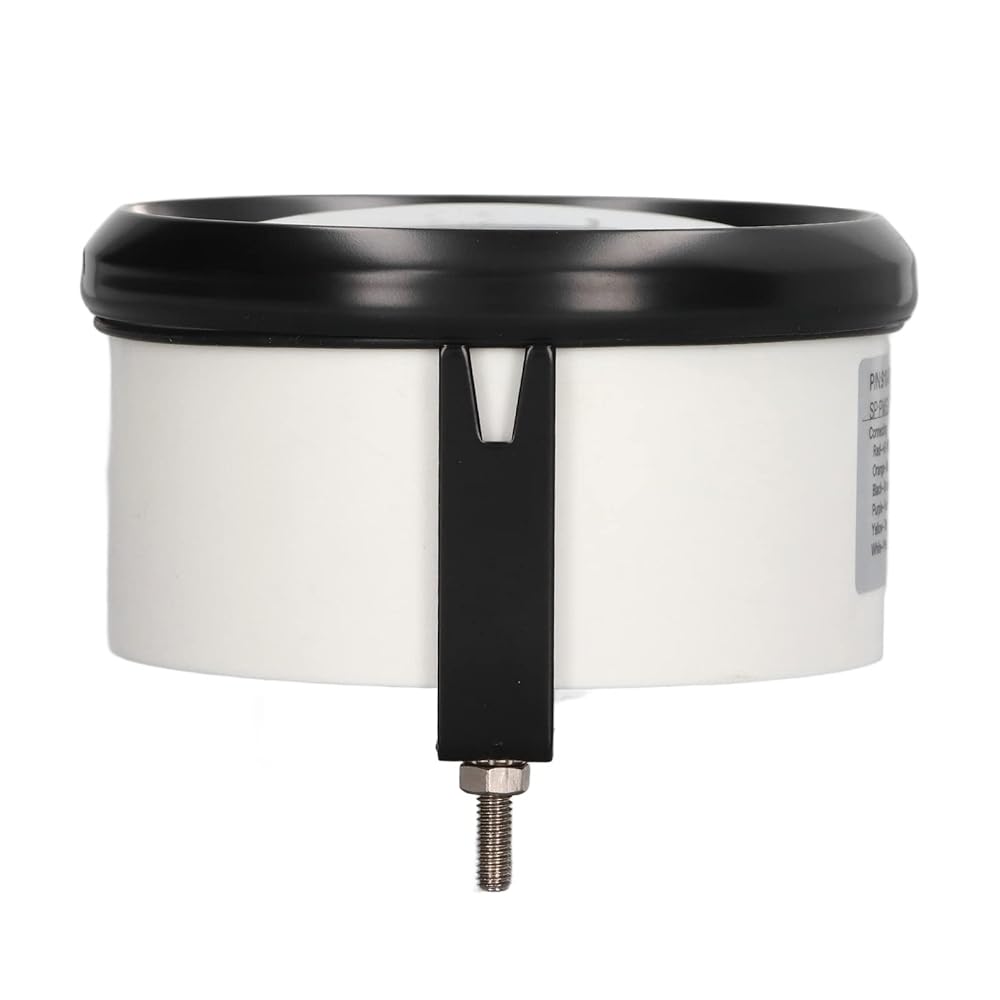

Step 3: Match the screw holes of the bracket to the screws on the back of the meter, then tighten the screws, and clamp the panel with the bracket and the bezel.
Step 4: Insert the power wiring harness directly into the back wiring port of the instrument, and then connect the corresponding sensor and wiring harness according to the distribution instructions to turn on the power supply.

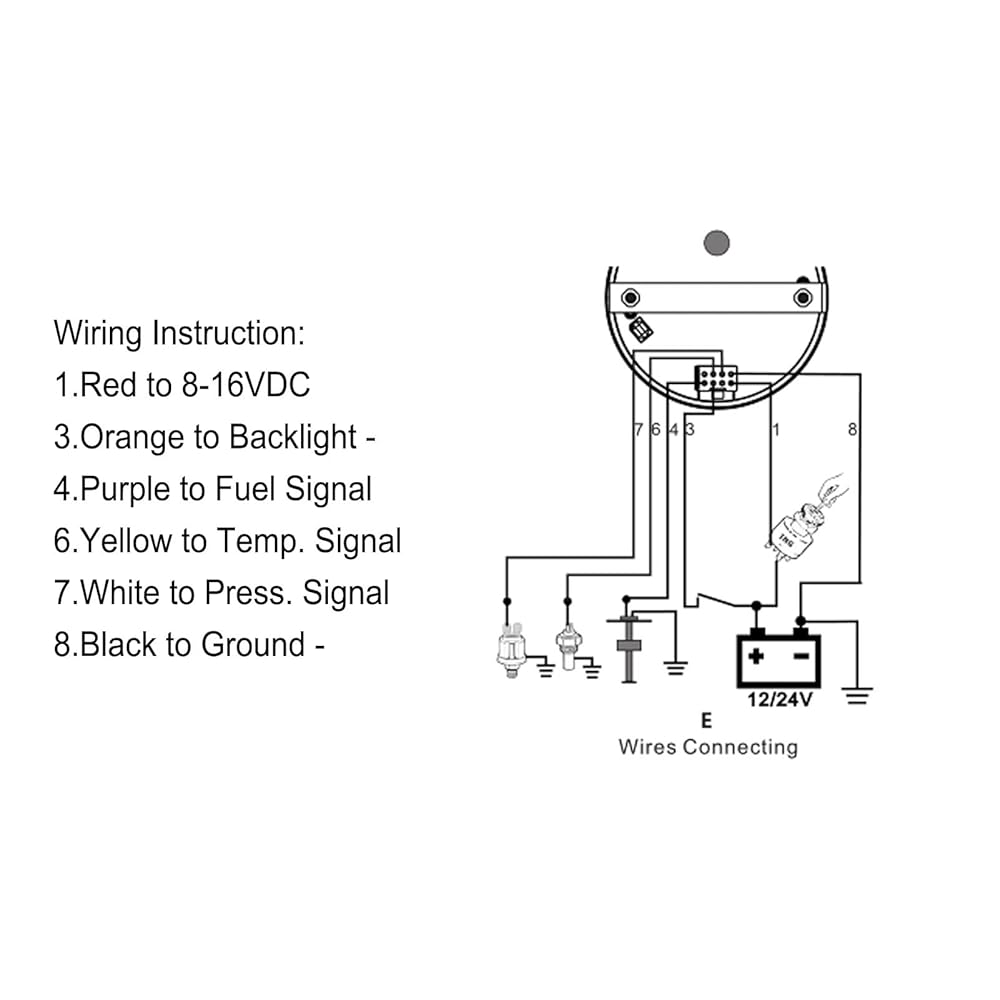

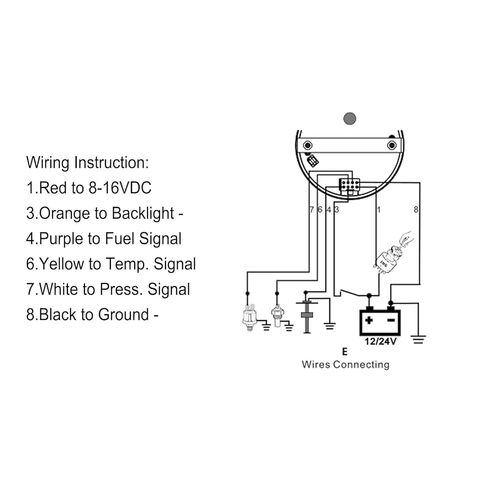

Wiring Instruction:
Red to 8‑16VDC
Orange to Backlight ‑
Purple to Fuel Signal
Yellow to Temp. Signal
White to Press. Signal
Black to Ground ‑

packing list:
1 x 4 in 1 Gauge
1 x Harness
1 x Manual
