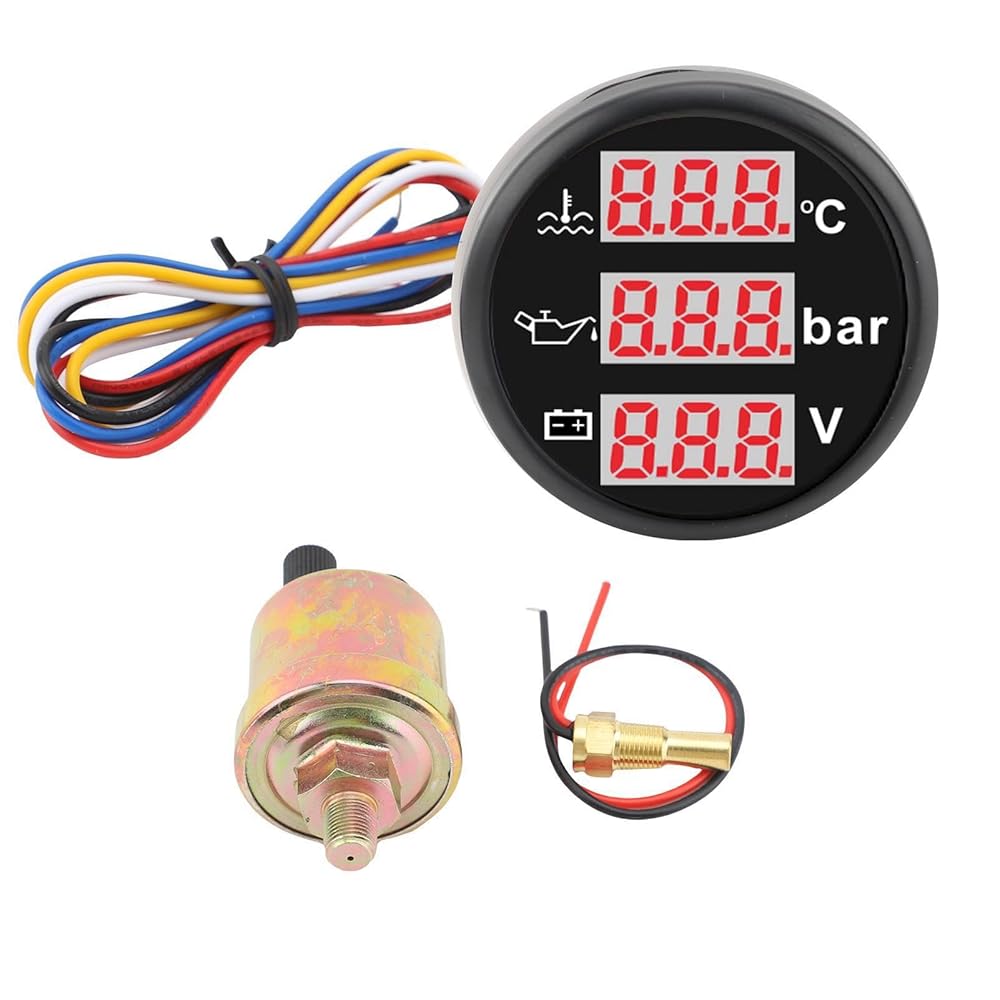

[3 in 1 Instrument] Using as an engine coolant temperature meter, an engine oil pressure meter, and a battery voltage indicator. With a digital display, it provides clear readings. The coolant temperature measurement range is 0-120℃, and the oil pressure range is 0-10Bar
[Safe Alert System] This instrument is equipped with an alert function to ensure security during driving or boating. The high temperature alert is triggered at ≥95℃, and the low oil pressure alert is activated at ≤0.8Bar
[Wide Compatibility] The engine meter has an outer diameter of 2-1/16 inch (52.2mm). Its compact size makes it suitable for installation on cars, RVs, trucks, boats, yachts, and motorcycles, ensuring strong compatibility
[Professional Sensor] This instrument kit includes a NPT 1/8in water temperature sensor (1600-22Ω range) and a NPT 1/8in oil pressure sensor (10-184Ω). It boasts IP67 water proof rating and 5G shockproof rating, ensuring reliability during off road adventures or daily commutes
[Convenient and Practical] This 3 in 1 instrument kit is easy to connect and use, combining stylish design with intelligent safe features. It is a practical tool for upgrading your dashboard and detecting engine performance

Specification:
Item Type: Car Boat Instrument

Digital Display Color: Red

Housing Material: ABS

Meter Diameter: 52.2mm (2 1/16 inch)

Measurement Content: Water Temperature + Oil Pressure + Voltage

Coolant Temperature Measurement Range: 0-120℃

Engine Oil Pressure Measurement Range: 0-10Bar

Water Temperature Sensor Thread Size: NPT 1/8in

Pressure Sensor Thread Size: NPT 1/8in

Working Current: ≤60mA

Working Temperature: -30℃-80℃

Storage Temperature: -40℃-85℃

Water Proof Level: IP67

Shockproof Level: 5G

Application: Cars, RVs, Trucks, Boats, Yachts, Motorcycles

Wiring Method:

1. Black Wire: Power Negative(-)

2. Red Wire: DC Voltage

3. Blue Wire: NC Not Connected

4. Yellow Wire: Water Temperature Signal Wire

5. White Wire: Oil Pressure Signal Wire

How to Use:

Follow the instructions in the manual

PackageList:

1 x 3 in 1 Instrument

1 x Water Temperature Sensor

1 x Pressure Sensor

1 x English User Manual
