Gauges
Product Description:
With high speed stepper motor ,give you a quick response.

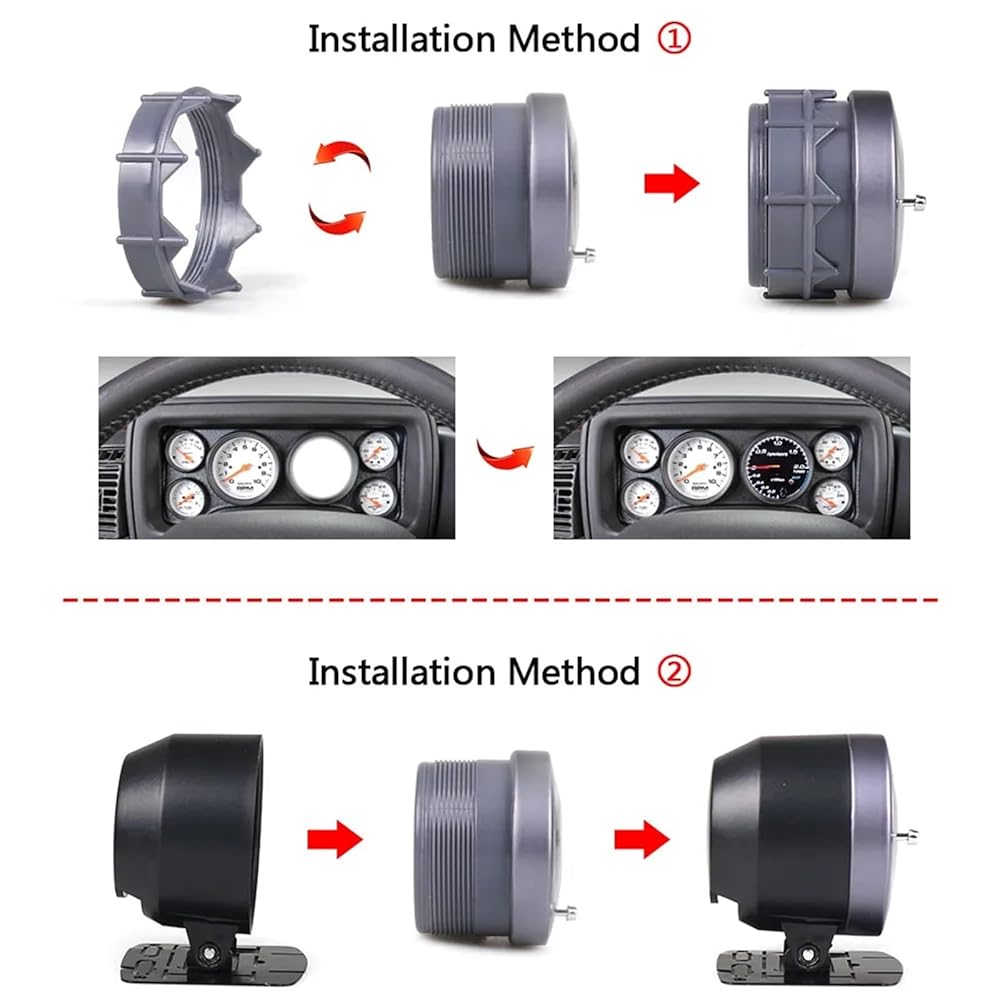

Two installation methods according to your preference.
Numbers and pointer clearly show
lighting on the dial for easy reading in the darkness.
High sensitivity and easy operation.
Note:Easy Installation
Professional installation is Highly Recommended.
Specifications:
Color: Black Face / White Light & Amber Light
PowerDC 12V Professional
Diameter25"/60mm.
Unit: Kpa
Measurement range: 0~2 (100kpa)
Universal fit for: 12Volt Cars

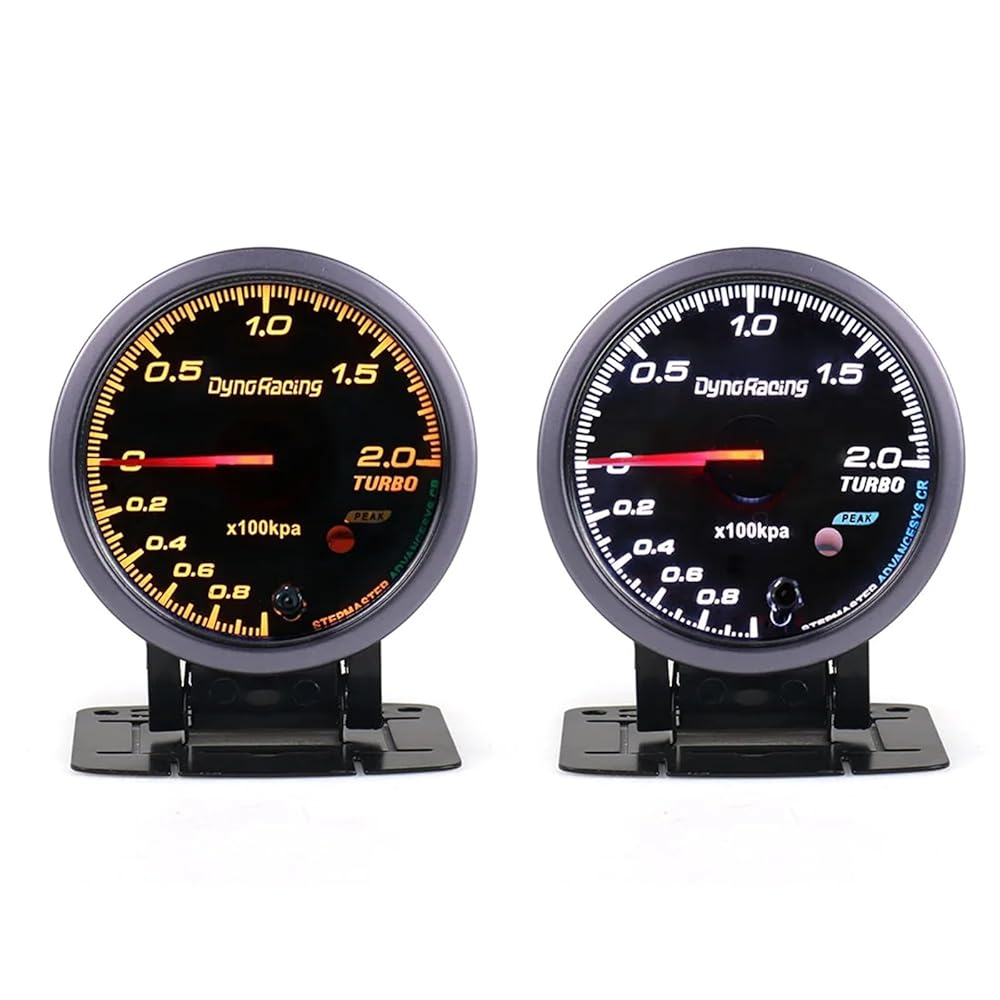

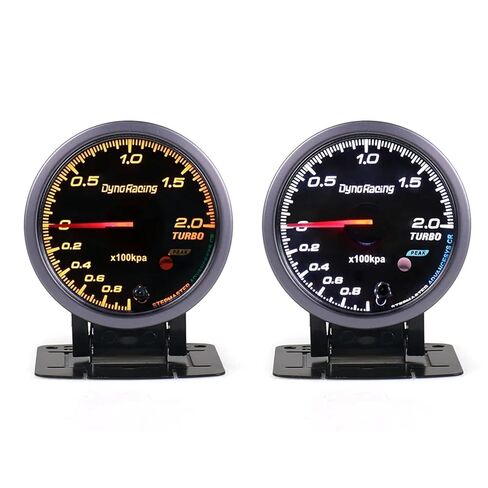

One Boost gauge With Two backlight(Amber and White light)
Package Includes:
1* Gauge
1*Gauge Standand mounting accessories
1*Screw knob
1*Sensor
1*Tubing + T piece + Filter
1*Cables
1*Installation Manual
Question and solution(Please connect the boost sensor for subsequent setup
):
1:How to cancel the buzzing sound?
If you want to cancel the buzzing sound, just restart the power supply and hold the button until the buzzing sound disappears, then release the button. Vice versa.
2:How to set the PEAK Value
After completing the Self-checking, press the button and release, the PEAK lights up (blue light). Then hold the button again for 3 seconds, when the PEAK light flashes, release the button, PEAK value is cleared, the pointer will returns to zero after about 3 seconds.
2:How to set alarm points and cylinder:
After self-examination, hold the button for 5 seconds, the pointer lights flicker, loosen, and then press the button to set the alarm point (Press the button and fleetly for fine setting, press and hold the button for quick setting). After about 5 seconds, the pointer automatically returns to zero, you can then set the next Step.
After self-test or after the pointer returns to zero, hold the button for 10 seconds, the pointer lights flicker, loosen, and then press the button to set the cylinder, loosen, after 5 seconds, the pointer automatically returns to zero, you can set the next step.
When the meter reaches the alarm value, the lights will flicker .
==========
High-concerned chemical : None
Placement on Vehicle : Front
Country/Region of Manufacture : CN
Interchange Part Number : Boost Gauge
Special Features : Gauge
Item Weight : 0.6KG
Item Height : 60MM
Item Width : 60MM
Item Length : 60MM
Part Number : Boost Gauge
Material : Boost Gauge
NO. : 6201BB
Color : Black Face / White Light & Amber Light
Measurement range : 0~2 (100kpa)
Material Type : ABS and Glass
Power : DC 12V Professional
Fitment : 12Volt Cars
