Product Description

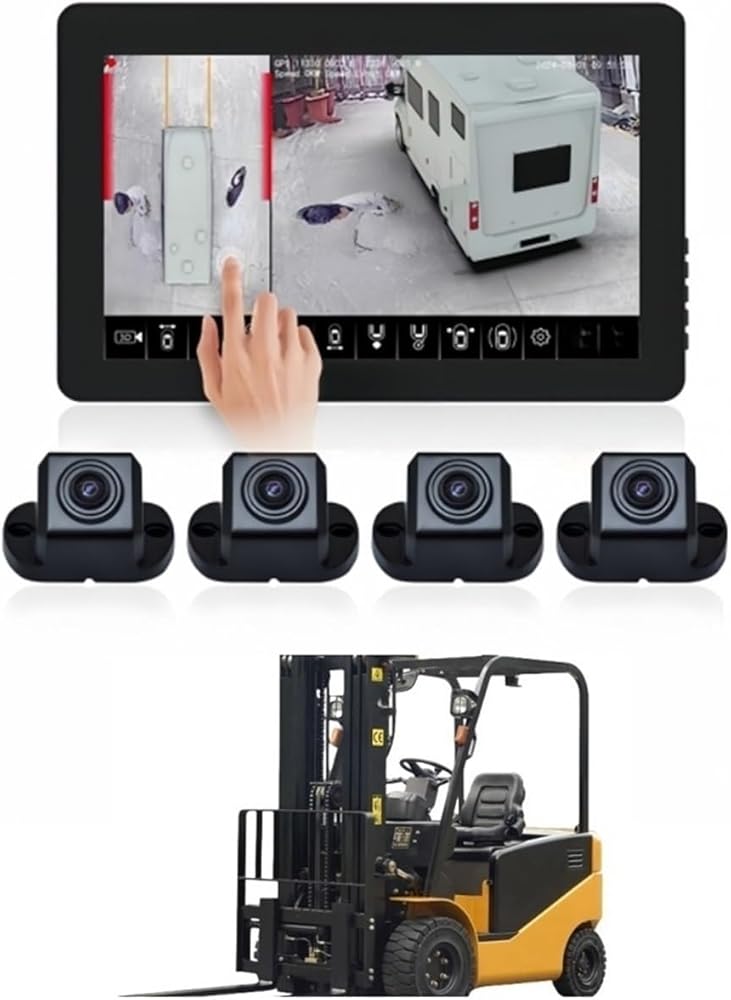

10.1-inch 360-Degree Panoramic Surround View Safety Assist Driving Display Integrated System
System Model: HD3D-3D1014TPC802ZM4
Features
AVM Panoramic Surround View Display Integrated System (No Host Required)
Around View Monitor-AVM
* Overview: The system captures images using multiple (four or six) ultra-wide-angle cameras. Special algorithms correct
distortion and stitch the images to form a panoramic view of the surroundings.
* Features:
1. Intelligent Stitching: Automatic and manual rapid stitching through GPS speed sensor and steering signal to automatically switch between 3D/2D driving image display modes.

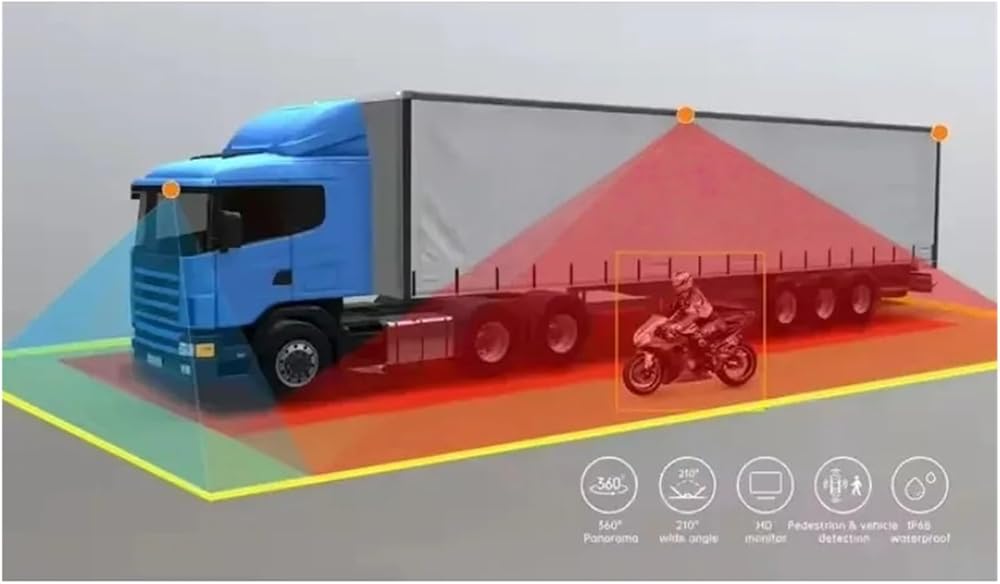

2. Detection and Warning: Detects pedestrians and vehicles around the vehicle, providing 360° blind-spot-free collision prevention and safety distance warnings.
3. MCU Protocol: Exclusive MCU development protocol for CAN bus data interaction to meet various requirements.

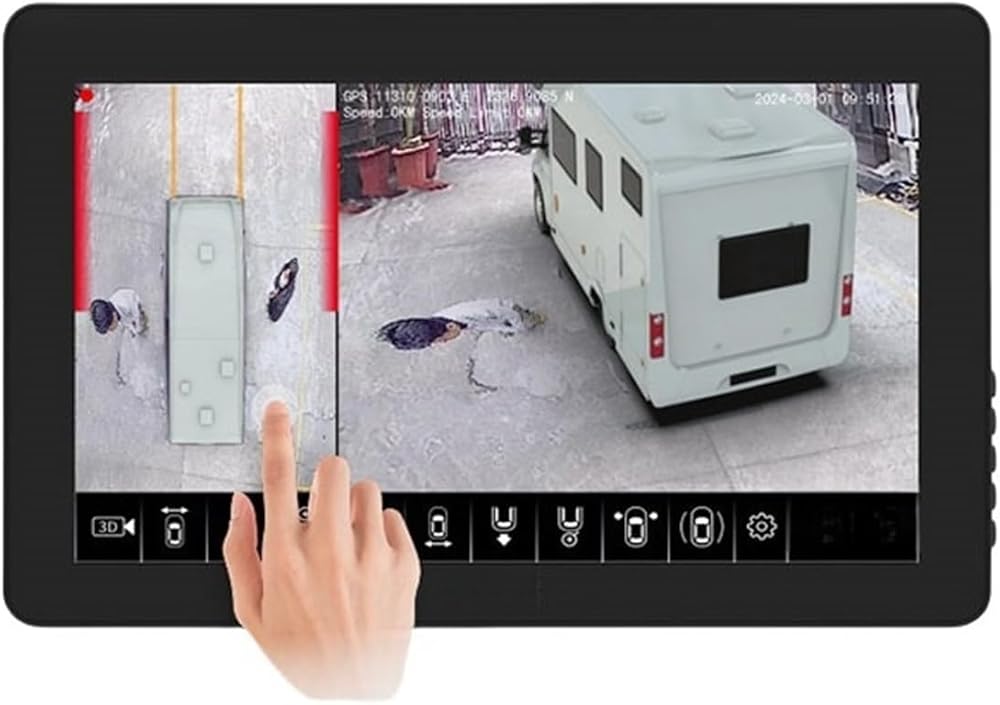

4. User Control: Full touch control to switch any display mode, simple operation.
5. Automatic Switching: When the vehicle speed is below 25 km/h, the system automatically switches to warning screens and lane change assist warning screens, coordinating with external audio-visual alarms.
* Technical Specifications
1. Camera Inputs: Supports 4-channel AHD panoramic camera input, expandable to 4 additional monitoring cameras, and supports 16 radar probe inputs.
2. Communication Protocol: Supports CAN bus communication protocol.
3. Recording: Supports real-time recording, loop recording, and playback (SD card storage).
4. Display:
IPS widescreen for true color and fast response.
Industrial-grade, low-temperature-resistant DSP.
Resolution: 1024 RGB(H) x 600(V) dot.
Automatic brightness control for day/night mode to ensure driving safety at night.
5. Power:
Wide working voltage range: DC 12~36V.
Independent power output, load dump pulse voltage protection, external power polarity reverse protection.
Constant current and voltage protection for LEDs to prevent misuse and ensure product longevity.

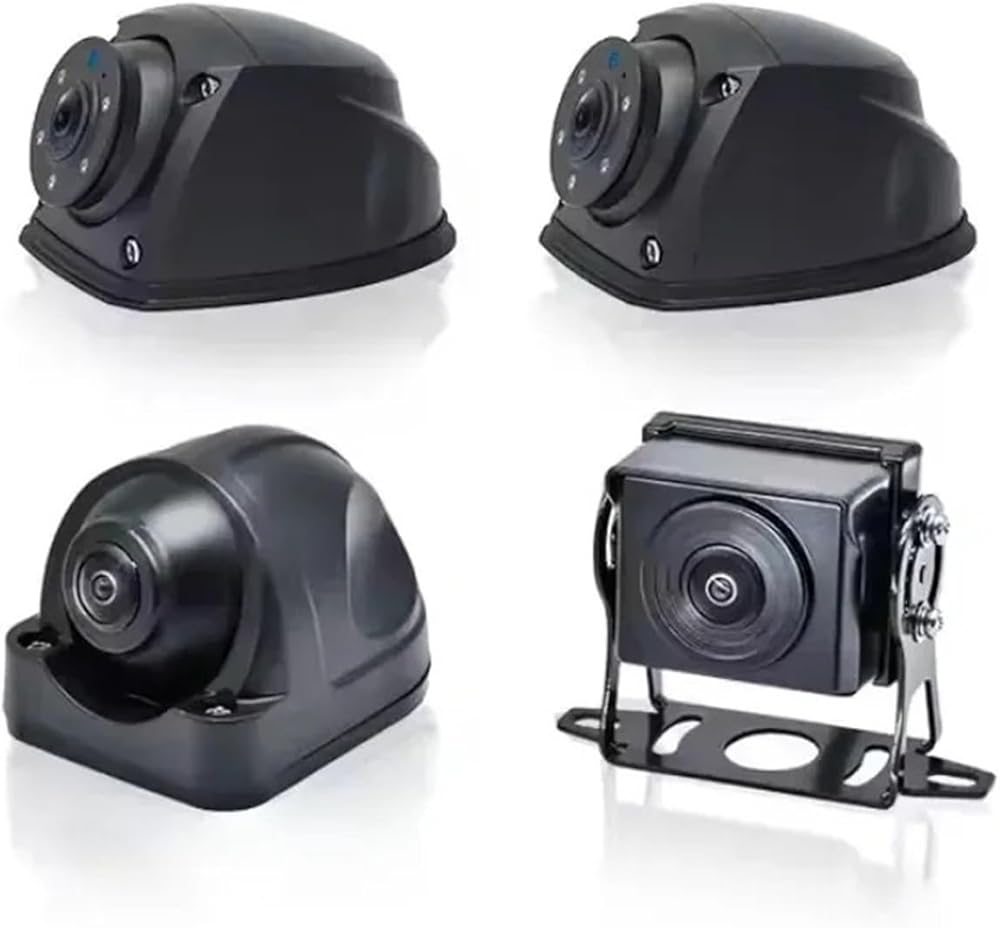

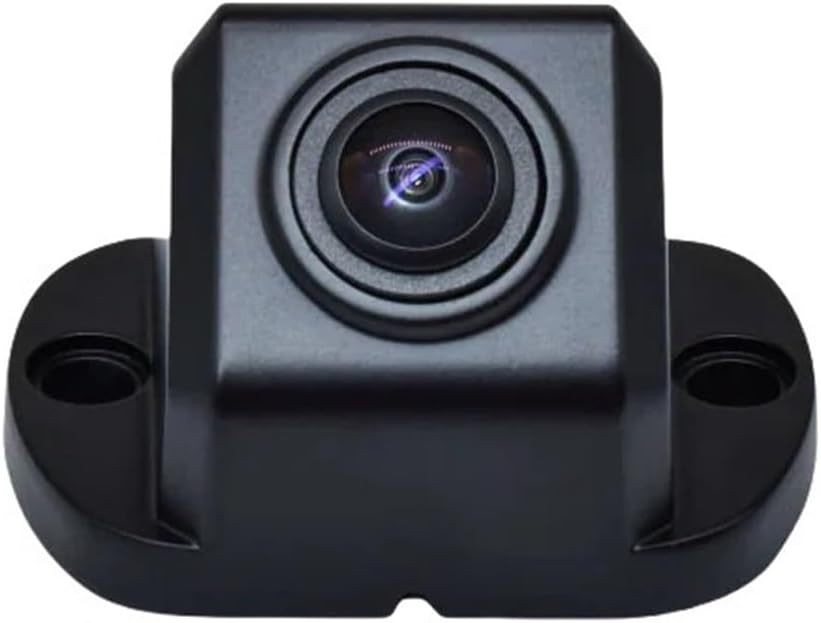

* AHD Panoramic Cameras
