31965002 22/6 + 22/4 + 22/2 + 18/4 كابل تحكم في الوصول مركب مجدول، محمي، تصنيف كامل (CMP، FT6)، بكرة 500 قدم / 152.4 متر، أصفر in Kuwait 31965002 22/6 + 22/4 + 22/2 + 18/4 كابل تحكم في الوصول مركب مجدول، محمي، تصنيف كامل (CMP، FT6)، بكرة 500 قدم / 152.4 متر، أصفر in Kuwait

31965002 22/6 + 22/4 + 22/2 + 18/4 كابل تحكم في الوصول مركب مجدول، محمي، تصنيف كامل (CMP، FT6)، بكرة 500 قدم / 152.4 متر، أصفر

KWD 343
– 1 +

مميزات خاصة

  • Cable Type: Composite Access Control Cable (Multi-Conductor)

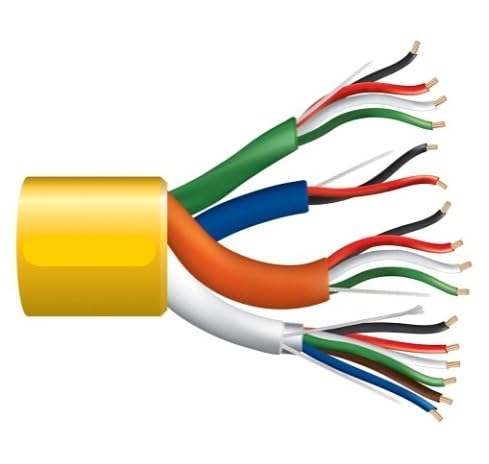

  • onductor Configurations: 22 AWG 6-Conductor Stranded Shielded (Reader) 22 AWG 4-Conductor Stranded (Door Contact / REX) 22 AWG 2-Conductor Stranded (Auxiliary) 18 AWG 4-Conductor Stranded (Power)
  • Shielding: Aluminum foil shield (for 22/6) with drain wire for noise protection
  • Jacket Rating: CMP / FT6 Plenum-rated for air-handling and return air spaces

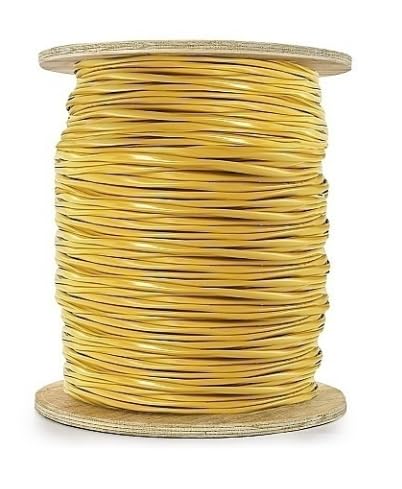

  • Length: 500 ft (152.4 m) Reel
  • Compliance: UL Listed, RoHS Compliant
  • Applications: Access control systems, door locks, card readers, keypads, REX sensors, and power distribution

وصف

The Composite Access Control Cable (22/6 + 22/4 + 22/2 + 18/4 Stranded) is a high-quality, plenum-rated (CMP, FT6) multi-function cable engineered for complete access control and security system integration. It combines multiple stranded conductors into one convenient bundle, designed to handle reader, door contact, REX, and power connections efficiently. The shielded 22 AWG components ensure superior signal protection from EMI/RFI interference, while the 18 AWG power conductors deliver reliable current to door hardware and controllers. Its plenum-rated yellow jacket allows safe installation in air-handling spaces, meeting stringent fire safety standards. Supplied on a 500 ft (152.4 m) reel, this cable simplifies structured cabling and reduces installation time.
