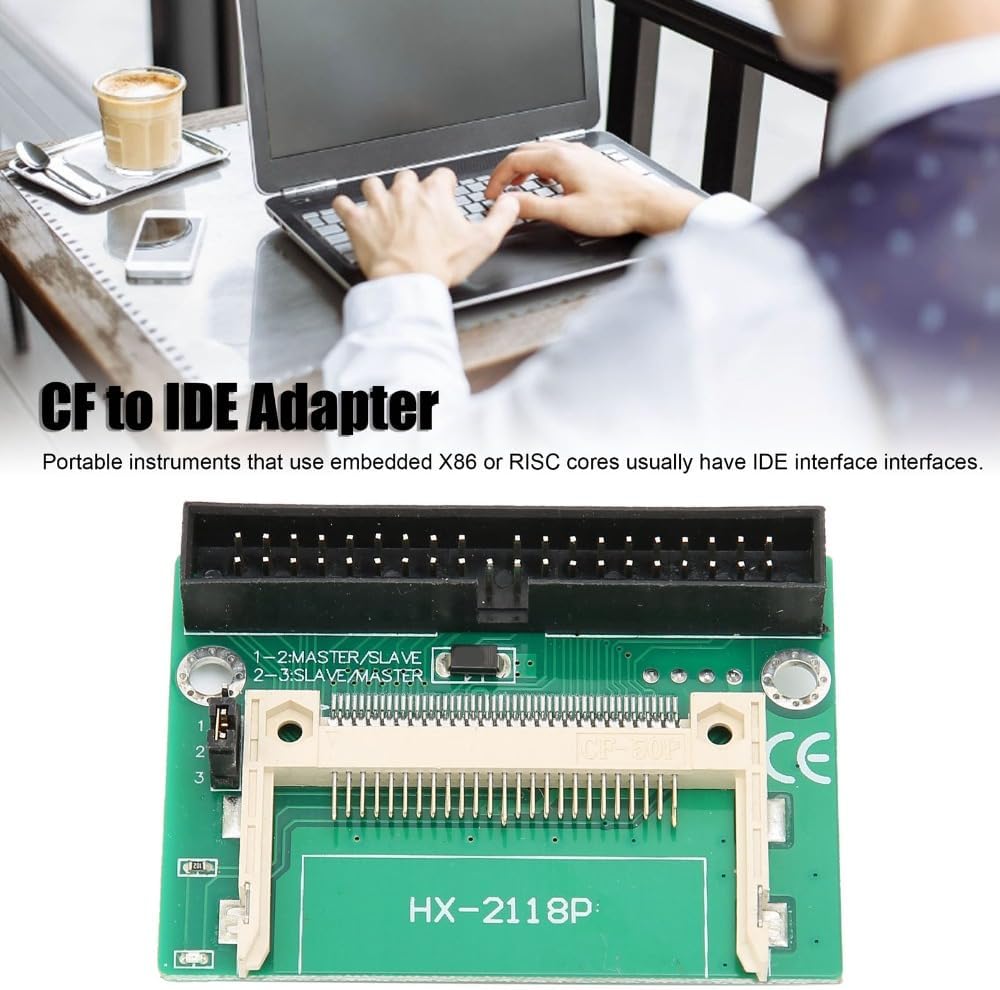

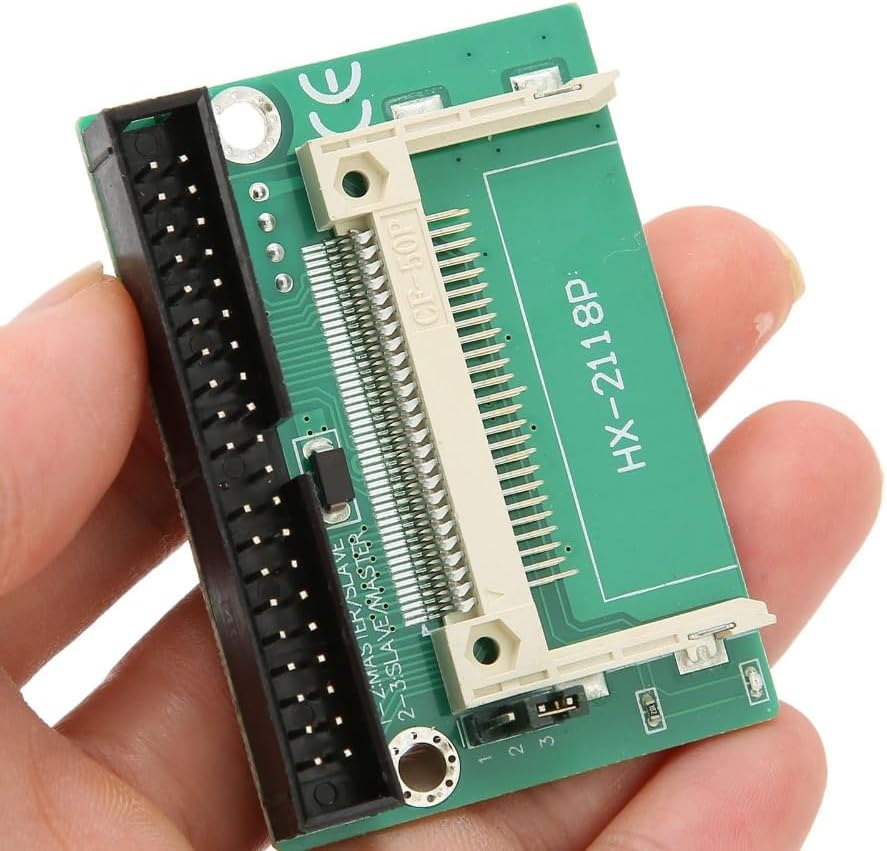

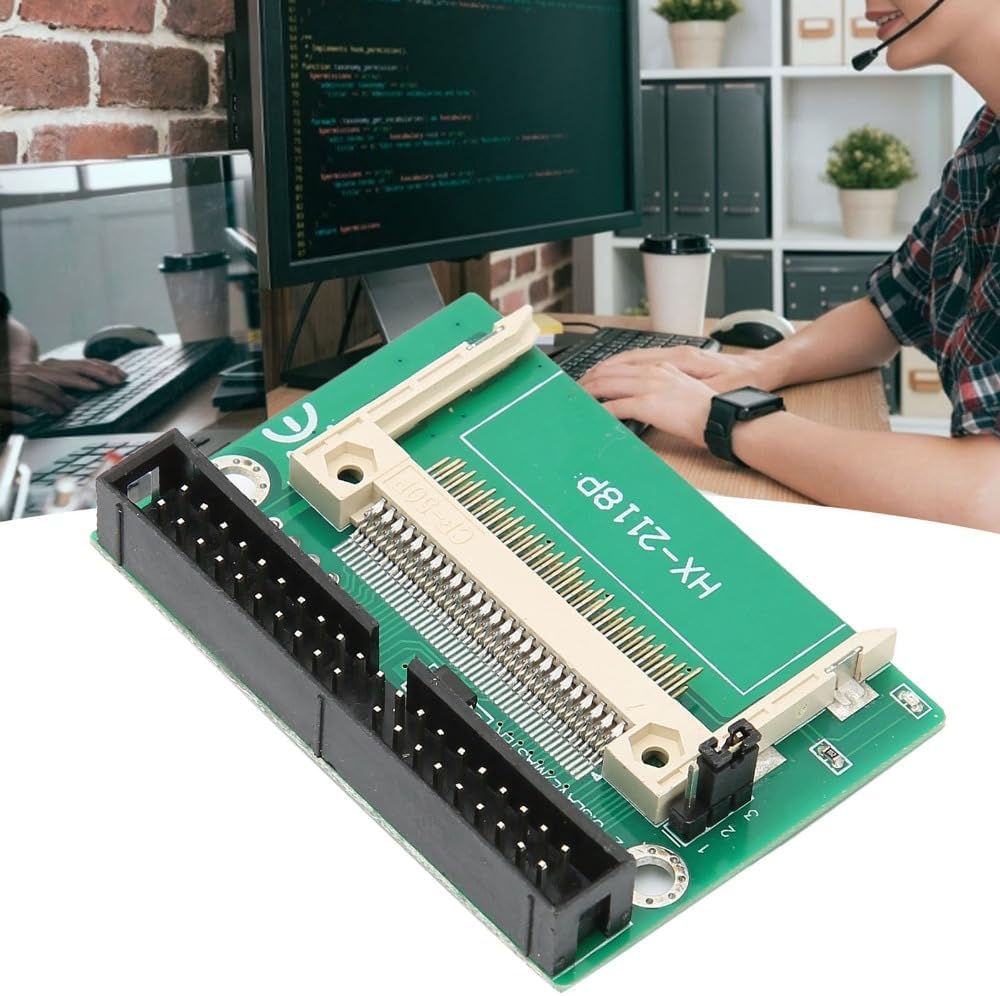

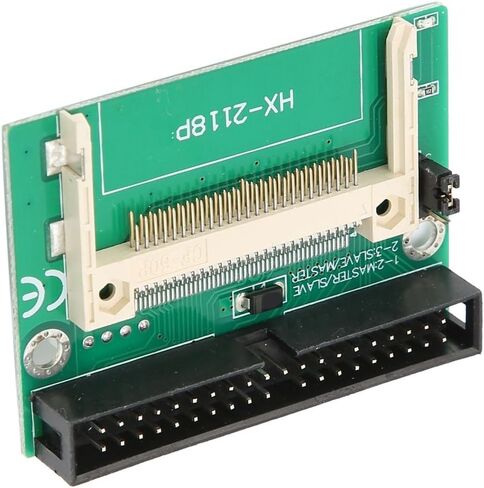

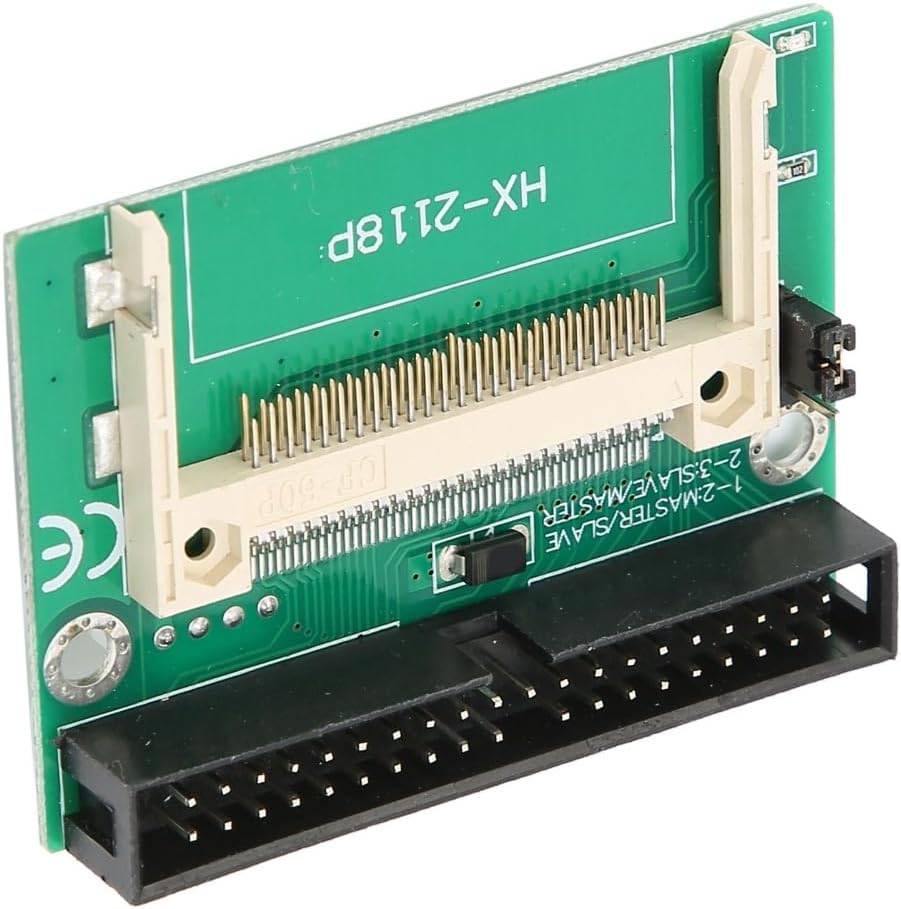

CF to IDE adapter card with 40-pin interface enables seamless data transfer between compact flash cards and IDE ports. Ideal for industrial PCs and embedded systems running for Windows CE, this adapter converts CF cards into bootable disk drives
Connect the adapter to your motherboard's IDE header and insert a CF card into the slot. Configure the jumper setting to Master or Slave based on your system requirements. Power the adapter via the external floppy drive power socket for stable operates. This setup allows direct access to data on instruments or digital cameras without additional drivers
Specification:
Item Type: CF to IDE Adapter
Material: PCB
Interface: 40 Pins

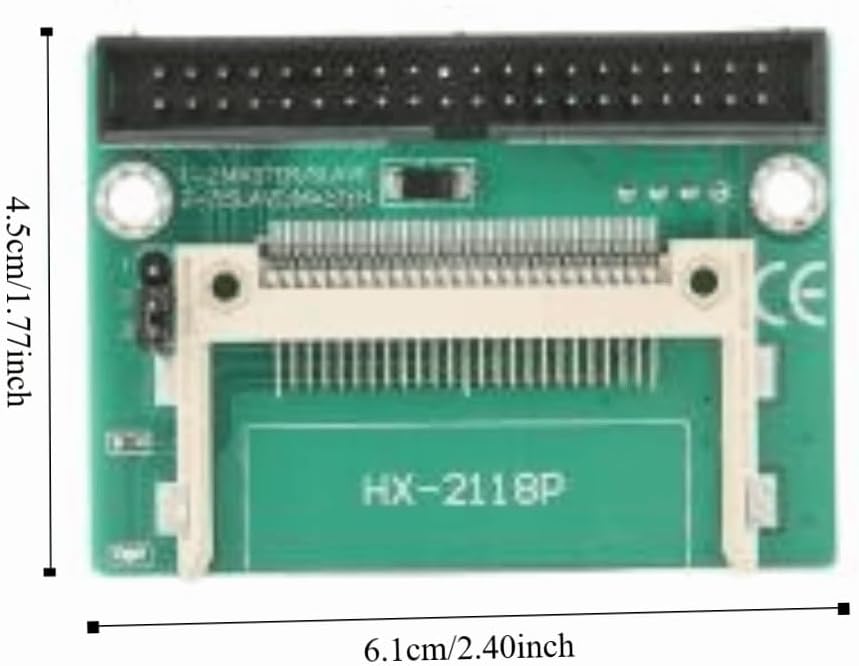

SIze:6.1*4.5cm(2.40*1.77in)
Color:Green
Compliant With Standards: CF Specification Ver2.0, IDE/ATA-33 Specification
Standard IDE Interface Interface: True-IDE Mode
Support Card Type: CF-I and CF-II
IDE Interface: 40-Pin/2.5mm(0.10in) Female Connector (Plug the Card Directly into the IDE Socket)

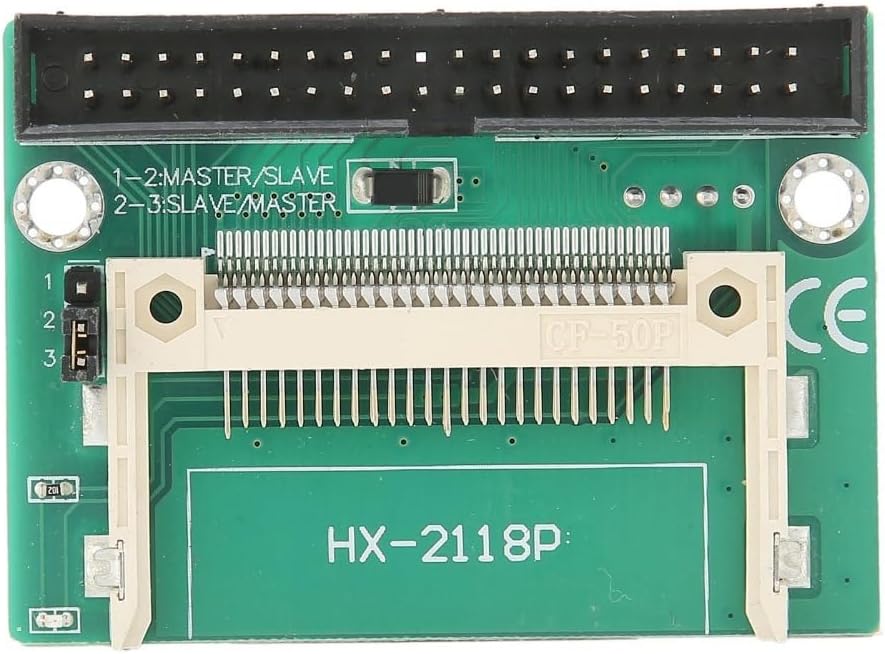

Master/Slave Jumper Setting: Can Be Configured as Master or Slave

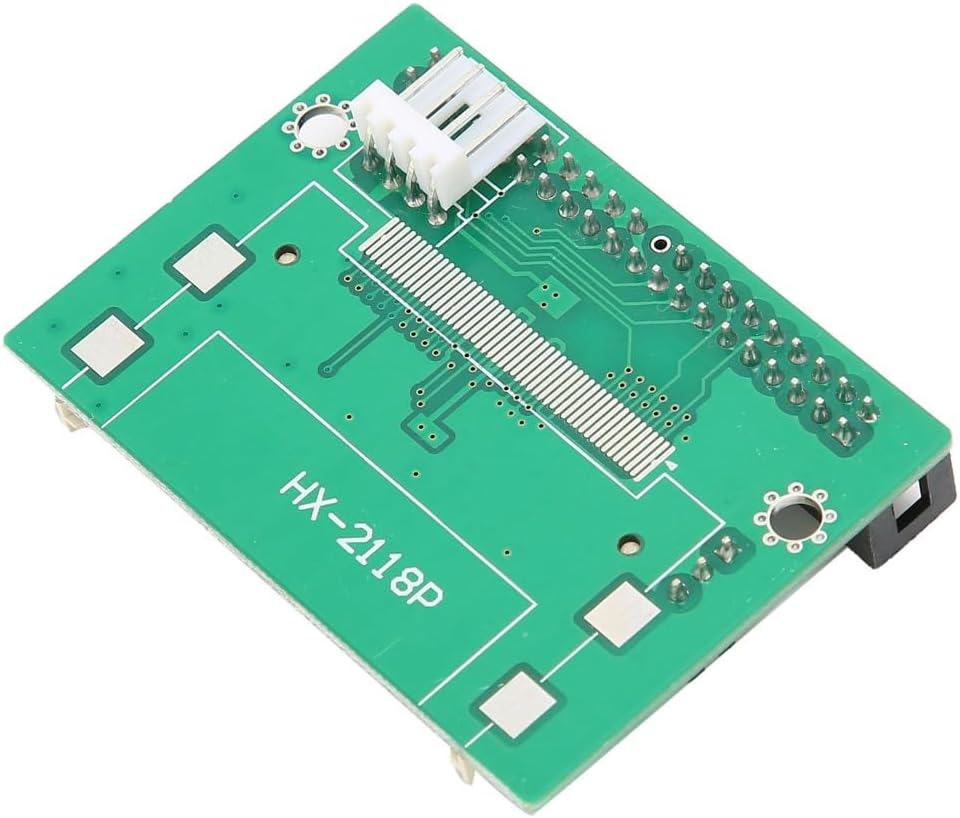

Use CF Card as DOM: Power Supply from External Floppy Drive Power Socket
Package List:
1 x Adapter Card
Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item
2. Please allow slight error due to manual measurement. Thanks for your understanding
