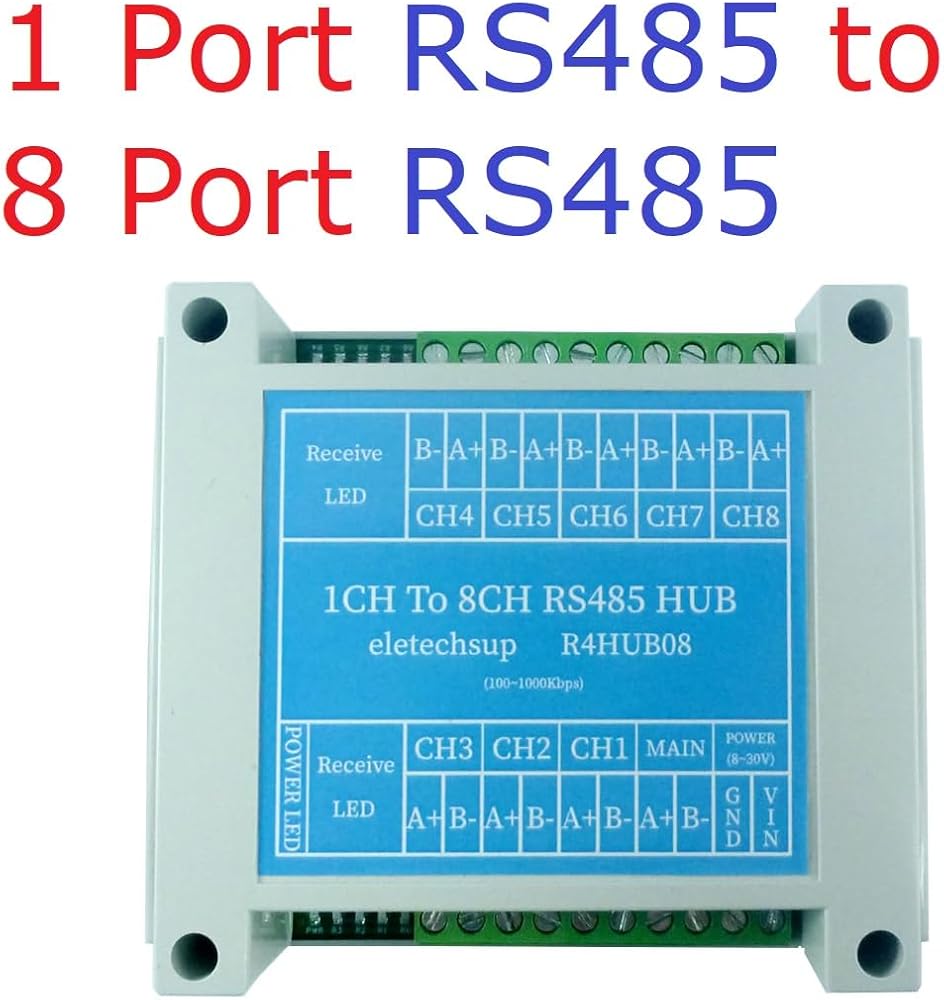

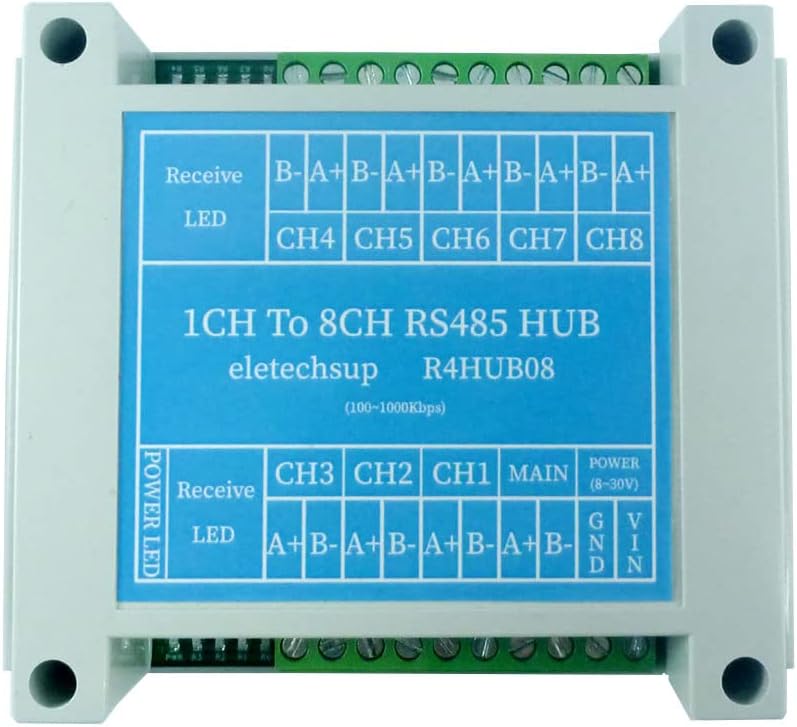

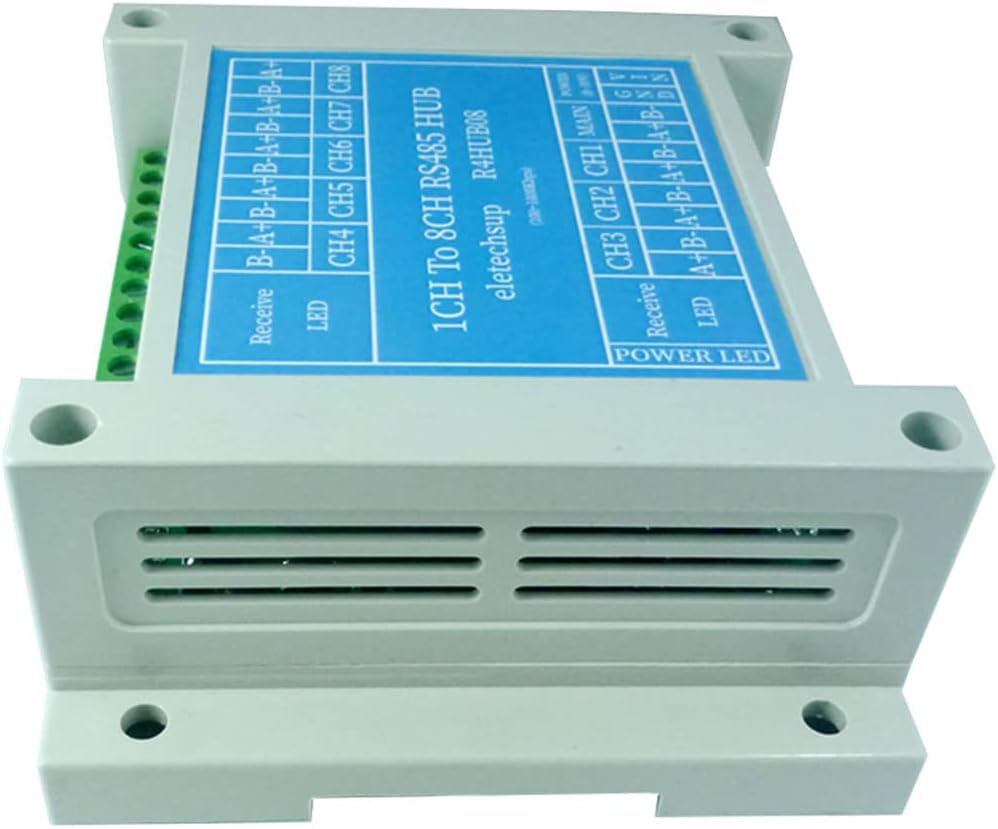

Product Name: 8 Port RS485 Hub Industrial Grade 485 Bus Repeater Serial Port Signal Amplifier 100-1000Kbps DC 12V 24V
Package included:
1 PCS 8-Channel RS485 Hub Repeater
Product presentation and description:

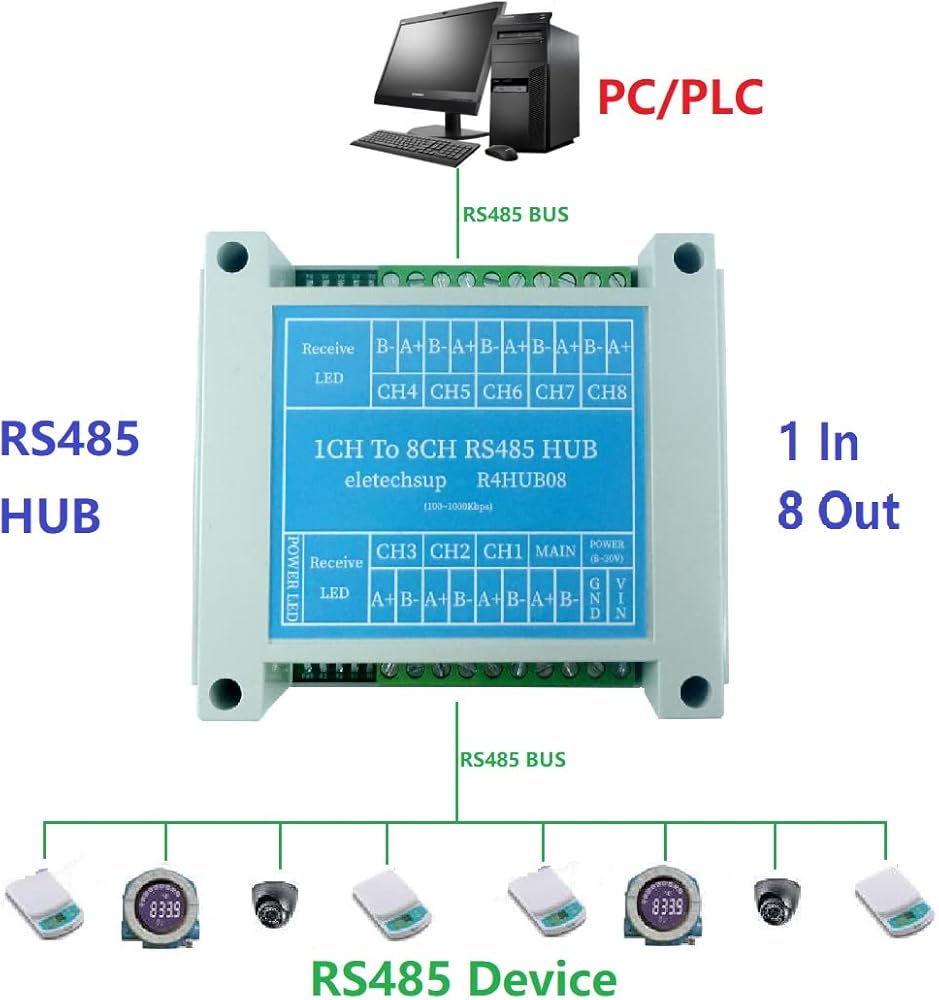

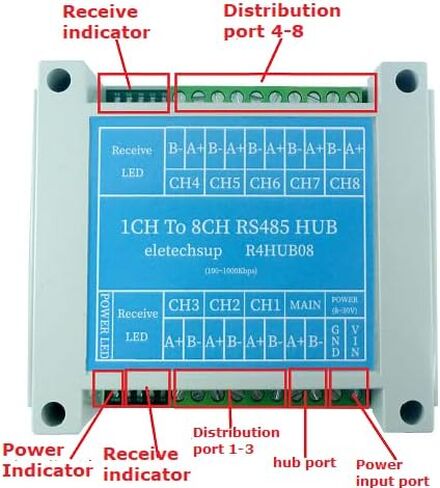

Power input supports DC 8~30V,One power indicator lamp, the PWR, is always on,9 Receiving indicators R 0-R 8,R0 is the indicator lamp for the hub port reception,R 1 to R 8 receives the indicator light for the distribution port,When there is data incoming, the receiving indicator light flashes, and when there is no data incoming, it does not light up. The master port is the hub port, and the slave port is the distribution port.
Features:
Power Supply Voltage:DC 8~30V,Power supply anti-reverse connection protection
Communication interface: RS-485
Communication rate:100bps-1000Kbps
Transmission medium:Two-core twisted pair shielded cable
Way of working:Asynchronous half duplex（RS-485）
Protection circuit: 400W surge protection, ±20KV ESD protection
Communication interface performance:Each 485 interface can connect 256 devices
Communication distance :The communication distance of 485 per road is increased by another 1,200 meters on the original basis
Power supply and signal indication:Power supply / receive LED, with a total of 10 red indicators
For all communication software, independent of the protocol, plug and play
Size:110mm*90mm*40mm
Weight:128.8g
Use environment:The temperature is -40°C to 80°C, and the relative humidity is 5% to 85%

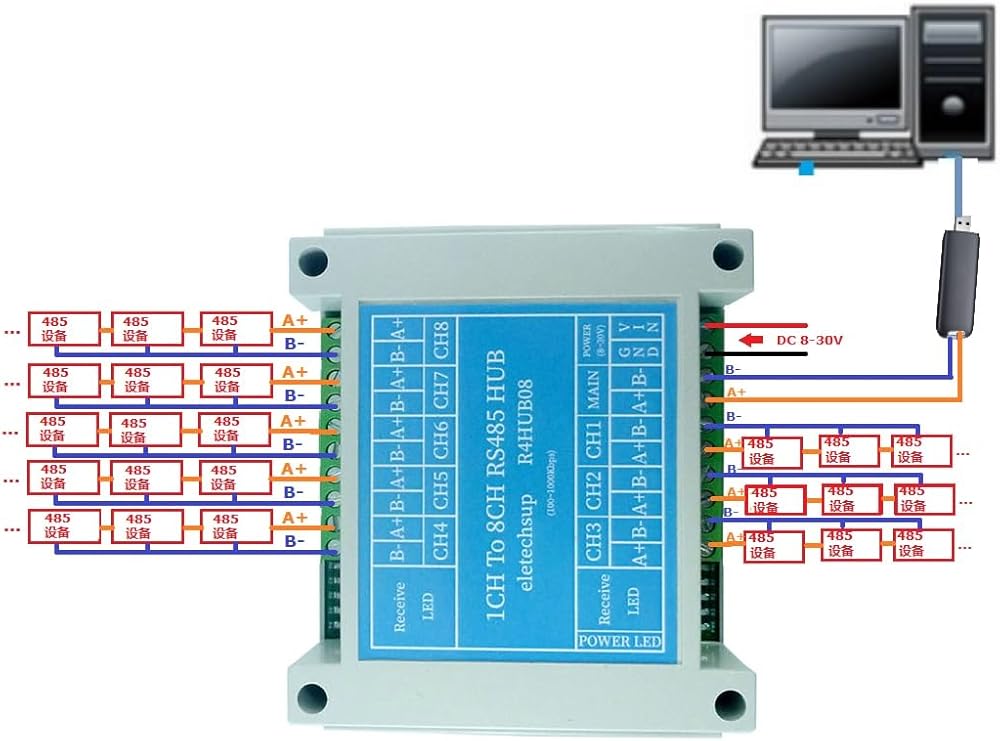

Cascade:Supports cascading of hubs, the existing RS-485 bus has been extended to 8 high-reliability RS-485 interfaces, and 256 RS-485 devices can be connected hand in hand on each RS-485 interface at the same time
