DB9 ذكر إلى أنثى CAN Bus CAN FD Cable D-Sub 9 Pin RS232 كابل تمديد تسلسلي محمي غير منتهٍ لأجهزة تسجيل العلب، وأدوات التشخيص، PLC، آلات CNC (2M/6.6FT) in Kuwait

1 م/3.28 قدم

KWD 8.500
ماركة
Plinkwirekb
وزن
110 g
مقاس1 م/3.28 قدم
– 1 +

مميزات خاصة

  • ✔Standard DB9 Connector – The DB9 Male and Female Connector, Conform to CiA 303-1 CAN Standard Pinout, Ensuring Compatibility with most CAN loggers, interfaces, and diagnostic tools on the market, including CANedge and CLX000 devices.
  • ✔High-Quality & Durable – CAN FD Bus Cable With Tinned Copper Conductors, Aluminum Foil Shield, Provide Excellent EMI/RFI Protection. UL2464 PVC Jacket, Wear-Resistant, Anti-Aging, Flame-Retardant, and Oil-Resistant.
  • ✔RS232 Serial Extension Compatible – This D-Sub 9 Pin Cable uses a straight-through pin-to-pin wiring structure (1-1, 2-2, … 9-9, Shield-Shield), ensuring full RS232 compliance and supporting all standard control, handshaking and data lines. for Computers, PLCs, Sensors, Test Instruments, Serial Printers, CNC Machines, and Control Modules.
  • ✔Non-Terminated – This CAN FD Diagnostic Cable does not include termination resistors, for daisy-chained or extended, for intermediate CAN/CAN FD nodes, bench testing, ECU development, and systems where termination is handled at the endpoints.
  • ✔Custom Cable – We are a professional cable manufacturer, please contact us for customised requirements. Please contact us if the cable you received is defective or does not work. We will solve the problems properly or send you a new replacement at once.

وصف

Specification:

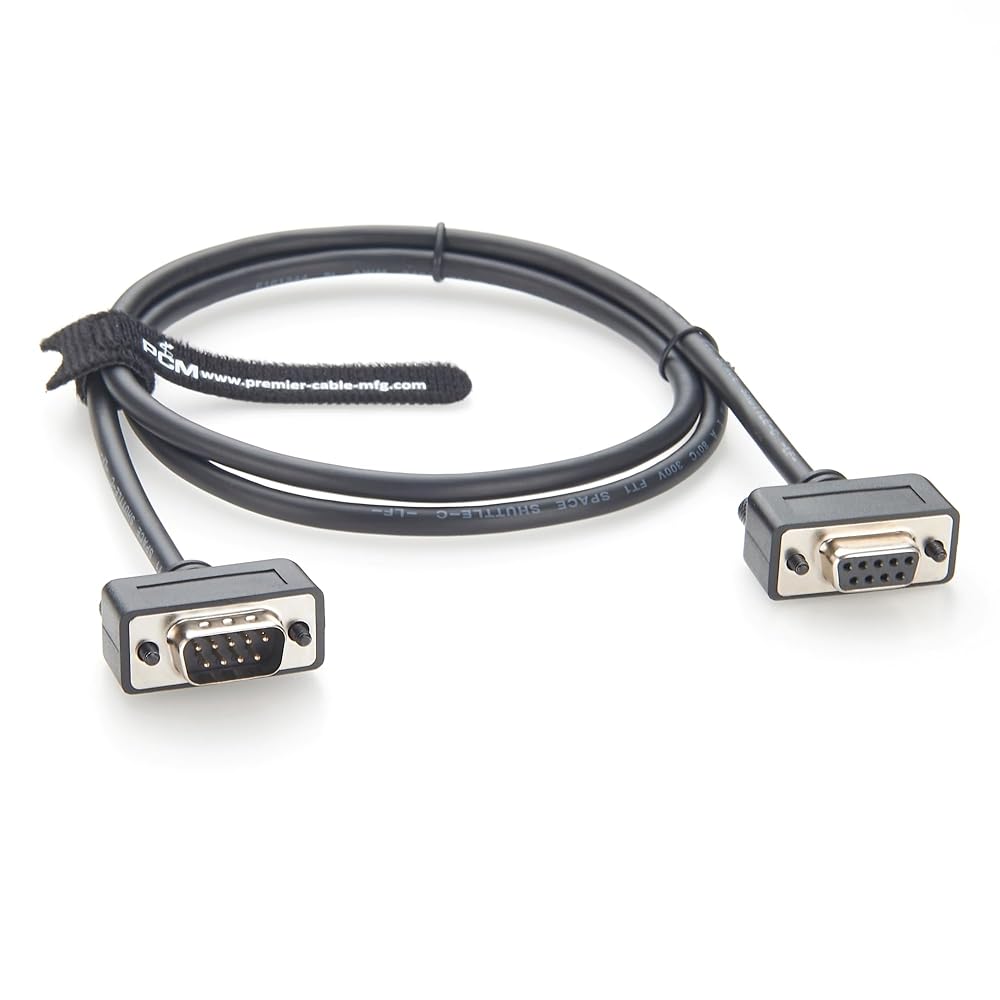

Product Name: DB9 Male to Female CAN Bus CAN FD Cable
DWG No.: PCM-0398
Connector A: DB9 Male Connector
Connector B: DB9 Female Connector
Length: 1M/2M Optional
Cable Type: 28AWG*9C+AE, UL2464 PVC Jacket
OD: 5.0MM
Screw: F6*25mm UNC#4-40
