this motherboards helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
Motherboard chip
Integrated Chip Sound Card/Network Card
Main chipset Intel Z97
Chipset description Using Intel Z97 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrates Realtek ALC892 8-channel audio chip
NIC chip onboard Intel I218V Gigabit LAN
Processor specification
CPU Type Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1150
Memory specifications
Memory Type 4×DDR3 DIMMs
Memory Description Supports DDR3 3000 (Overclocking)/2933 (Overclocking)/3200 (OC)/2800 (Overclocking)/3100 (OC)/2666 (Overclocking)/2600 (Overclocking)/2400 (Overclocking)/2200 (Overclocking)/2133 (Overclocking)/2000 (Overclocking)/1866 (Overclocking)/1600/1333 (OC) MHz Memory
Storage expansion
PCI-E Standard PCI-E 3.0
PCI-E slot 3 x PCI-E X16 graphics card slot, 2 x PCI-E X1 slot
PCI slot 2 x PCI slot
Storage interface 1×M.2 interface, 1×SATA Express interface, 4×SATA III interface

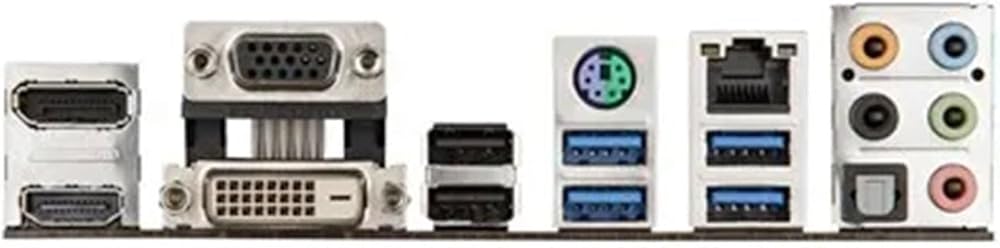

I/O interface
USB interface 6×USB3.0 interface (2 built-in +4 backplane), 8×USB2.0 interface (6 built-in +2 backplane)
Video interface 1×DVI interface, 1×Display Port interface, 1×HDMI interface
Power Jack An 8-pin, 24-pin power connector
Other interfaces 1×TPM interface, 1×RJ45 network interface, 1×PS/2 keyboard and mouse general interface
Plate type
Main board type ATX board type
Dimensions 30.5×24.4cm
==========
RAID Supported : YES
Processor compatibility : Intel 0thers
Ports : VGA
Usage Scenario : Office,others
Special Function : None
Back I/O Ports : 1x RJ45
Onboard LAN : 1x RJ45
Storage Interface Type : SATA,M.2 (NVMe)
Number of PCI : 2
PCI - E standards : PCI - E 3.0
