بيت / MORIENZI / محاور وأدوات USB
مبرمج T76 مع Xgecu T56 Tl866ii T48 استبدال IC Probe Clip Reader الكاتب دعم Eprom ISP Chip PIC NAND Flash EMMC GAL CPLD VGA BGA جهاز اختبار المقبس (T76+SOP8 150MIL) in Kuwait

T76+QFN8 8x6

KWD 86.500
ماركة
MORIENZI
وزن
400 g
مقاسT76+QFN8 8x6
– 1 +

مميزات خاصة

  • The T76 programmer supports:T76 programmer is the update version of T56 programmer26, 27, 28, 29, 37, 39, 49, 50 series parallel ROM, EPROM, EEPROM;24, 25, 35, 45, 85, 93, 95 series serial EEPROM; P-NAND FLASH, customizable to add new chip models;SPI NAND (SD NAND/SD cards); EMMC/EMCP;microcontroller series programming;GAL/CPLD programmable logic device programming;VGA tool and VGA ISP programming;SRAM chip testing;High-performance 54/74F/LS/HC CMOS4000 series IC logic test. common EEPROM, EPROM, FLASH chips,support robust microcontroller and programmable logic device (GAL/CPLD) and with the capability to customize and add new chip models. the chip models will be updated normally.
  • The T76 features: high-performance 32-bit RISC-V MCU + FPGA controller, paired with a high-speed USB 3.0 Type-C interface. This configuration provides data transfer speeds up to 140MB/sec (EMMC 5.1 actual transfer rate), multiple times faster than traditional programmers! Whether you are reading or writing data, you will experience lightning-fast operation. EMMC 5.1 actual transfer rate up to 140MB/sec (8.4GB/minute).SPI NAND read speed up to 18MB/s.64 Gb P-NAND read speed of 30MB/S.
  • The T76 design: employs a high-density board design and comes with a high-quality USB 3.0 aluminum gray braided cable, ensuring stable and reliable signal transmission. In addition, the T76 offers comprehensive power protection mechanisms, including over-voltage, over-current, reverse connection protection, and low-voltage warnings, allowing you to program with peace of mind, worry-free.30% more internal components than T56, with a higher density board design.
  • Note: before you buy ,you can download the software or contact us to check the programmer whether support the chip typle,which adapter it need, then choose the adapter kit you need,thanks .Support : Windows XP,2003,2008,Vista Win7 WIN8 WIN10 WIN11

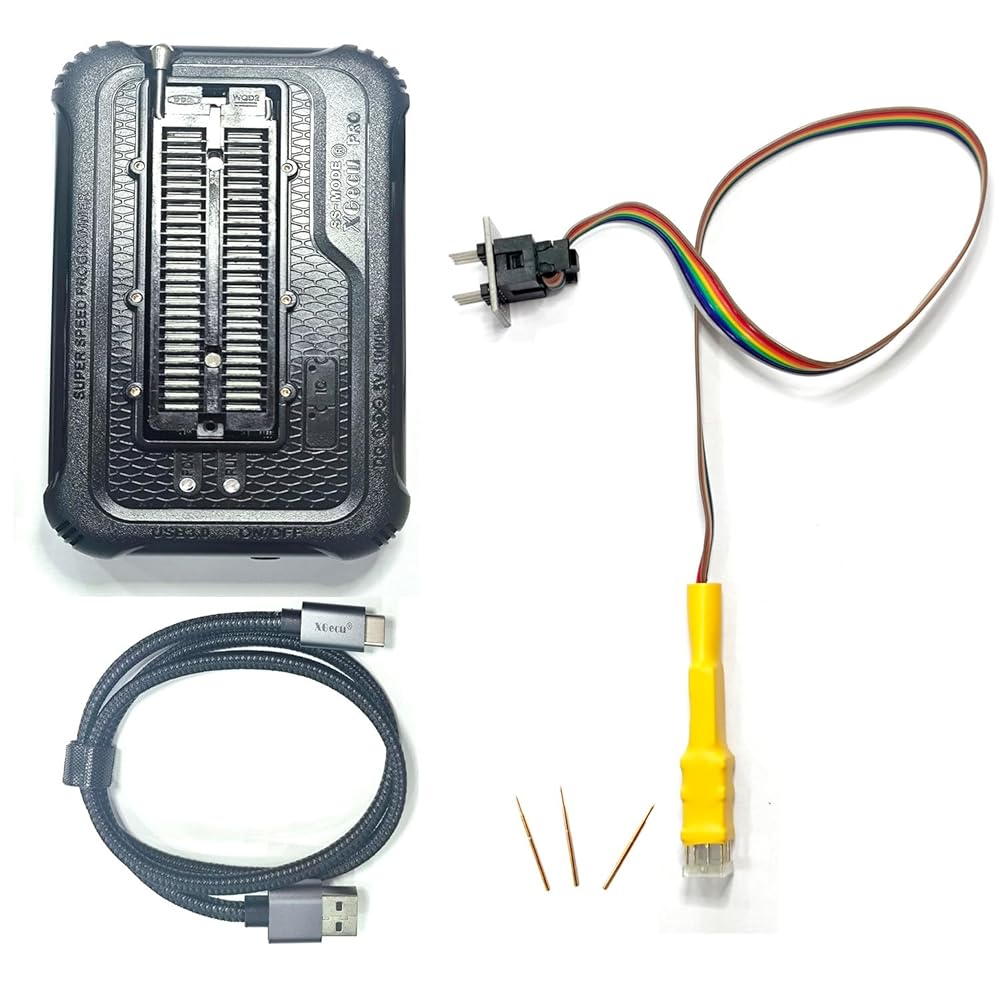

  • Package include:1*T76,USB cable*1, probe clip*1,3*probe clip needles

وصف

The T76 programmer IO design:Adopts a high-quality USB 3.0 Type-C aluminum gray braided cable for stable and reliable signal transmission.VCC voltage adjustable from 1.2V to 6.5V (64-level adjustable), and VPP voltage adjustable from 6.5V to 25V (64-level adjustable).IO communication signal voltage adjustable from 1.2V to 3.6V (64-level adjustable).VCC current limit adjustable from 120mA to 450mA, VPP current limit at 150mA, both with overcurrent protection.Supports 5V
