Audio Transformers

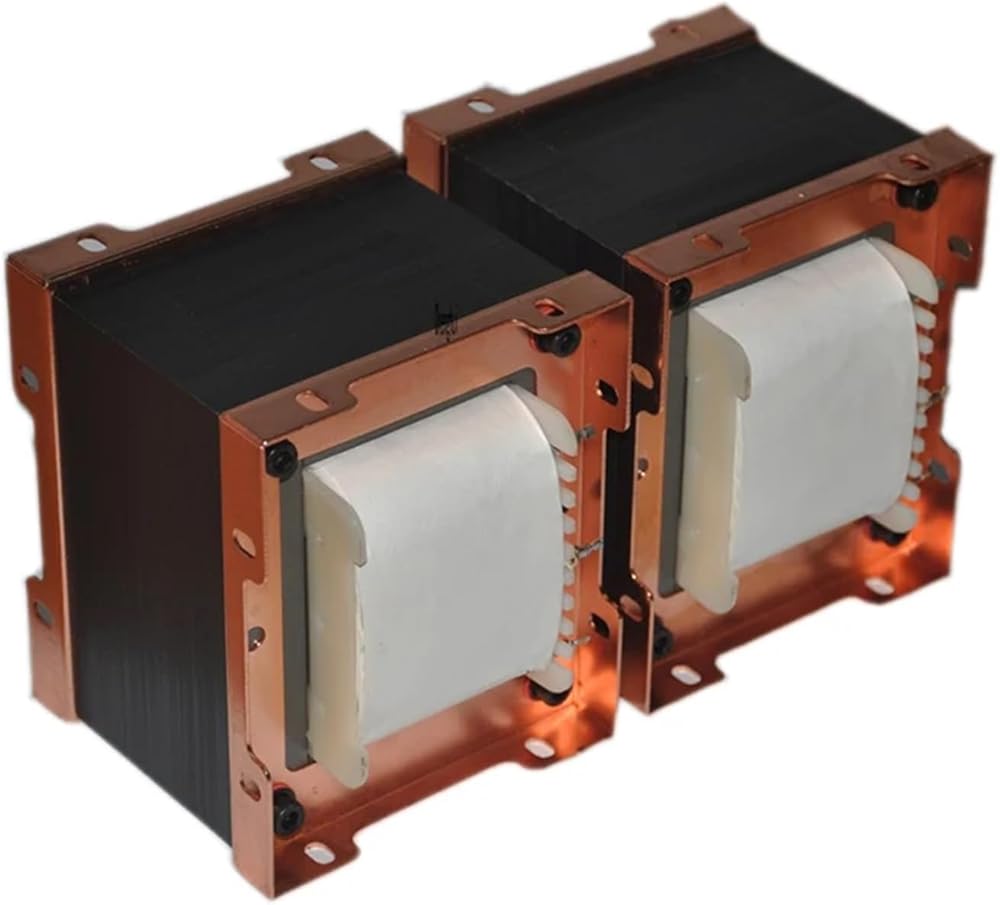

2.5K output 2A3 bile machine power supply pure oxygen-free copper power amplifier power supply
Applicable tubes: 2A3, 300B, 6B4G, 1619, 6A3, etc.
Model: 0PT2. 5K-25S
Iron core parameters: E196 (tongue width 32mm) * stack thickness 45mm0.23 piece
Primary Impedance: 2500
Secondary Impedance: 0-4-8 ohms
Power: 25W
Primary DC Resistance: 122
Secondary DC resistance: 0.65 0-4R 0.15 4-8R 0.80Q 0-8R
Primary Inductance: 20H
Leakage Inductance: 8.6mH
Interstage capacitance: 4. -5nf epoxy resin potting 10-12nf vacuum dipping varnish
Frequency Response (-1dB): 8HZ-40KHZ -1DB
