Filter, Regulator & Lubricator Combos
scope
feature:

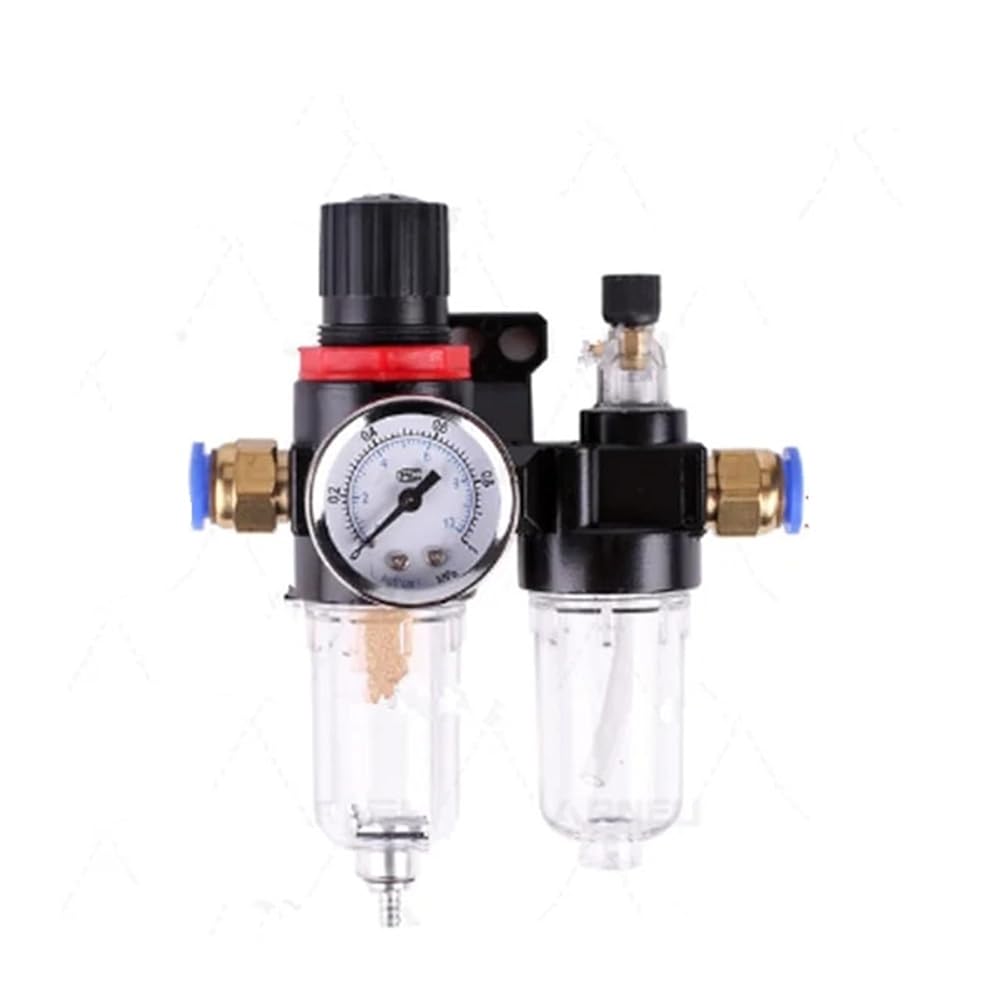

Product Name: Air Source Treatment Filter
Model: AFC2000
Material: Metal, Plastic
Working medium: air
Maximum pressure: 0.95Mpa / 9.5kgf
Adjustable pressure range: 0.15-0.85MPa / 1.5-8.5Bar
Connector pipe thread diameter: 11.8mm
Connecting pipe size: 1/4 PT
Pressure range 0-1MPa / 0-10kgf/cm2
Instrument connector diameter 9.1mm
Mounting hole diameter: 7.5mm
Meter size: 42 x 24mm/ 1.6" x 1" (D*H)
Overall size: 90 x 53 x 155mm / 3.5" x 2.2" x 6" (L*W*H)
Package Contents
1 x Air source treatment filter
1 pressure gauge
==========
Type: Source Processing Unit
Model: AFR2000+AL2000 G1/4" AFC2000 air compressor oil-water separator
Origin: Mainland China
