Product Information:
OD 4mm: For Pipe OD 4* ID2.5
OD 6mm: For Pipe OD 6*4
OD 8mm : For Pipe OD 8*5
OD 10mm : For Pipe OD 10*6.5
OD 12mm : For Pipe OD 12*8
Tips:
Male Thread Size: 1/8", 1/4", 3/8", 1/2"BSP
01=1/8" Threaded9.7mm
02=1/4" Threaded12.5mm
03=3/8" Threaded16.2mm
04=1/2" Threaded20.2mm
Material:Nickel plated copper
Fluid : Clean compressed air, vacuum
Max working pressure: 1.32Mpa(12.5kgf/cm²)
Pressure range: 0~0.9Mpa (0~9.2kgf/cm²)
Environment and fluid temperature: 0~60
Use hose: PU Tube, Nylon tube

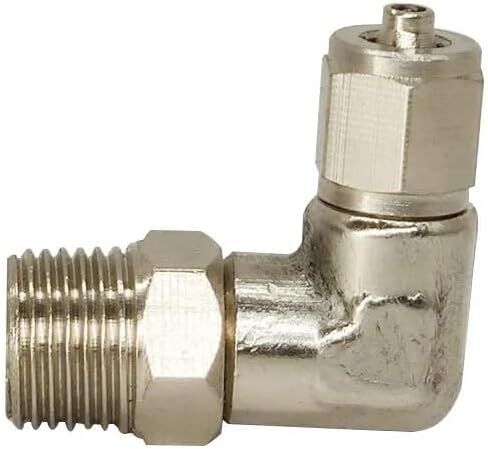

Type:PL PLF Rotate
Note:
1.Due to the difference between different monitors, the picture may not reflect the actual color of the item.
2.Please allow 1-2mm error.
Package Content: 1pc Quick Fitting
Hign-concerned Chemical : None
Hose Inner Diameter : 8mm
Connection : Male
Head Code : Hexagon
Technics : Casting
Model Number : PL PLF (360rotate)
Shape : Equal
Type : Elbow
Material : Copper
Origin : Mainland China
Certification : None
Thread : M5 1/8 1/4 3/8 1/2 BSP
Material : Brass with nickle plated
Used for hoses : OD 4mm/6mm/8mm/10mm/12mm
Used : air speed cpmtrpller
Working Pressure : 0~0.9Mpa (0~9.2kgf/cm²)
