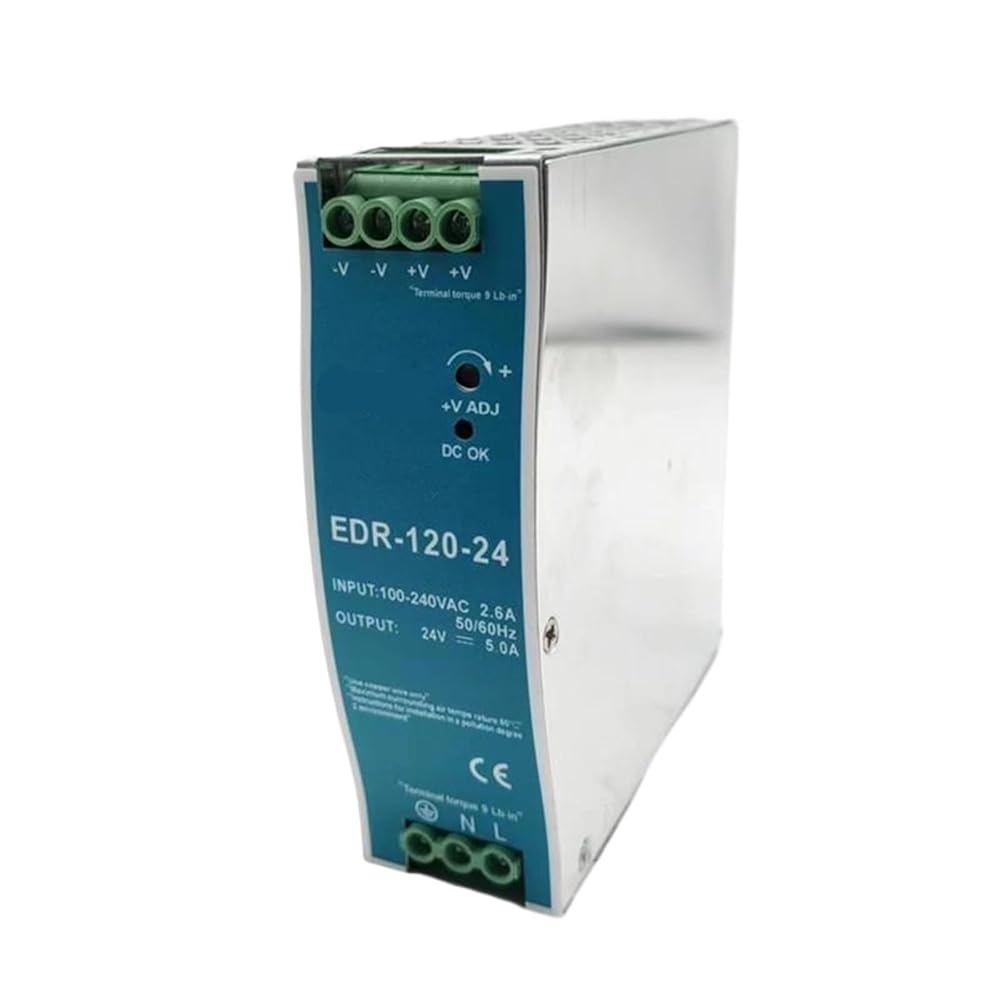

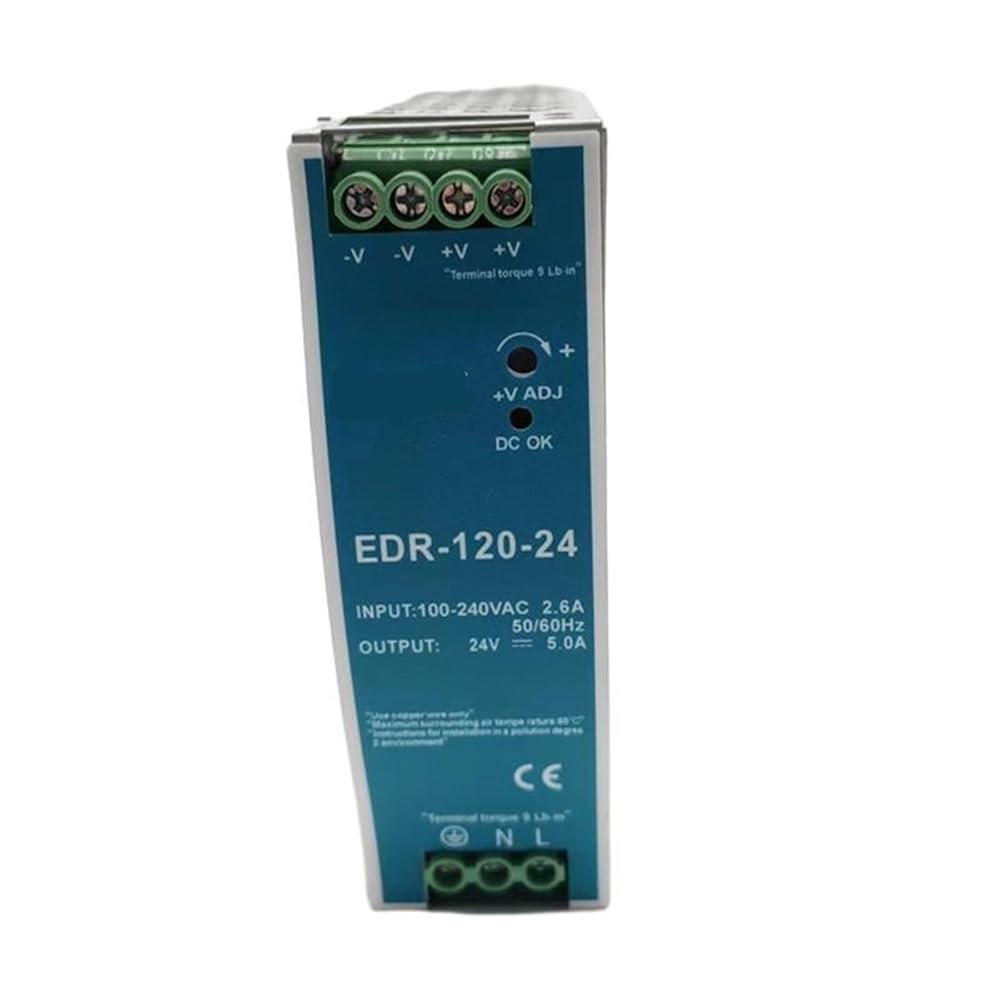

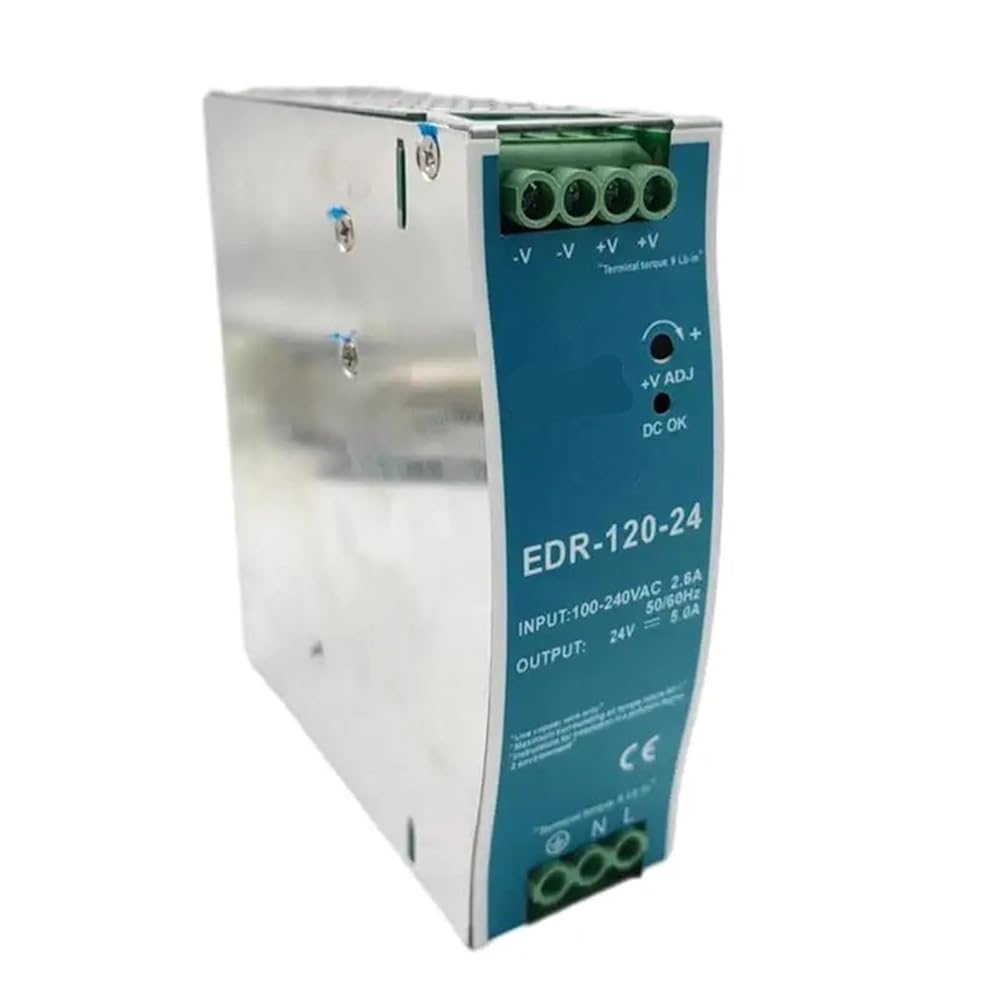

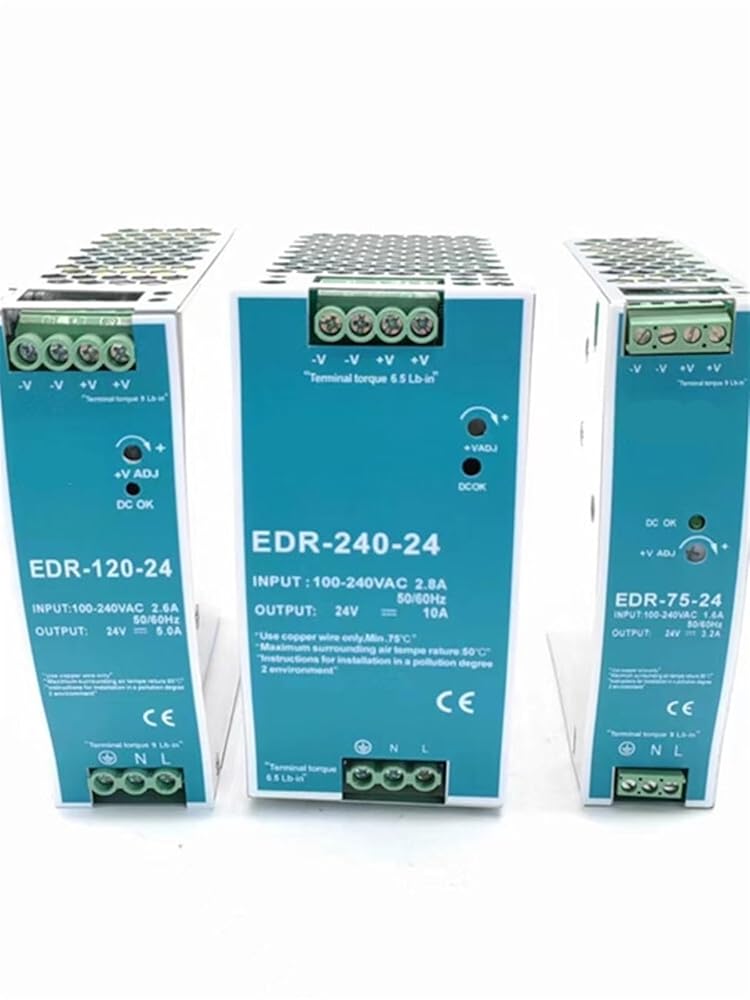

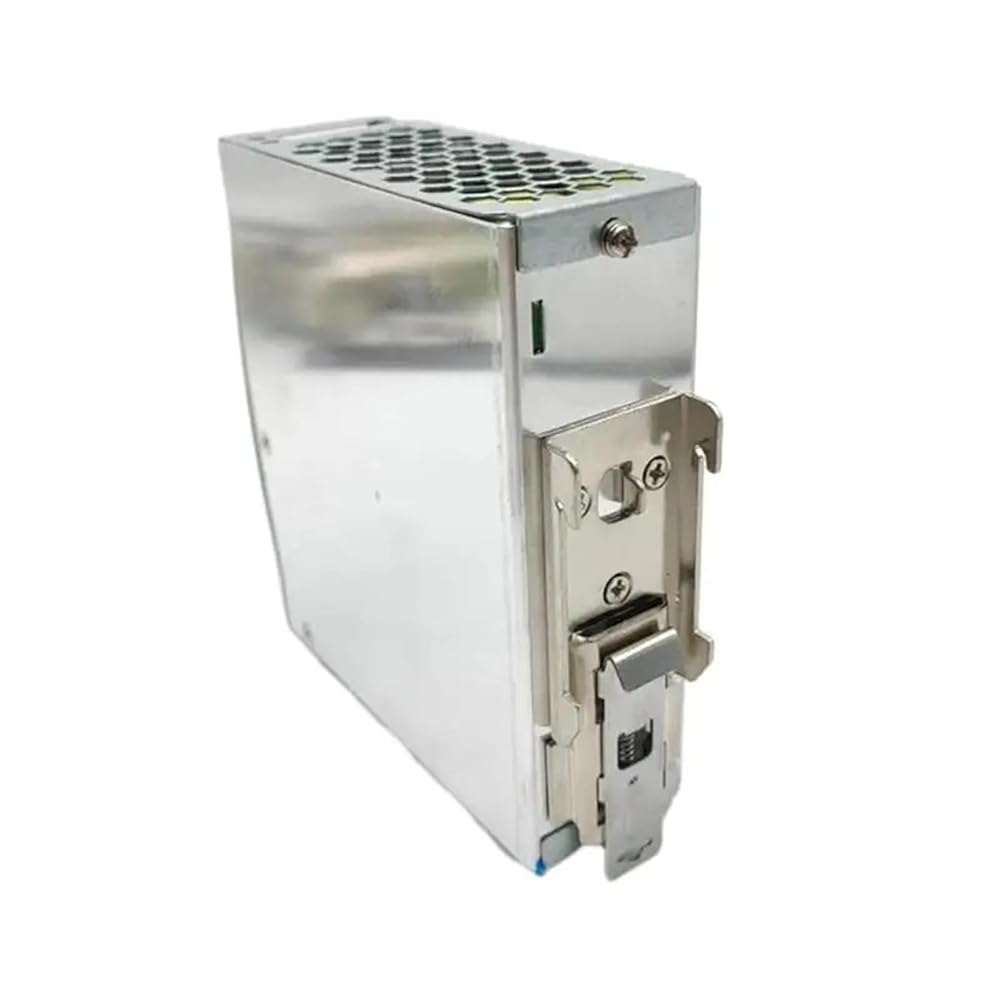

EDR 120W 24V Industry Switching Mode Power Supply EDR-120W DIN Rail for Cctv Led Light SMPS Power Supplies
Features:
High efficiency, high reliability and low cost
Switch input voltage range choice
full load and machine test
Protection characteristics: short circuit/overload
Air cooling
MODEL
EDR-120-12
EDR-120-24
EDR-120-48
OUTPUT
Voltage
12V
24V
48V
Rated Current
10A
5A
2.5A
Current range
0~10A
0~5A
0~2.5A
Rated power
120W
120W
120W
Ripple&noise
80mVpp
80mVpp
120mVpp
Voltage ADJ
1214V
2428V
4853V
Voltage tolerance
±2.0%
±1.0%
±1.0%
Line regulation
±0.5%
±0.5%
±0.5%
Load regulation
±1.0%
±1.0%
±1.0%
Setup,Rise,Time
500ms, 70ms/230VAC 500ms,70ms/115VAC(full load)
Hold up time
36ms/230VAC 32ms/115VAC(full load)
INPUT
Voltage range
100-264VAC 140-370VDC
Frequency range
50~60Hz
Efficiency
83%
86%
87%
AC current
2.25A/115VAC 1.3A/230VAC
Inrush current
Cold start: 20A/115VAC 35A/230VAC
Leakage current
PROTECTION
Over load
105%~150% rated output power
Protection type : Hiccup mode,recovers automatically after fault condition is removed
Over voltage
15~17V
29~33V
56~65V
Protected mode: turn off the output and restore the normal output after the power is restarted
href="#/javascript:;" Excess temperature
Protection mode: turn off the output voltage, it can be automatically restored when the temperature returns to normal
Environment
Working TEMP
-10~+60
Working humidity
20%~90% RH non-condensing
Storage TEMP humidity
-20~+75. 10~95% RH
TEMP.coefficient
±0.03%(0~50)
Vibration
10~500Hz,2G 10min./1cycle,60min each along X,Y,Z axes Install conform to IEC60068-2-6
SAFETY
Safety regulations
FCC Certified UL508, UL60950-1,TUV EN60950-1 EAC TPTC 004 In line with the certification
Withstand voltage
I/P-O/P:1.2KVAC I/P-FG:1.2KVA O/P-FG:0.5KVAC
Insolation resistance
l/P-O/P I/P-FG, 0/P-FG: 100M Ohms/500VDC/25/70% RH
Electromagnetic compatible emission
Compliance to EN55032(CISPR32)CLASS B, EN61000-3-2,-3,EAC TP TC 020
href="#/javascript:;" EMC immunity requirements
Compliance to EN61000-4-2,3.4.5.6.8,11. EN55024,EN1000-6-2(EN50082-2),
Class A heavy industry standard EAC TP TC 020
OTHERS
MTBF
456.3K hrs.MIL-HDBK-217F(25)

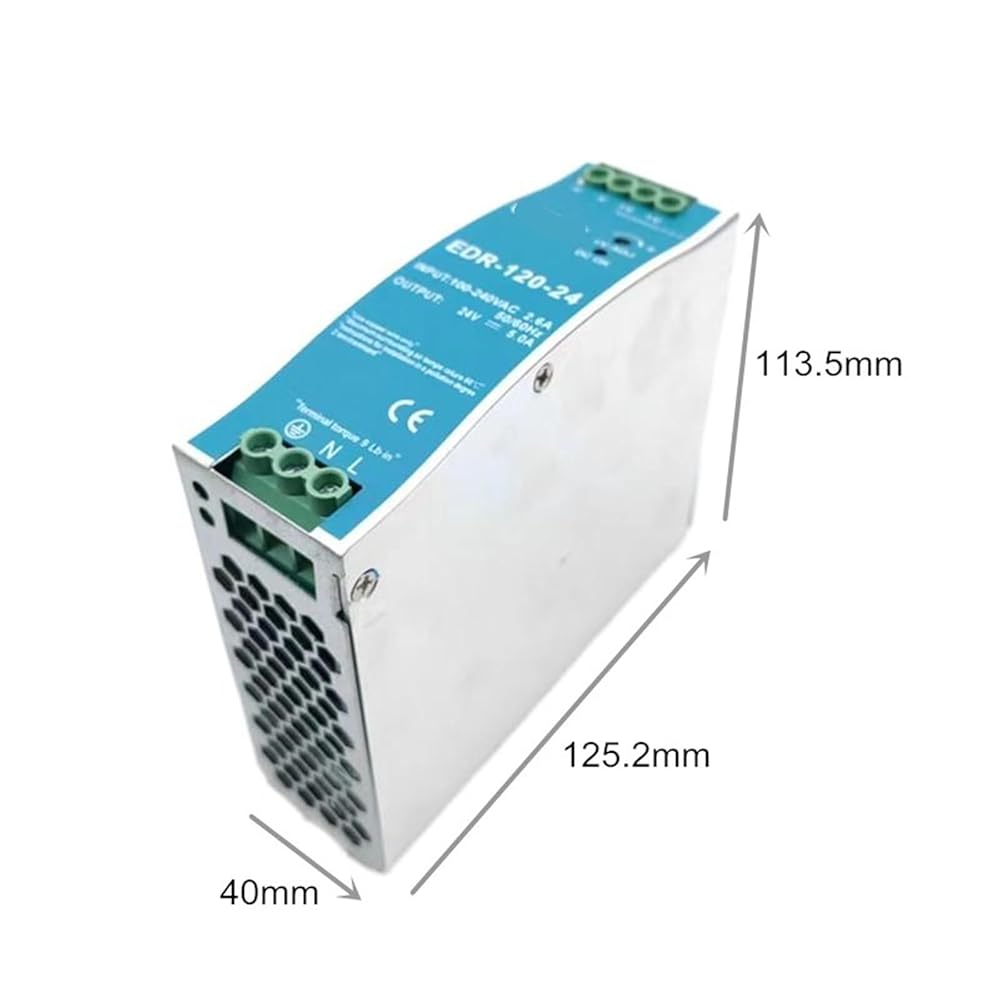

Dimension
40*125.2*113.5mm(*W*H*D)
Packing
0.55Kg:20PCS/12Kg
