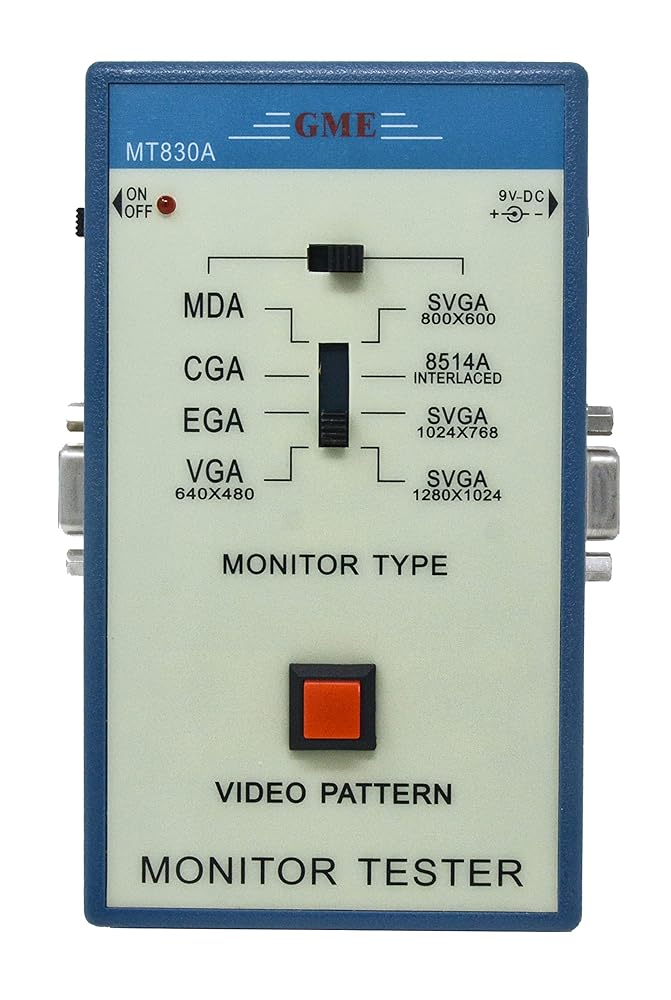

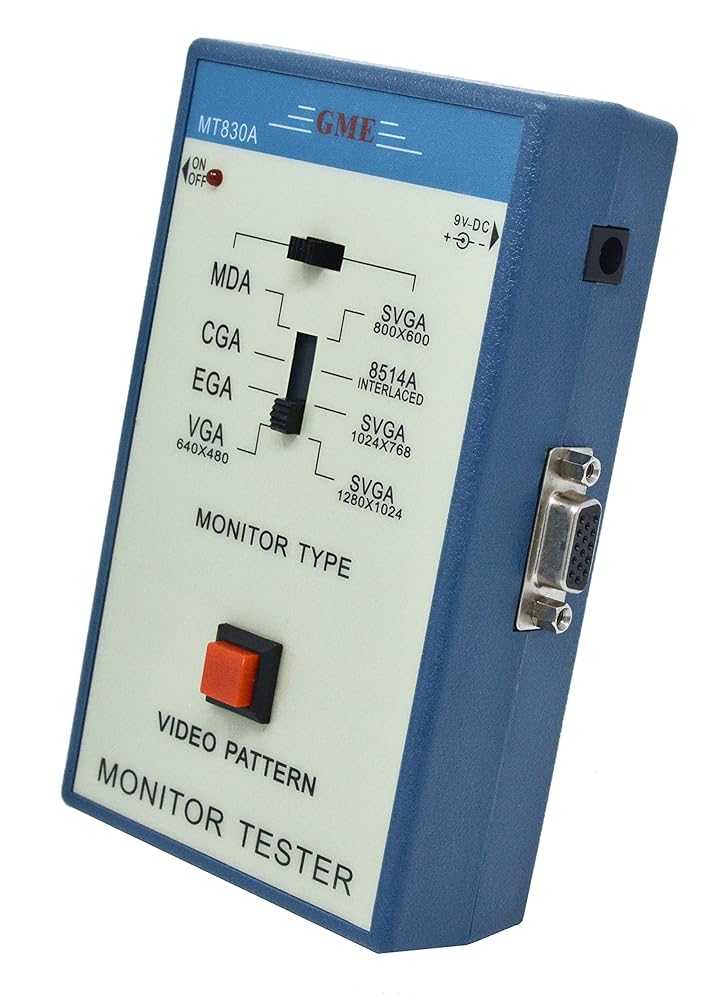

Model MT830A monitor tester is the perfect tool for those who need to quickly and easily troubleshoot, test, or align PC computer monitors. It features a wide range of testing resolutions ranging from MDA to 1280x1024. The video patterns generated by the MT830A provide accurate and comprehensive monitor troubleshooting and testing. Two separate monitor connectors output eliminates the need for any additional adapter. User friendly interface for easy operation.

Features:
- Supports 8 computer monitor scanning modes from legacy MDA to SVGA (1280x1024)
- Video test patterns including COLOR BARS, CROSS HATCH, DOT, CHECKER, and COLOR RASTER
- Single push button selectable patterns with hold down reverse
- Two separate monitor connectors: Digital/TTL9-D and Analog 15-HD
- AC adaptor power source or standard 9v battery operation
- Ideal for on-the-bench and in-the-field testing
- Easy to use, lightweight, portable, and affordable

Technical Specifications:

PC Format Supported:
- MDA
- CGA
- EGA
- VGA (640x480)
- SVGA (800x600)
- 8514A (1024x384)
- SVGA (1024x768)
- SVGA (1280x1024)

Video Patterns:
- COLOR BARS
- CROSS HATCH (choose from White, Red, Green, and Blue)
- DOT (choose from White, Red, Green, and Blue)
- CHECKER (choose from White, Red, Green, and Blue)
- RASTER (choose from White, Red, Green, and Blue)

Video Monitor Connectors:
- Digital/TTL9-D
- Analog 15-HD

Power: External 7.5V AC adapter or standard 9V battery

Dimensions: 5.7”(H) x 3.8”(W) x 1.5”(D)

Weight: 0.8 lb

Package Contents:
- One (1) - MT830A Monitor Tester Video Pattern Generator
- One (1) - User Manual
