Audio Transformers

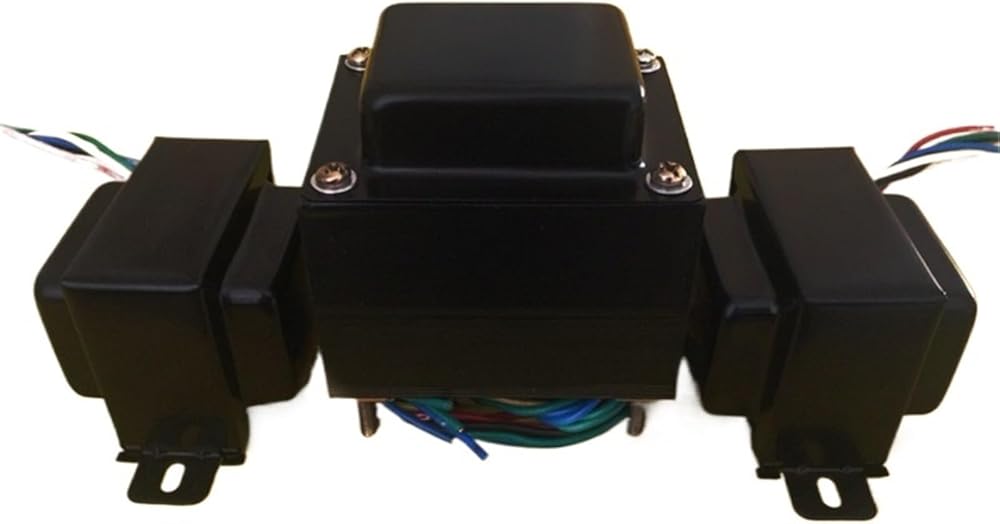

Amplifier transformer 111W Amplifier set of cattle transformer
0.5 silicon steel sheet pure oxygen-free copper wire

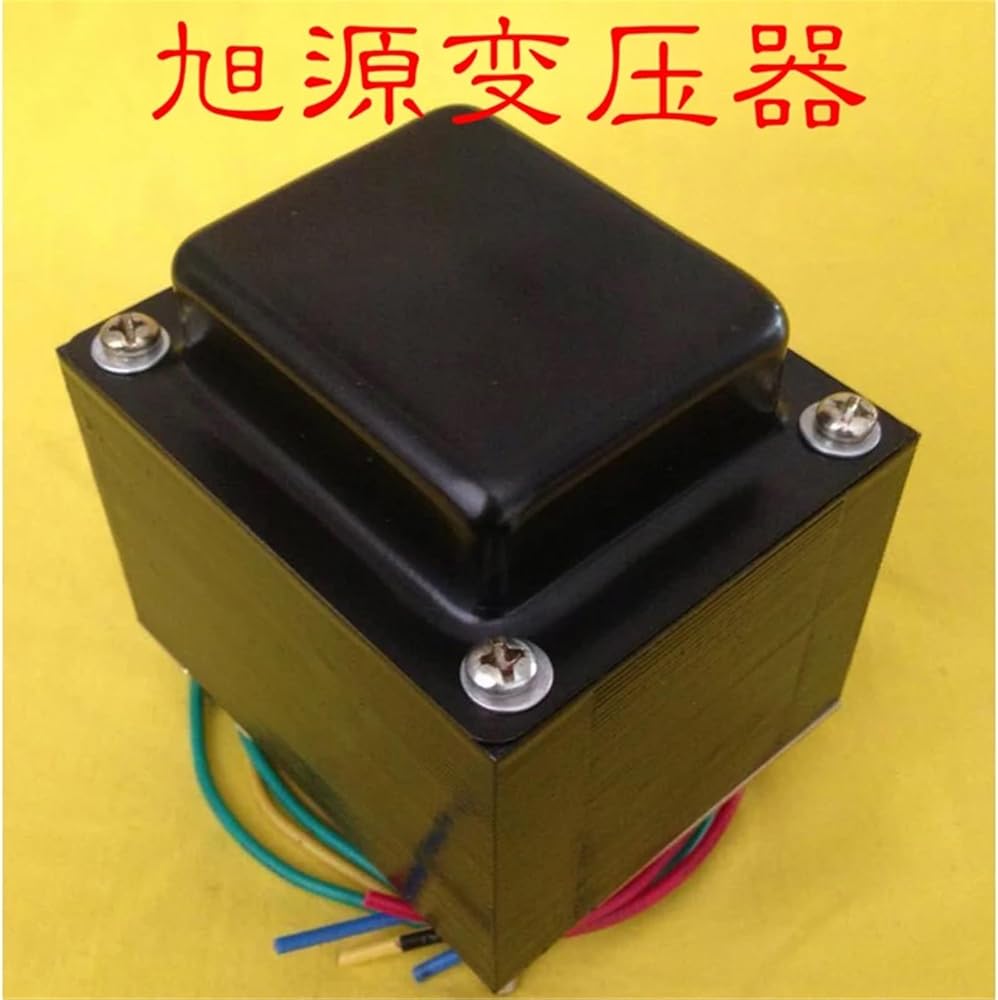

Xuyuan Transformer 111W tube transformer suitable for 6P1 6P3 6P6 6V6 6P14
Iron core 86X50 stack thickness 50
Input 0-220V-230V
Output 250V-0-250V 150ma
0--5V --6.3V 2.5A
0--6.3V 2A
3.15V-0-3.15V 2A

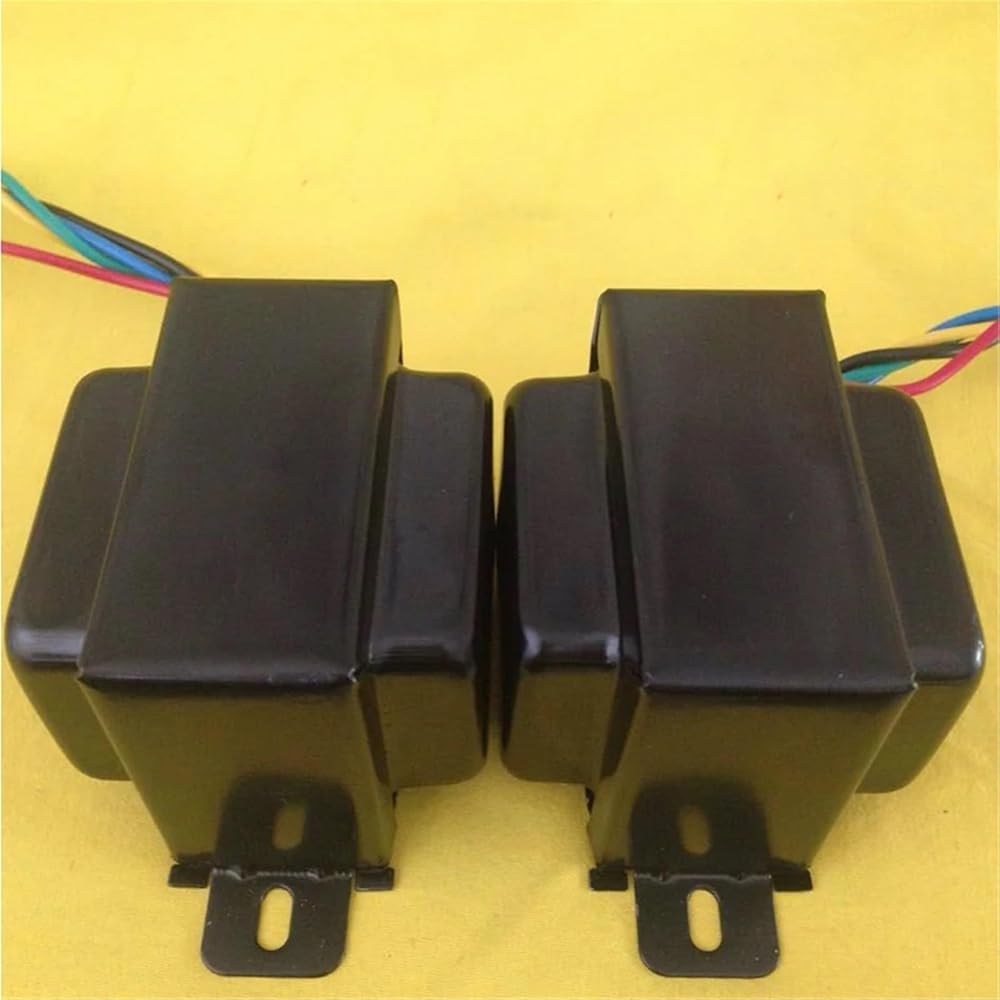

The output transformer parameters are as follows
5K single-ended output amplifier transformer
Skeleton 19X25
Silicon steel sheet 57 silicon steel sheet Oxygen-free copper wire
Primary impedance 5 K
Secondary impedance 0--4--8 ohm
Inductance = 18 H
Length 58MM
Width 54MM
Height 50MM
Mounting hole 72MM
