Globe Valves
Actuator Mode : Without Manual And Instruction
Structure : Ball
Port Size : DN15(1/2"), DN20(3/4"), DN25(1"), DN32(1-1/4"), DN40(1-1/2"), DN50(2")
Media : Water
Material : Brass
Temperature of Media : 0-95
Power : Electric
Standard or Nonstandard : Standard
Pressure : 1.6Mpa
Model Number : With Manual Switch Function Brass Electric 2-way Ball Valve
Power Source : AC
Drive voltage : 220VAC, 24VDC, 12VDC
Power : 6VA (only in the process of valve opening and closing)
Applicable medium : cold water, hot water or 50% glycol solution
Control method : 3-Wire two-control, 2-wire Power-off reset
Structure Forms : two-port
Running Time : 5-15 S
Valve body pressure : 1.6MPa
Applicable medium temperature : 0-95°C
Applicable ambient temperature : 0-65°C
Drive torque : 10 N.M
Lead length : 30 CM
Connection method : G Female thread

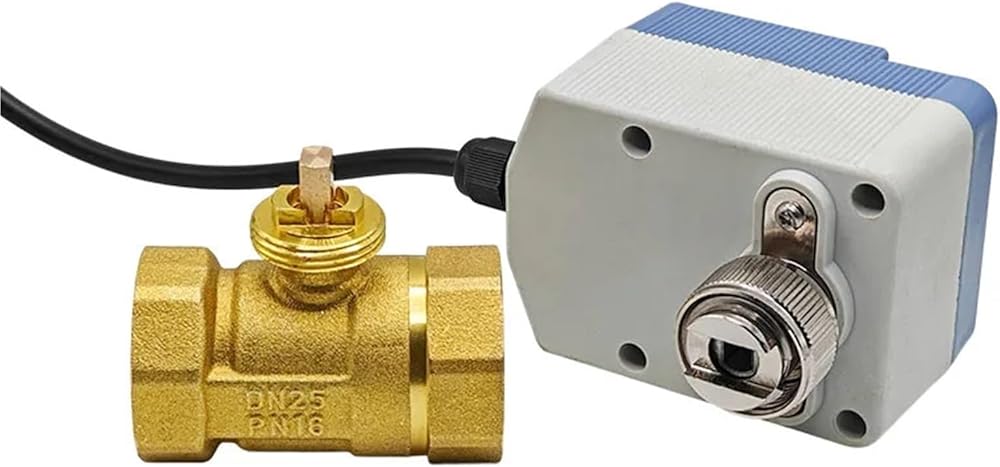

Type 1 : Brass Electric Ball Valve With Manual Switch Function
Type 2 : Motorized Ball Valve
Type 3 : electric drive crane
Type 4 : electric drive crane
