Note:
P Port: Input Port,
A. B Port: Output Port
R. S Port: Exhaust Port
P Port A Port, B Port S Port
NO ( Normally Open)
When the valve is power off, it is open,
when the valve is power on, it is closed.
P Port B Port, A Port R Port
NC ( Normally Closed)
When the valve is power off, it is closed,
when the valve is power on, it is open.
Operation pressure: about 1.47~7.84 bar
Can not work without air pressure
Inlet=Outlet Port Size:
4mm,6mm,8mm
10mm,12mm
Coil Voltage:
Solenoid Valve Type:
5 Port 2 position
(5 Way 2 Position)
Operation pressure: 1.5 - 8kgf/cm^2
Proof pressure: 1.5Mpa
Temp: 5-50C
Body Material: Aluminum alloy
Package Content:
1 PC Solenoid Valve
3 PCS Quick Fitting
2 PCS Muffler
Application:
* Control appropriate flow and direction.
* Electrically driven pneumatic power control.
Type : Valves

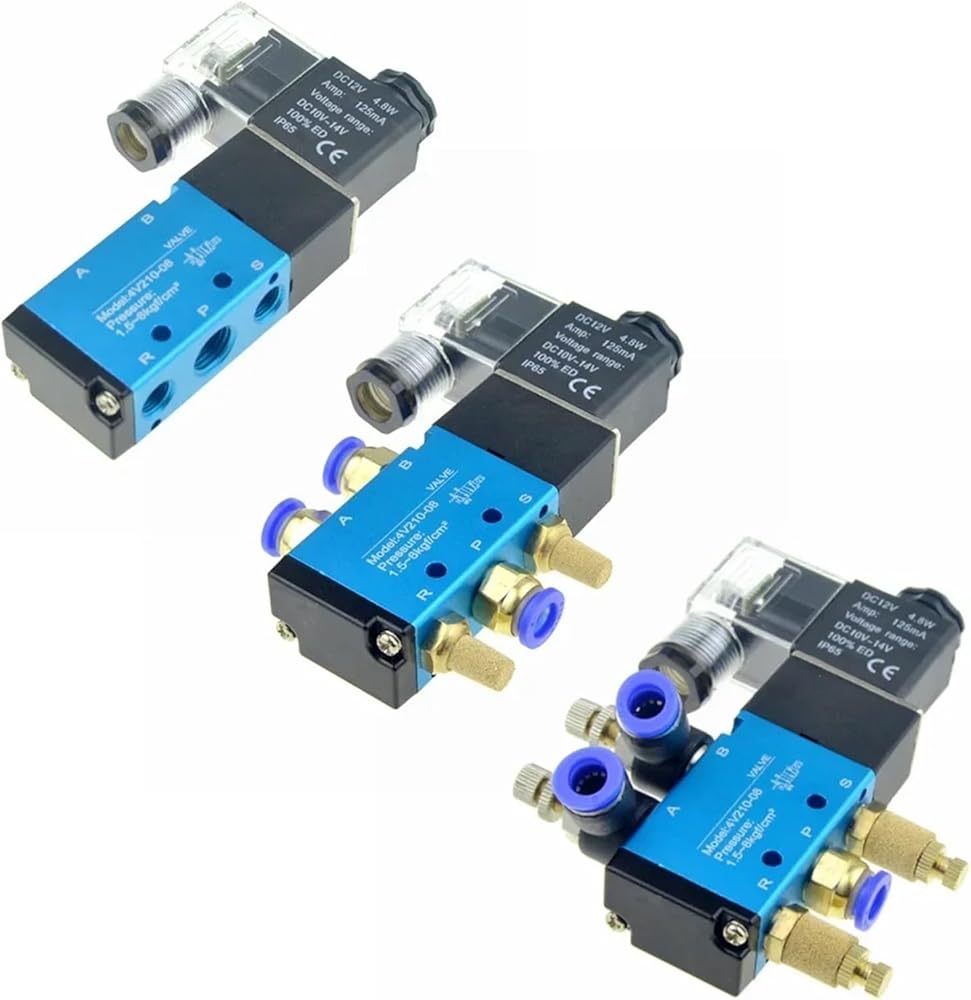

Model Number : 4V210-08
Solenoid Valve Type : 5 Port 2 position
Application : Pneumatic Power Control.
Material : Aluminum alloy
Port : 4mm,6mm,8mm,10mm,12mm OD Hose
DIS : 30%
