Globe Valves
Product information
Medium: Cold water, Hot water or 50% Glycol solution
Body material: Brass
Wiring mode: 2-wire, power-off reset
Working form: Normally Close/Normally Open
Driving voltage: 220VAC, 110VAC, 24VDC, 12VDC
Power consumption: 6 W (only when the valve is opened and closed)
Torque: 8 N.M
Applicable medium temperature: 0-90
Action time: 5-15 S
Nominal Pressure: 1.6 Mpa
Lead length: 30 CM
Connection method: Female thread
==========
NC or NO : Normally Closed
Actuator Mode : Without Manual And Instruction
Structure : Ball
Port Size : 1/2"(DN15), 3/4"(DN20), 1"(DN25), 1-1/4"(DN32),1-1/2"(DN40), 2"(DN50)
Media : Water
Material : Brass
Temperature of Media : Normal Temperature
Standard or Nonstandard : Standard

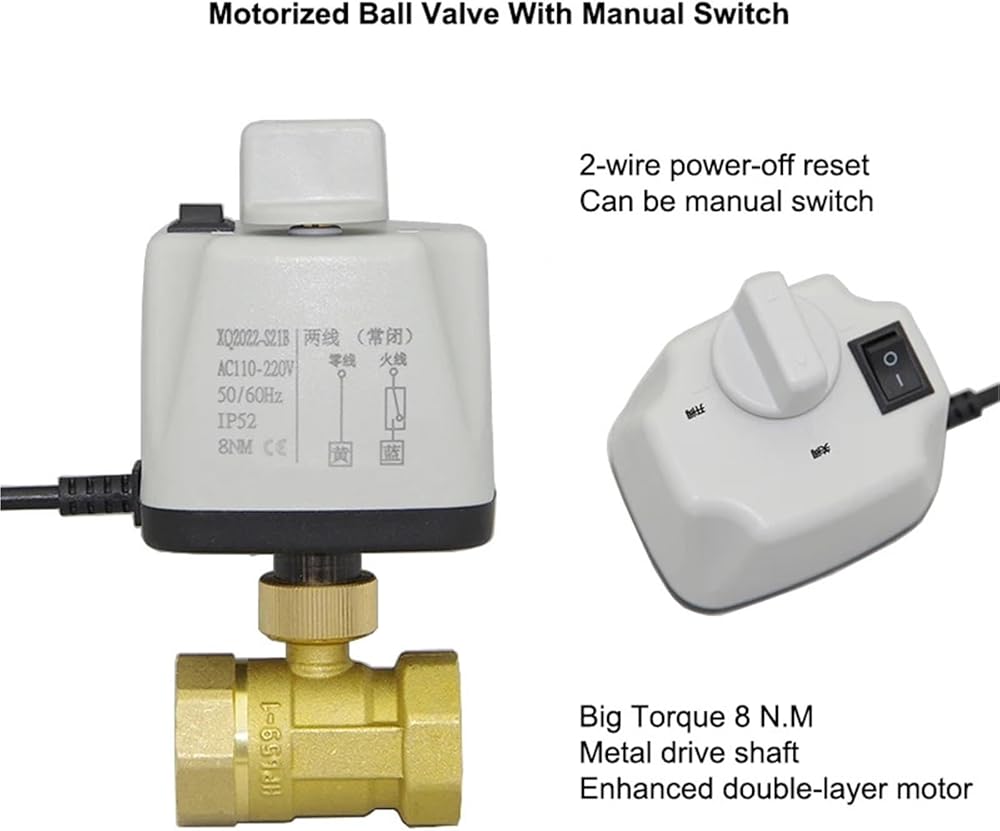

Model Number : Motorized Ball Valve With Manual Switch
Power Source : AC
