Globe Valves
Structure : Ball

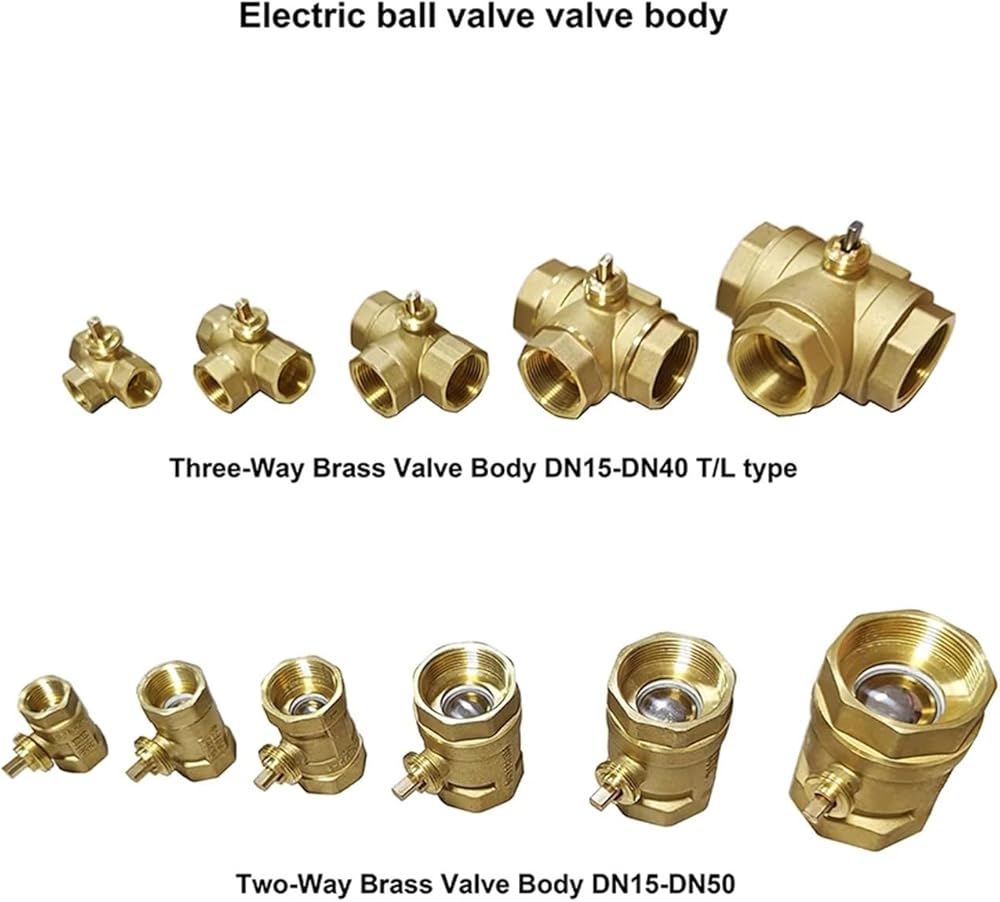

Port Size : 1/2"(DN15), 3/4"(DN20), 1"(DN25), 1-1/4"(DN32),1-1/2"(DN40), 2"(DN50)
Material : Brass
Standard or Nonstandard : Standard
Body material : Brass

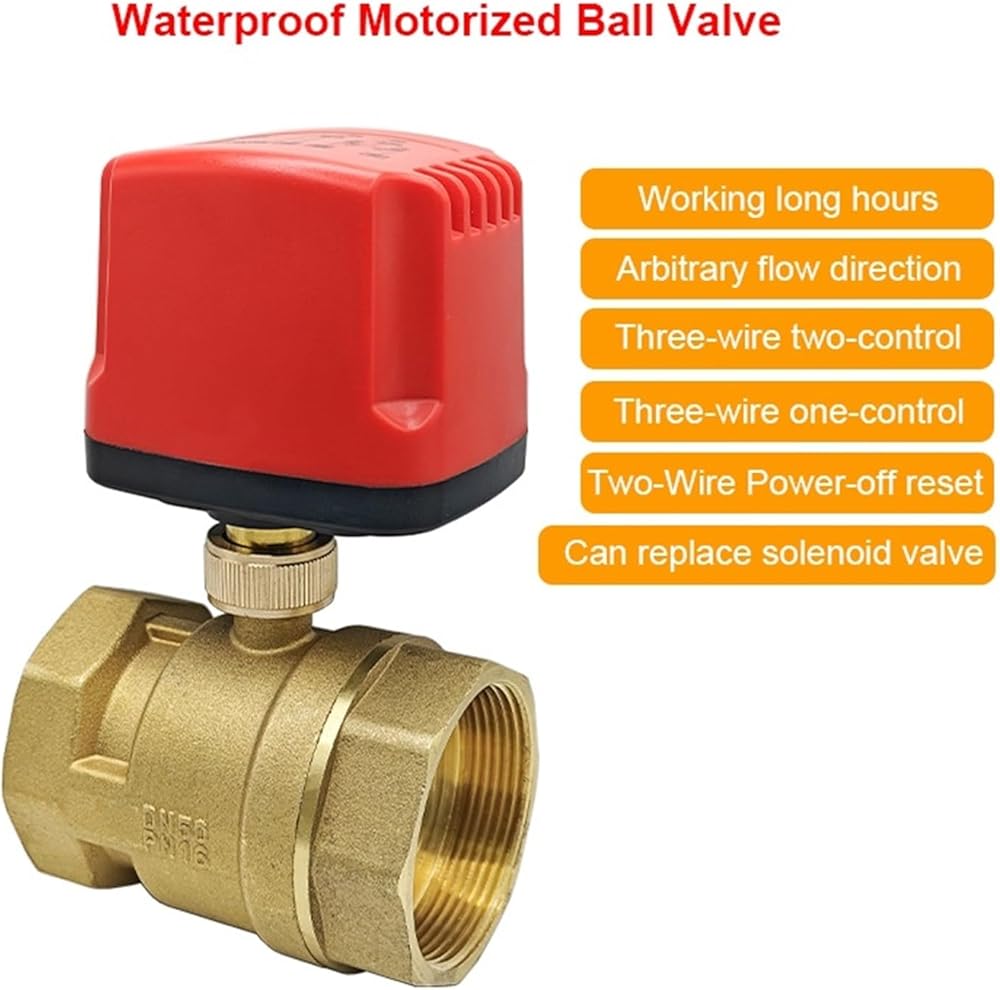

Wiring mode : CR02(Three wire two control), CR03(Three-wire one-control), CR04(Two-wire power-off reset)
Driving voltage : 220VAC 24VDC 12VDC

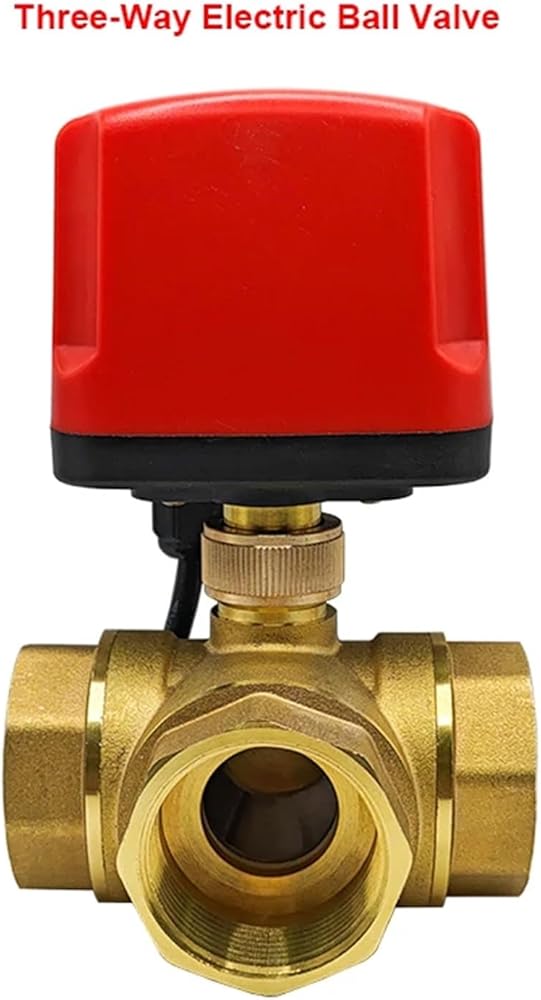

Structure Forms : Two-Way/Three-Way
Applicable medium temperature : 0-95
Power consumption : 6 W (only when the valve is opened and closed)
Action time : 5-15 S
Nominal Pressure : 1.6 Mpa
Lead length : 30 CM
Connection method : G female thread
