Filter Valves

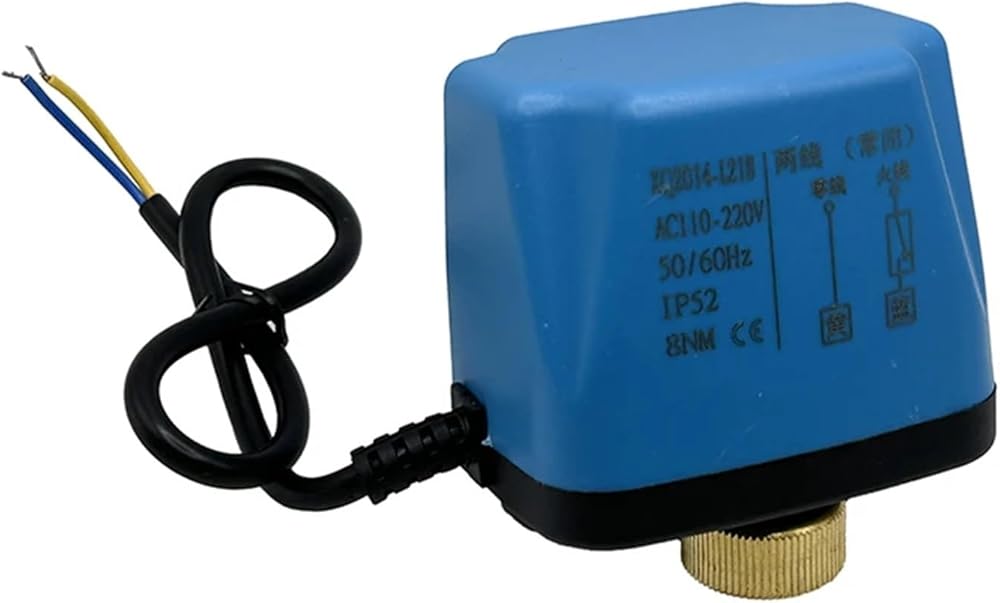

Package list:1PC* Ball Valve Actuator
Material: Metal
Torque:8 N.M
Specification
Power Supply: AC220V/DC12V/DC24V
Operation Mode:Two Wire
Power: 6W
Running Time: 5-15 Seconds
CR04: 2-wire, (power-off reset mode) wiring diagram
Voltage: DC12V, DC24V, AC220V, ADC9-24V
Remarks: POWER is an outside connect working power supply, and a farad capacitor is used internally as a backup power supply. The charging time is fast, and it can work in occasions with high switching frequency.
1. SW is connected with OPEN, the valve is opened, and the internal power is automatically cut off when it is in place, and the valve remains in the open state.
2. The SW is connected with CLOSE, the valve is closed, and the internal power is automatically cut off when it is in place, and the valve is kept in the closed state.
