Constructed from durable, erosion-resistant stainless steel for long-lasting performance in high vacuum applications.
devised for high vacuum sealing with a copper gasket and knife-edge flanges, achieving operation down to 10-13 torr (10-11 Pa).
Compatible with both male and female VCR connectors, allowing seamless adaptation to CF flanges for versatile connections.
Can withstand heating up to 450 °C for effective bake-out processes, ensuring optimal performance in demanding environments.
Includes CF flange with bolt thru-holes for easy installation and secure mounting in various vacuum systems.
وصف
Description

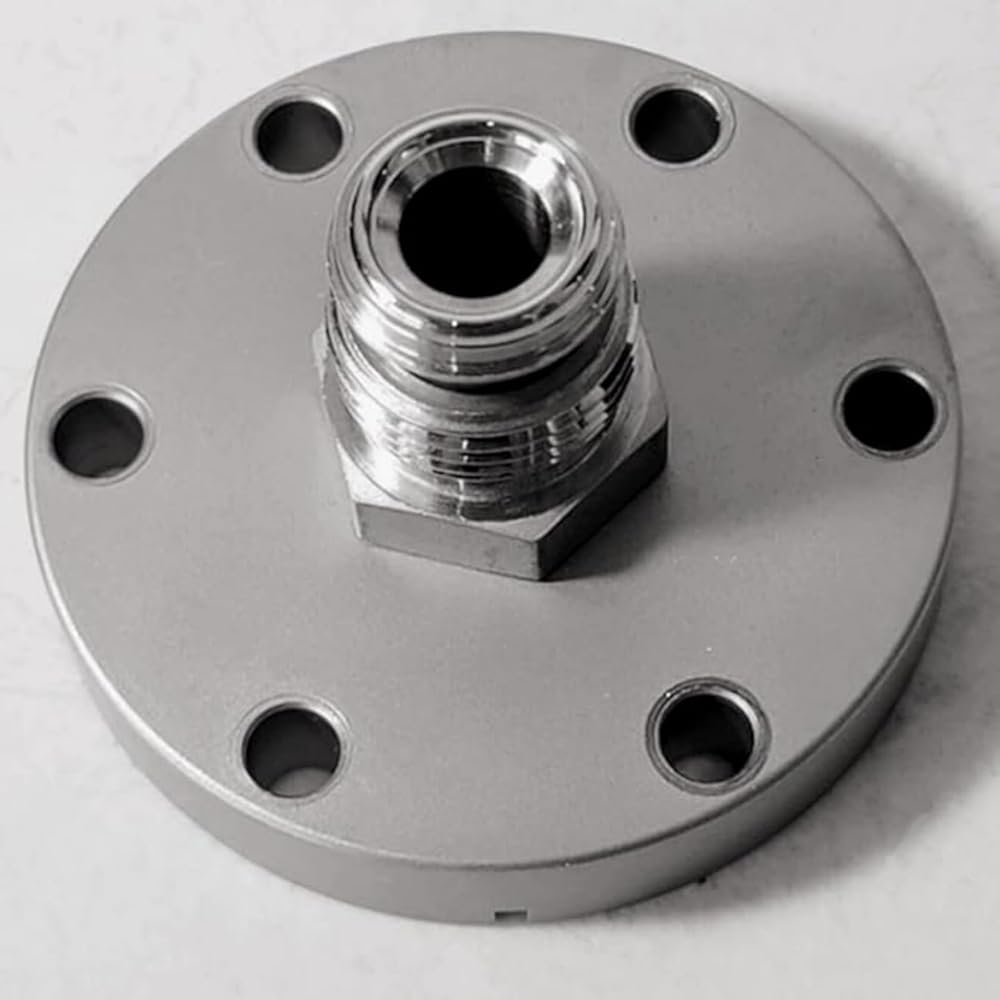

Male VCR to KF Adapters allow for the adaptation of a Male VCR fitting to a CF flange as a single interface vacuum component. Used to connect items with two different type flanges.
VCR fittings seal by the compression of a gasket between two highly polished beads on the surfaces of the VCR connectors.
These fittings use a copper gasket and knife-edge flanges to achieve the high vacuum seal and can operate down to 10-13 torr (10-11 Pa) and can be to 450 °C for bake-out.
Adapters available with male and female VCR connectors terminating in either CF or KF flanges.
Specifications:
CF flange with bolt thru-holes.
These vacuum fittings are made of erosion resistant stainless steel.
Package included:
