Globe Valves
Product Parameters:
Valve material: 304 stainless steel
Valve body size: DN8(1/4") ; DN10(3/8") ; DN15(1/2") ; DN20(3/4") ; DN25(1") ; DN32(1-1/4 ")
Voltage: DC12v ; DC24v; DC9v; DC36v
Torque output: 2.5 N.M
Open/close time:5-7 seconds.
Working pressure: 0-1.0 MPa
Pressure loss: below 0.1MPa
Medium temperature 0-100
Environment temperature:-15-50
Working current: 200mA
Startup current: 1A
Working medium: water, air, gas.
Actuator rotation:90 degree
Special function:manual function
Package includes:

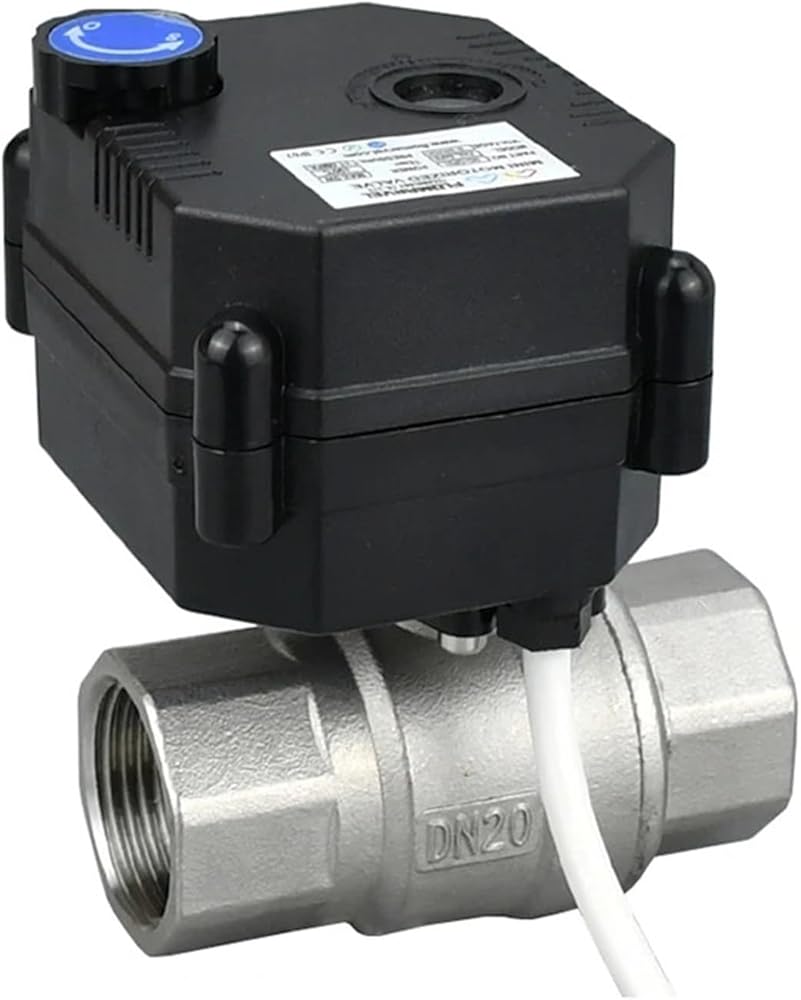

1 pc motorized ball valve
Wiring options:
CR01 Reversal of positive and negative poles
1. The red wire connects to positive terminal, the black wire connects to negative terminal, and valve opens;
2. The black wire connects to the positive terminal, the red wire connects to the negative terminal, and the valve is closed;
After the actuator is in place, the internal power will be cut off automatically and the valve will remain open or closed.
...
CR02 Three-wire two-control mode
1. The red or green wires are connects to the positive pole, and the black wire connects to the negative pole of the power supply;
2.SW connects the red wire, the valve is open; SW connects the green wire, the valve is closed;
After the actuator is in place, the internal power will be cut off automatically and the valve will remain open or closed.
...
CR03 Three-wire one-control mode
1.SW connection:red and green wires are connected to the positive terminal at the same time, black is connected to the negative terminal, the valve is open;
2.SW disconnected:red wire connected to the positive pole, black wire connected to the negative pole, the green wire is not connected, the valve is closed;
After the actuator is in place, the internal power will be cut off automatically and the valve will remain open or closed.
...
CR04 Two-wire power off reset mode
1.The red wire connects to positive terminal, the black wire connects to negative terminal;
2.When SW is connected, the valve opens;
2.when SW is disconnected, the backup power is triggered and the valve returns to the closed state.
Instructions for using the manual function:
1. When using the manual mode, lift the manual knobs, turn the button left or right, and observe the valve opening/closing position through the sight glass until the valve is in place
2. Press the knobs before switching back to electric mode.
==========
Actuator Mode : With Manual And Instruction
Structure : Ball
Media : Water
Material : Stainless steel
Standard or Nonstandard : Standard
Pressure : Low Pressure
Power Source : DC
