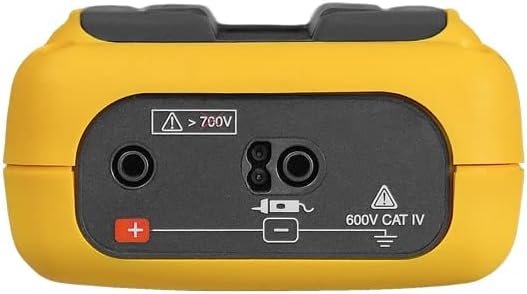

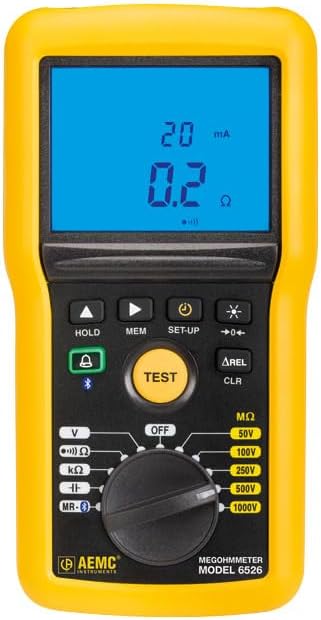

AEMC Instruments 6526 True Megohmmeter 1 kV Insulation and Multi-Function Tester (Resistance, Continuity, Frequency, and Voltage) 50V, 100V, 250V, 500V and 1000V Insulation Test Voltages 200GO Max Insulation Resistance DAR and PI ratios calculated Megohmmeter, 50V to 1kV, 200Gohm, DAR, PI, Dataview, 6500 Series The Megohmmeter Model 6526 is a handheld, battery-powered, multi-function 1000V digital insulation resistance tester. It is designed to measure Insulation Resistance, Continuity, Resistance, Capacitance, Frequency, and Voltage. With a safety rating of 600V CAT IV and IP 54, the Model 6526 performs insulation resistance at 50, 100, 250, 500, and 1000V measuring insulation values up to 200GO. Meter also incorporates a 700V AC & DC True RMS voltmeter and continuity testing with a selectable 20mA or 200mA test current. The Model 6526 includes a Timer and Lock function which allows the user to operate the unit hands-free.Automatic safety check protects the user and meter with audiovisual signals and test inhibition when >25V is present on a test sample. DAR, PI, Alarms, and backlit Pass/Fail test functions are standard. Large digital/analog multi-function display provides clear and easy readings enhanced by a bright blue electroluminescent backlight. A magnetic stand holds the meter to a metal surface or cabinet during the test.Optional Remote Test Probe accessory with flashlight simplifies repetitive testing and helps access hard-to-reach, poorly lit, test areas. With the possibility to save up to 1300 tests in memory and Bluetooth communication with DataView software, the Model 6526 will work well in industrial environments where a wide range of voltages, up to 1000V, is desired.
