Specification

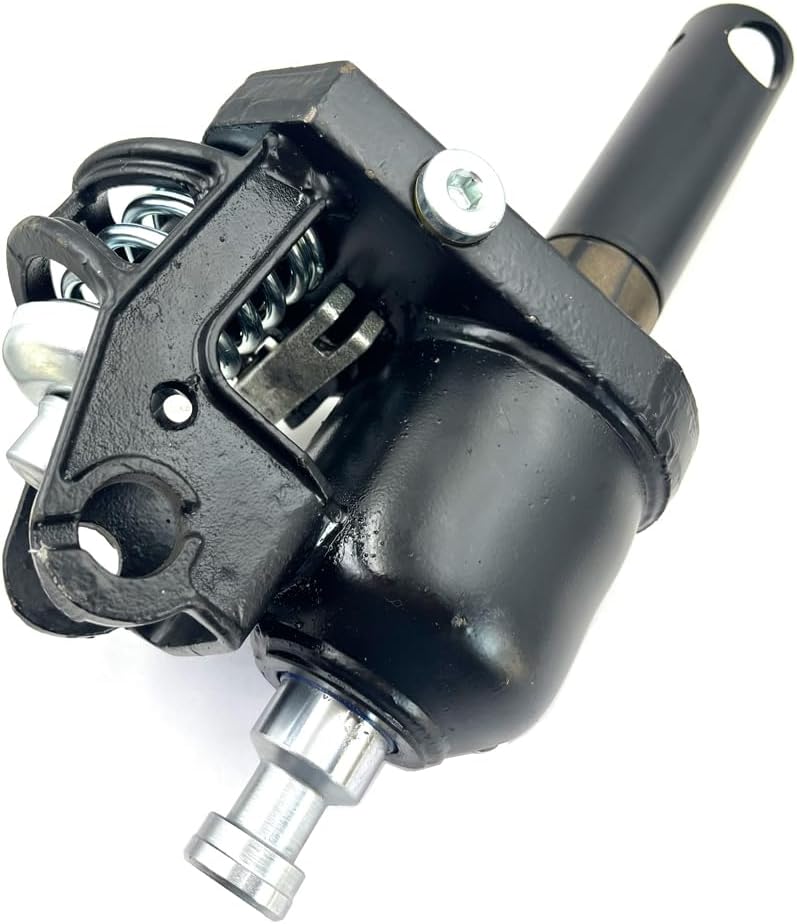

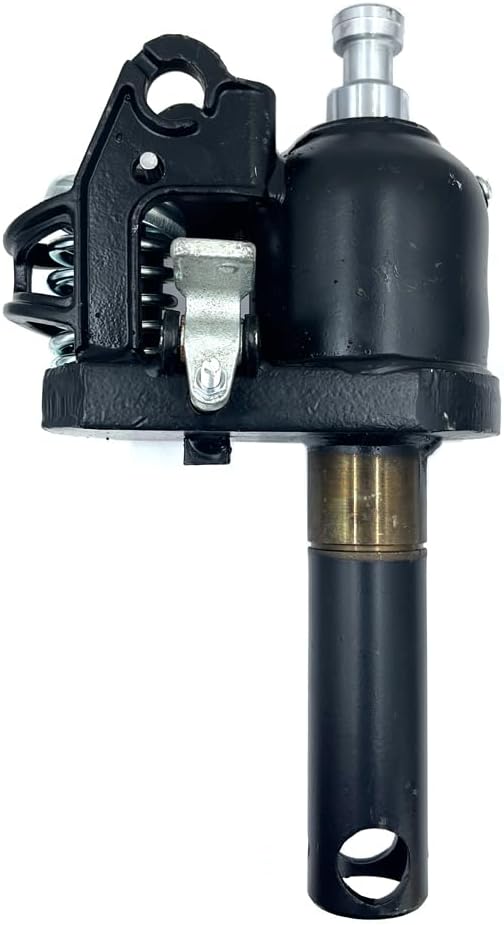

Product Name: Pallet Jack Truck pump

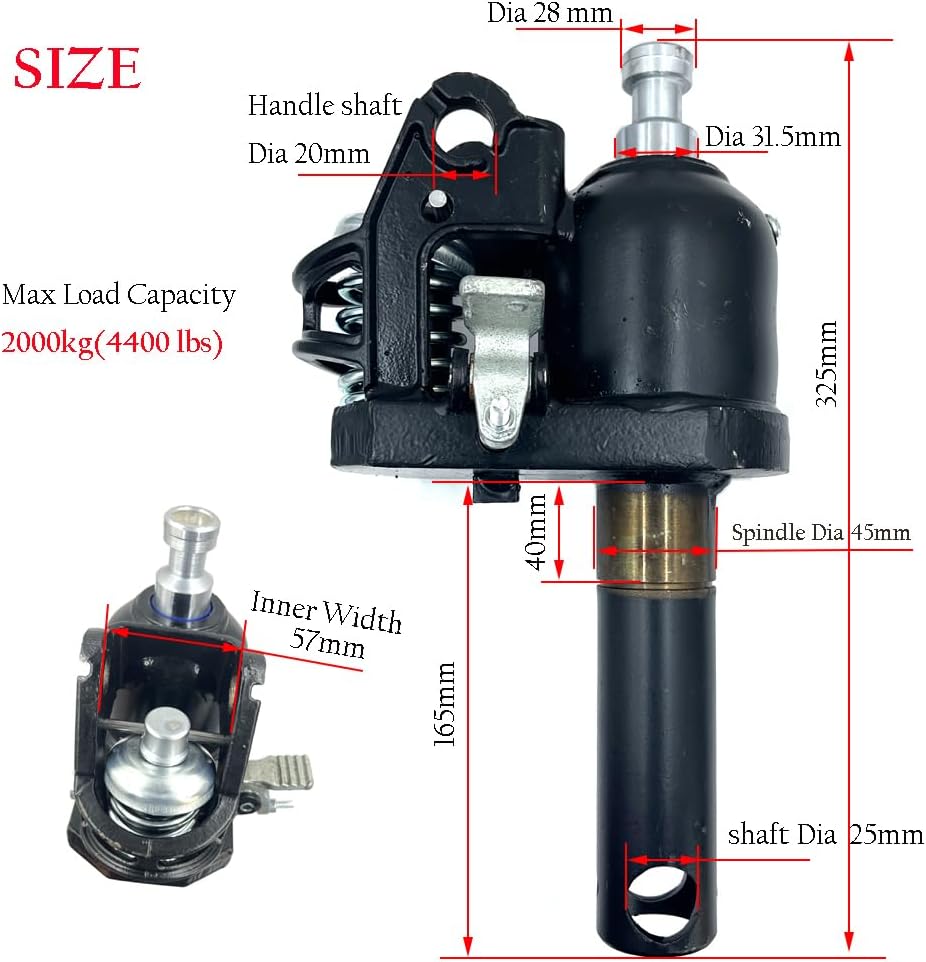

Pallet Jack Pump Dimensions:
Spindle Diameter: 45mm
Circlip Groove Spacing: 40mm
Large Wheel Axle Hole Diameter: 25mm
Handle Shaft Diameter: 20mm
Height: 165mm
Piston Tip Diameter: 28mm
Load Capacity: Rated for 4400 lbs

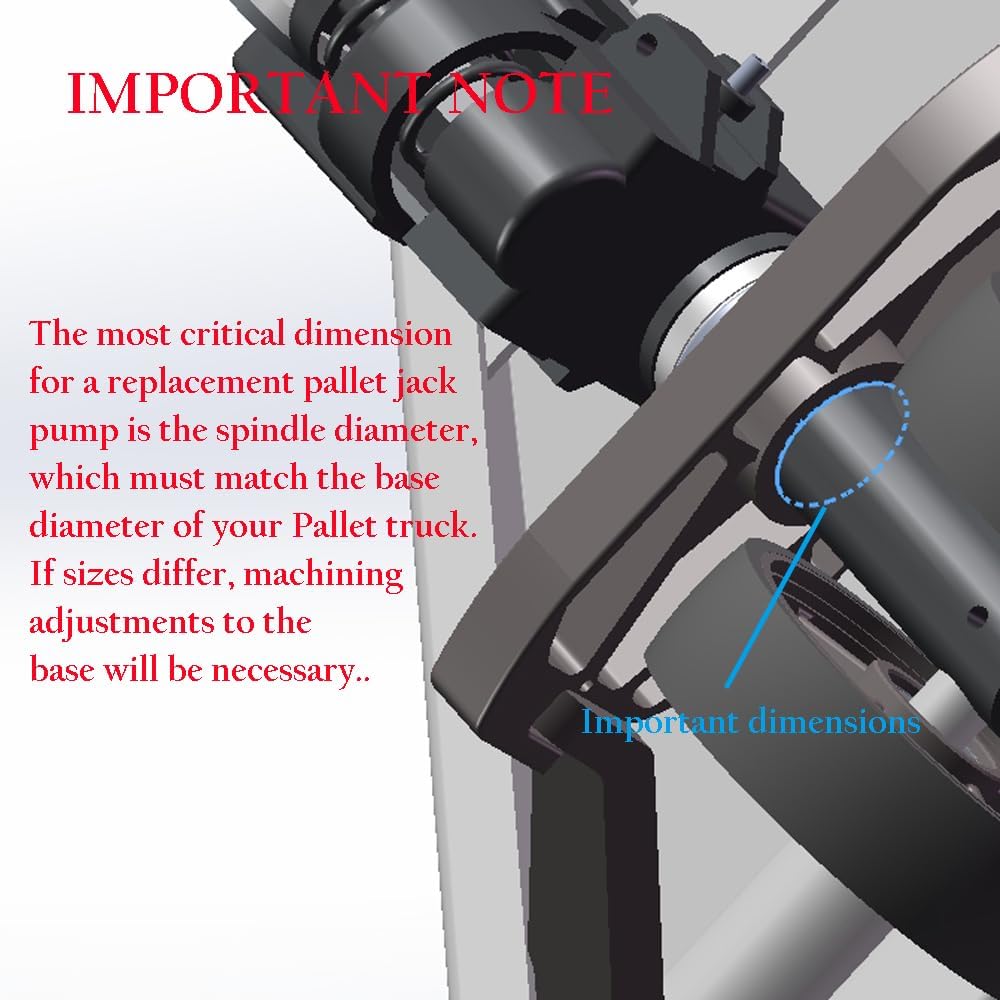

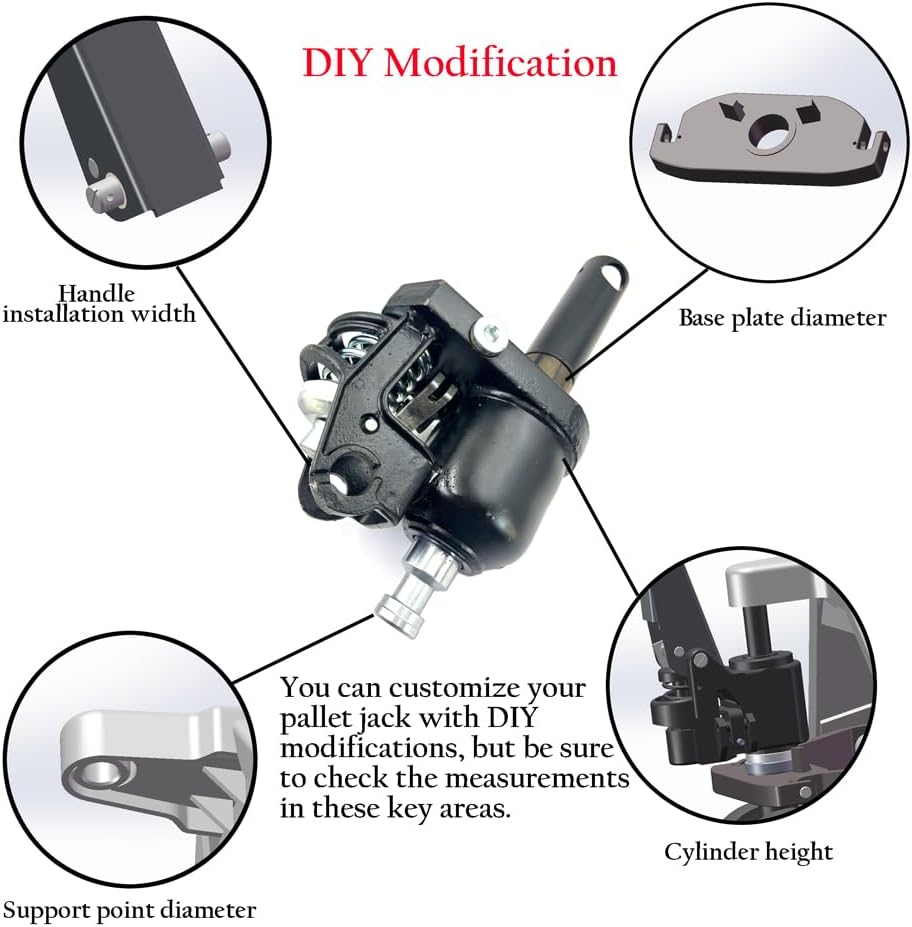

Important Note: These size are critical for compatibility with your pallet jack. Verify all dimensions before installation or replacement.The most critical dimension for a replacement pallet jack pump is the spindle diameter, which must match the base diameter of your Pallet truck. If sizes differ, machining adjustments to the base will be necessary.

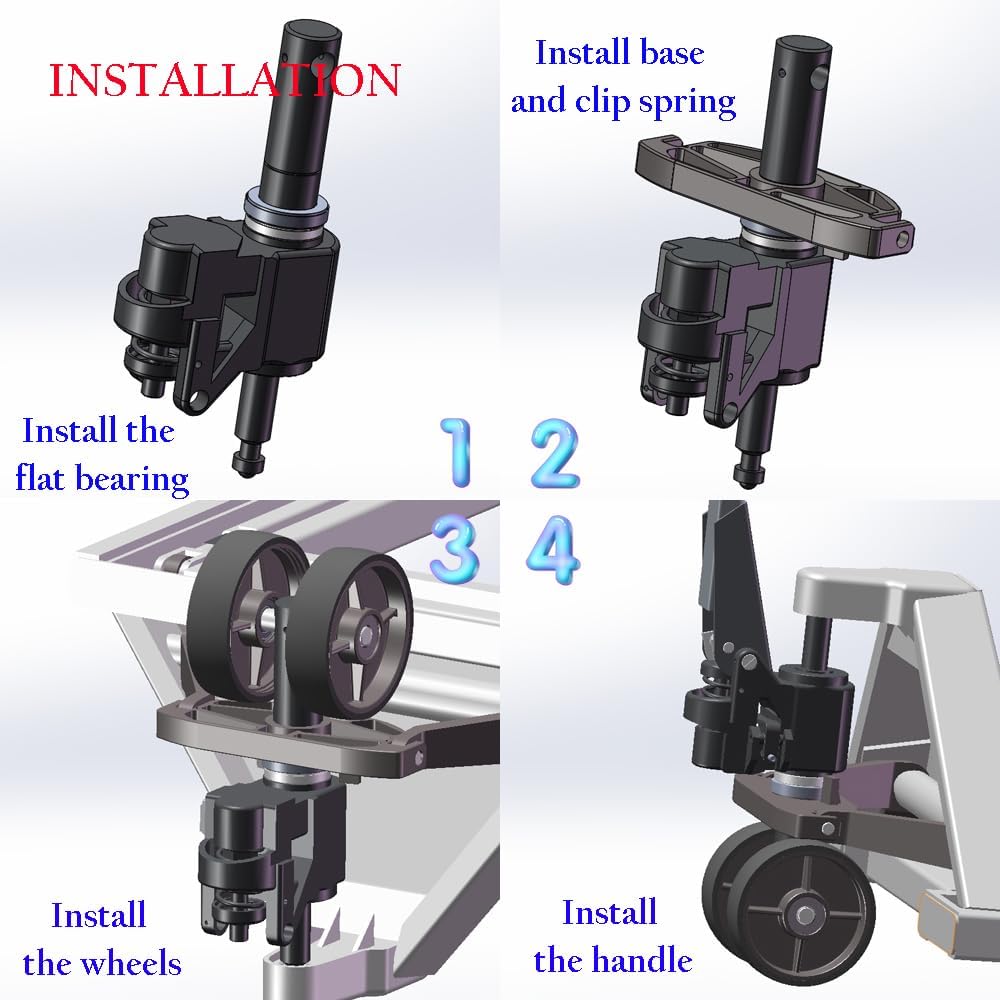

Installation Steps
Invert the pallet truck, detach the original pump, fit the plane bearing onto the spindle, install the oil cylinder into the base (secured with a snap ring), and attach the pallet jack wheel.
Include
1pcs x45mm Shaft Pallet Jack Pump
