مميزات خاصة

Type: EC16 Rotary Encoder with Switch; Adjustment method: 360 Degree; Number of pulses: 24
Working Signal Pin Numbers: 3; Mounting Pin Number:2; Shaft Type: D Type
Rated Voltage: 5 Volt; Maximum operating current (resistive load)：10mA Max
Working Signal Pin Numbers: 3; Mounting Pin Number:2; Shaft Type: D Type
Applications: Rotary encoders are widely used in industrial controls, robotics, photographic lenses, computer input devices, etc

وصف

Specification

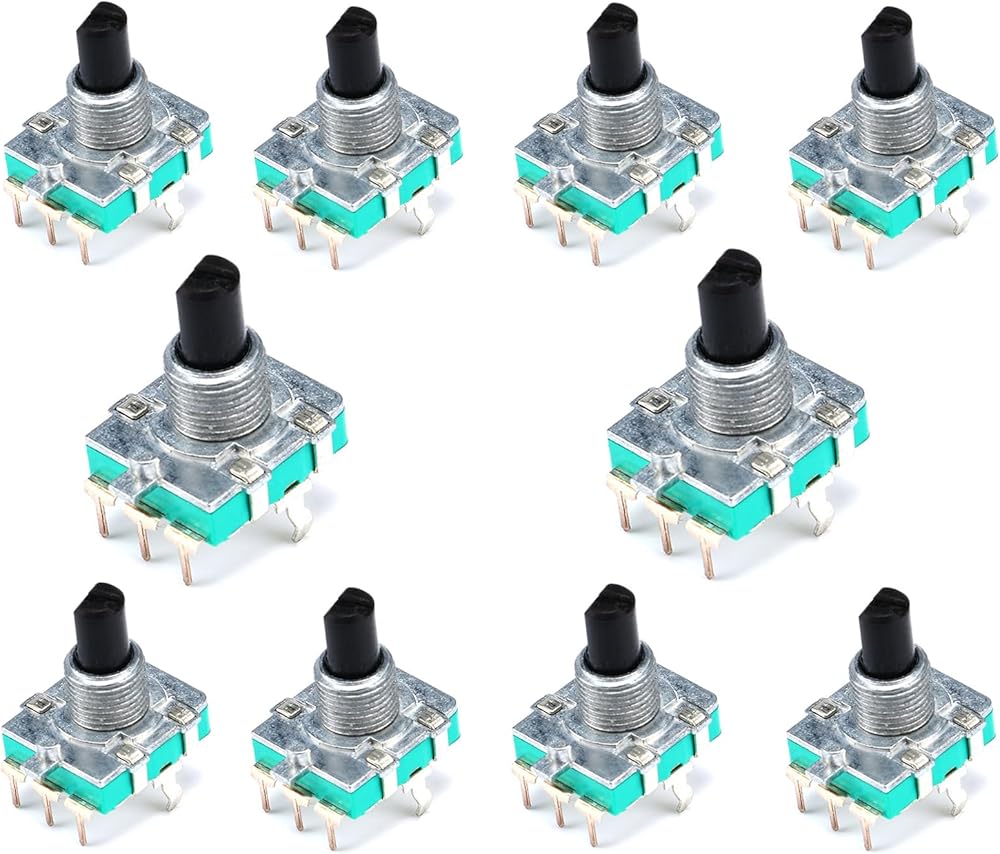

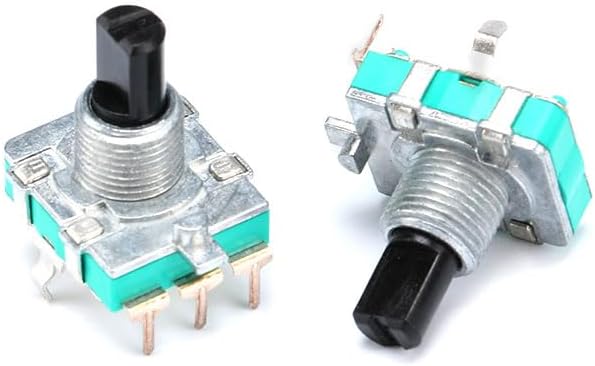

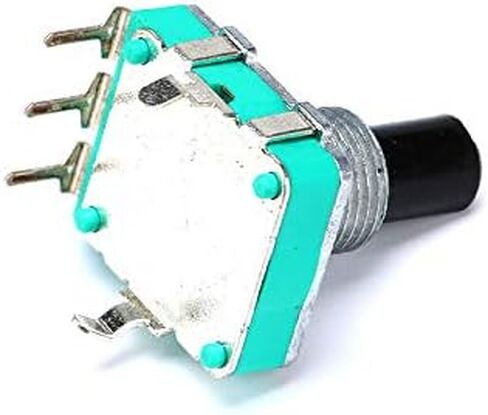

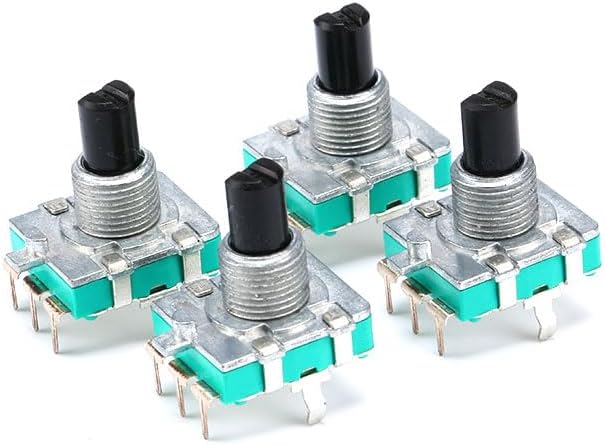

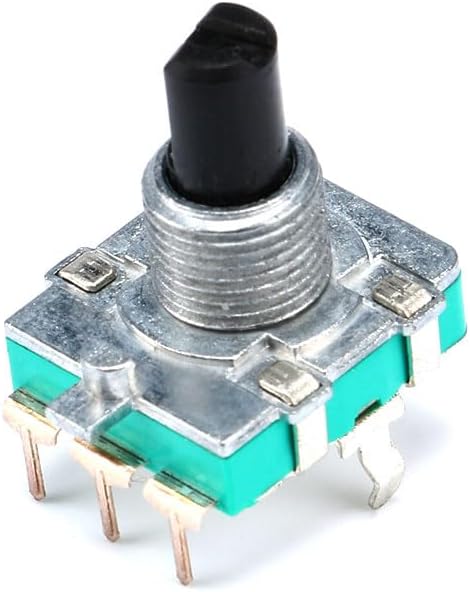

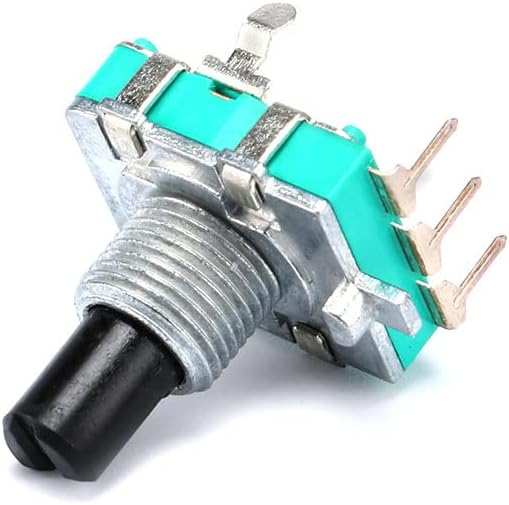

Type: EC16 Rotary Encoder with Switch
Adjustment method: 360 Degrees
Number of pulses: 24
Working Signal Pin Numbers: 3
Mounting Pin Number:2
Shaft Type: D Type
Rated Voltage: 5 Volt
Maximum operating current (resistive load)：10mA Max
Shaft Diameter: 6mm/0.24"
Shaft Height: 15mm/0.59"
Total Dimension: 20.8mm x 17.5mm x 25.7mm / 0.82" x 0.69" x 1.01"(L*W*H)
Contact resistance: ≤100mΩ(Voltage test at DC 5V 1mA)
Insulation resistance: 100MΩ Min
Bouncing: ≤10ms
Applications: Rotary encoders are widely used in industrial controls, robotics, photographic lenses, computer input devices, etc
