1. High strength, high torque, good comprehensive mechanical properties
2. Low vibration, low noise, easy to clean and maintain, easy to operate
3. Smooth surface can withstand slight wear and tear, hardened to improve work efficiency.

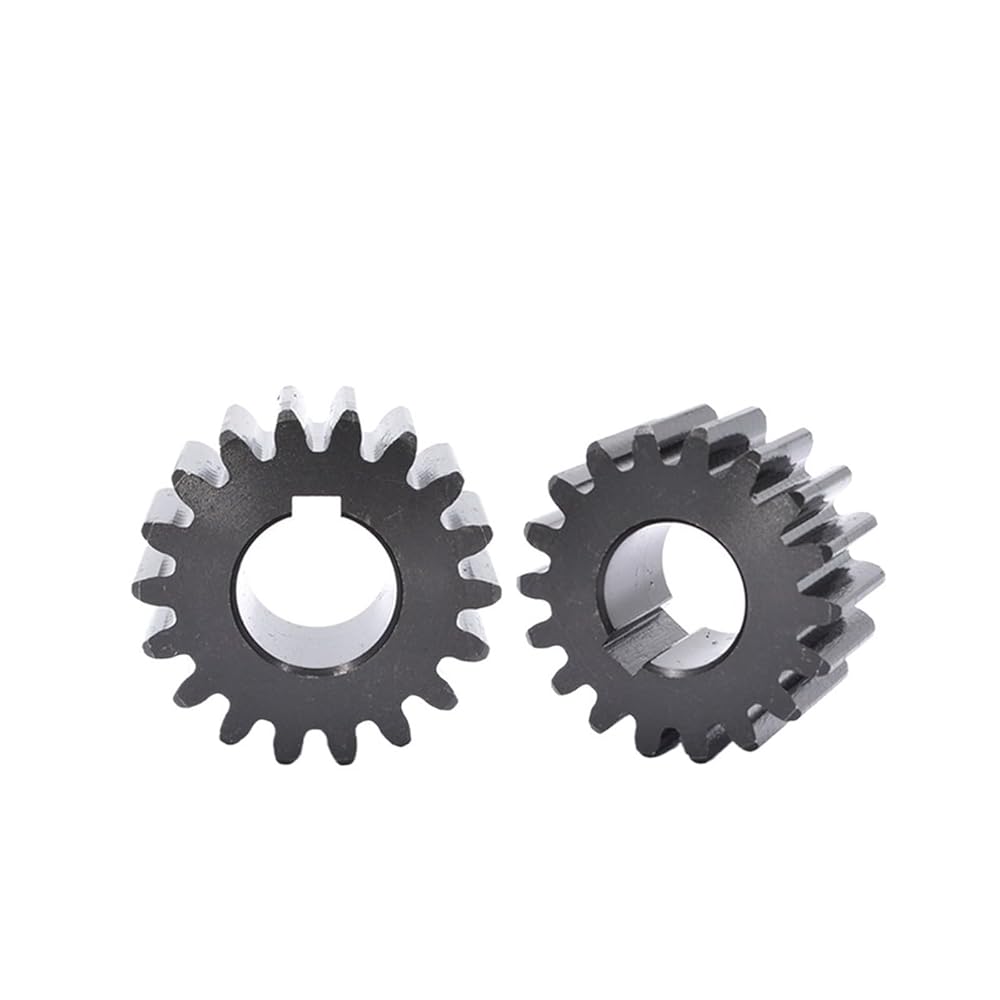

Name: Spur Gear
Material: 45# Steel
Surface Treatment: Blackened
Module: 2M
Pitch: 6.28mm
Thickness: 20mm
Number of Teeth: 22 Teeth
Keyway Bore:
14mm-keyway 5x2.3mm
15mm-keyway 5x2.3mm
16mm-keyway 5x2.3mm
18mm-keyway 6x2.8mm
20mm-keyway 6x2.8mm
22mm-keyway 6x2.8mm
24mm-keyway 8x3.3mm
25mm-keyway 8x3.3mm
Tooth Surface Hardness: Hardened Tooth Surface
E.g.: 22 Teeth (OD 48mm) (OD=Outer Diameter)
