Description

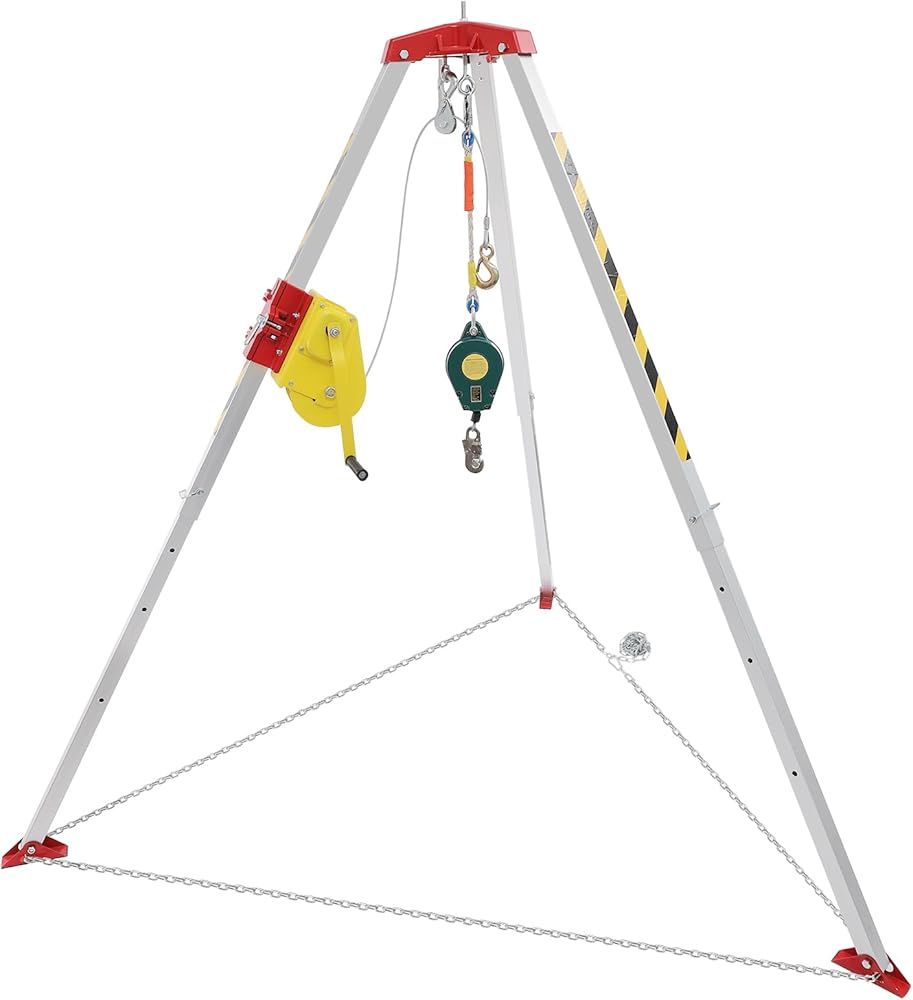

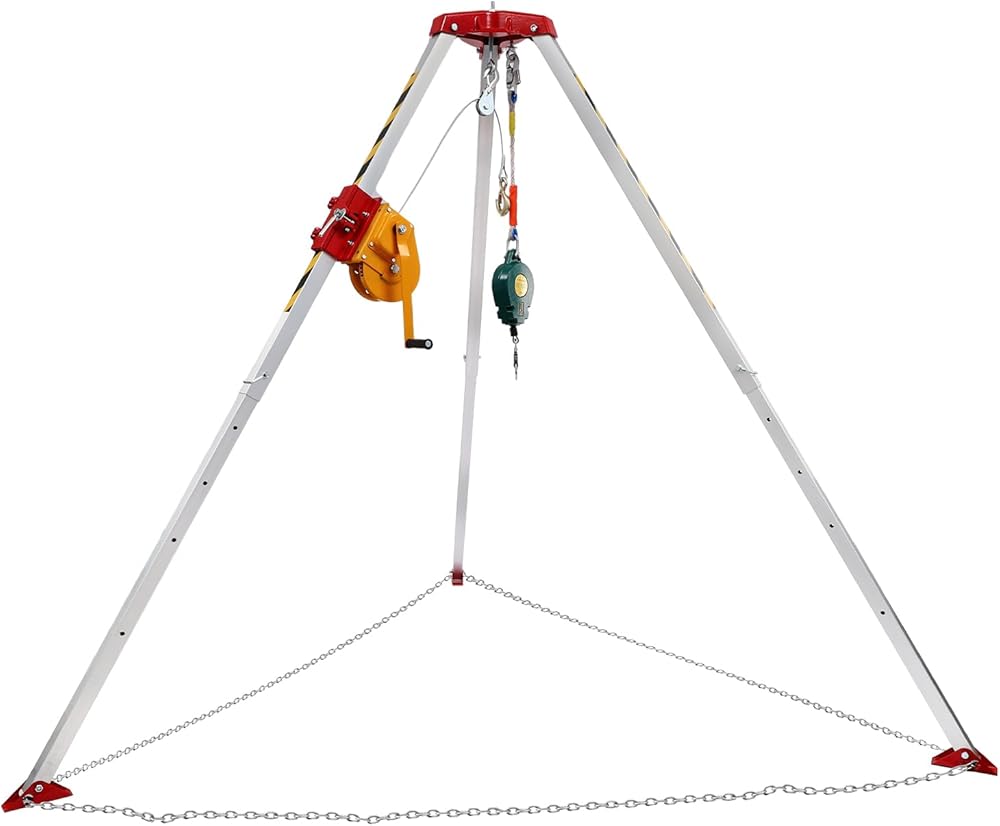

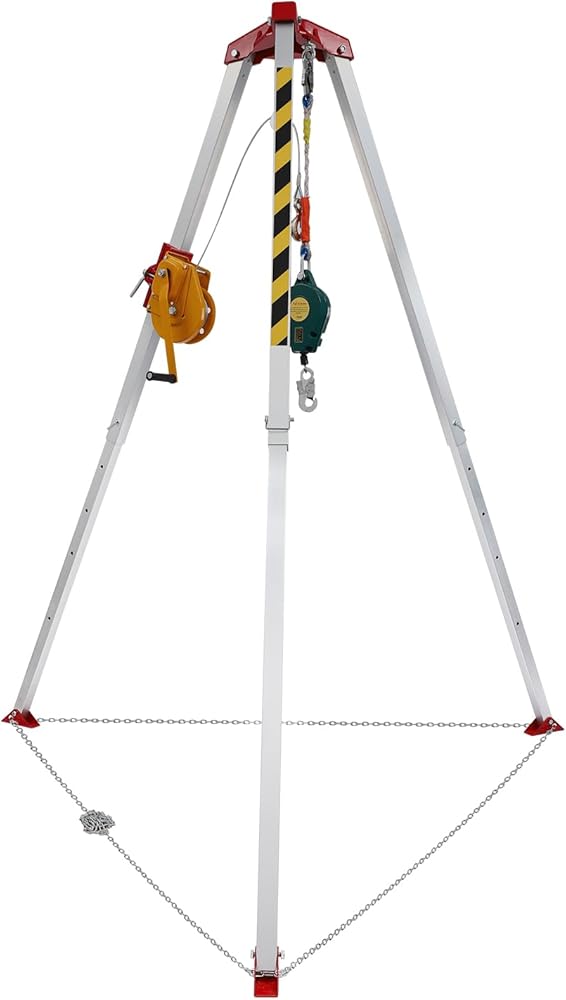

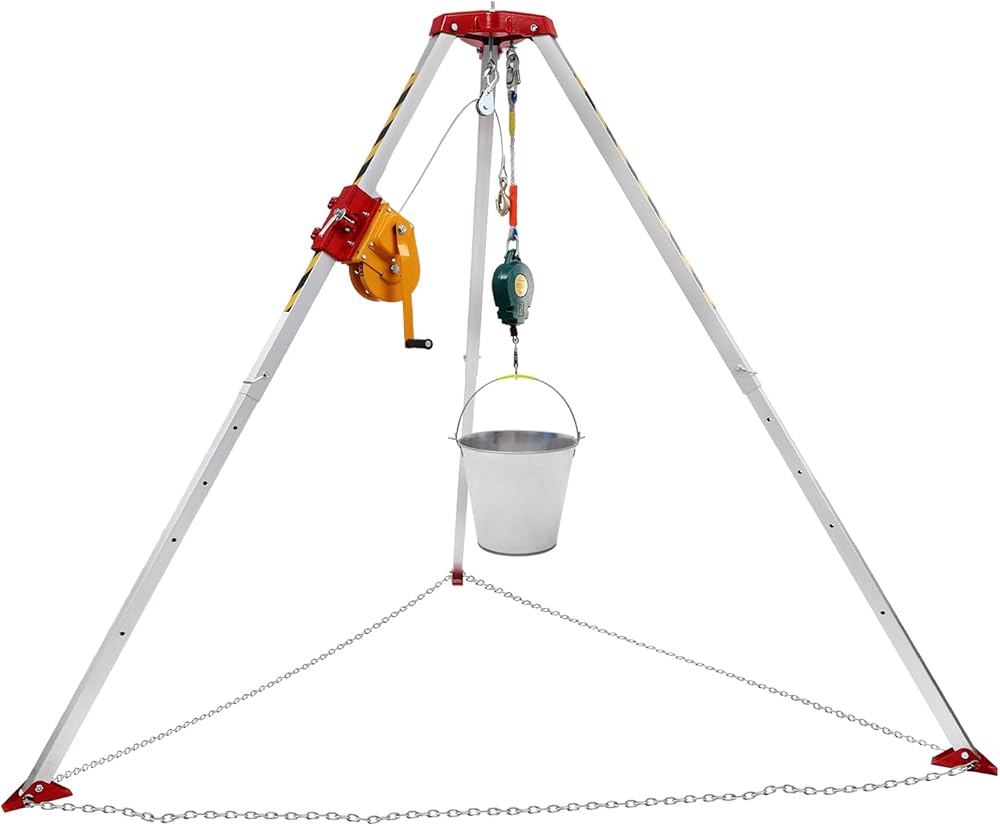

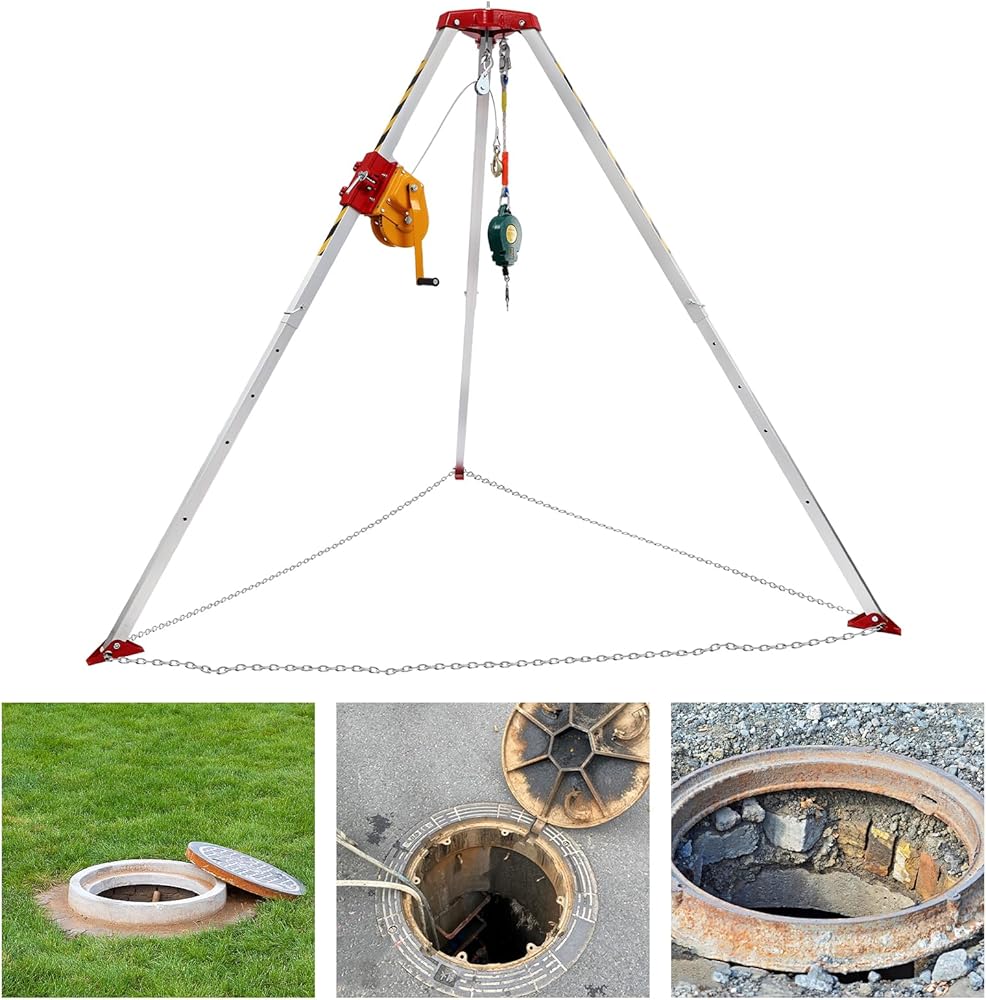

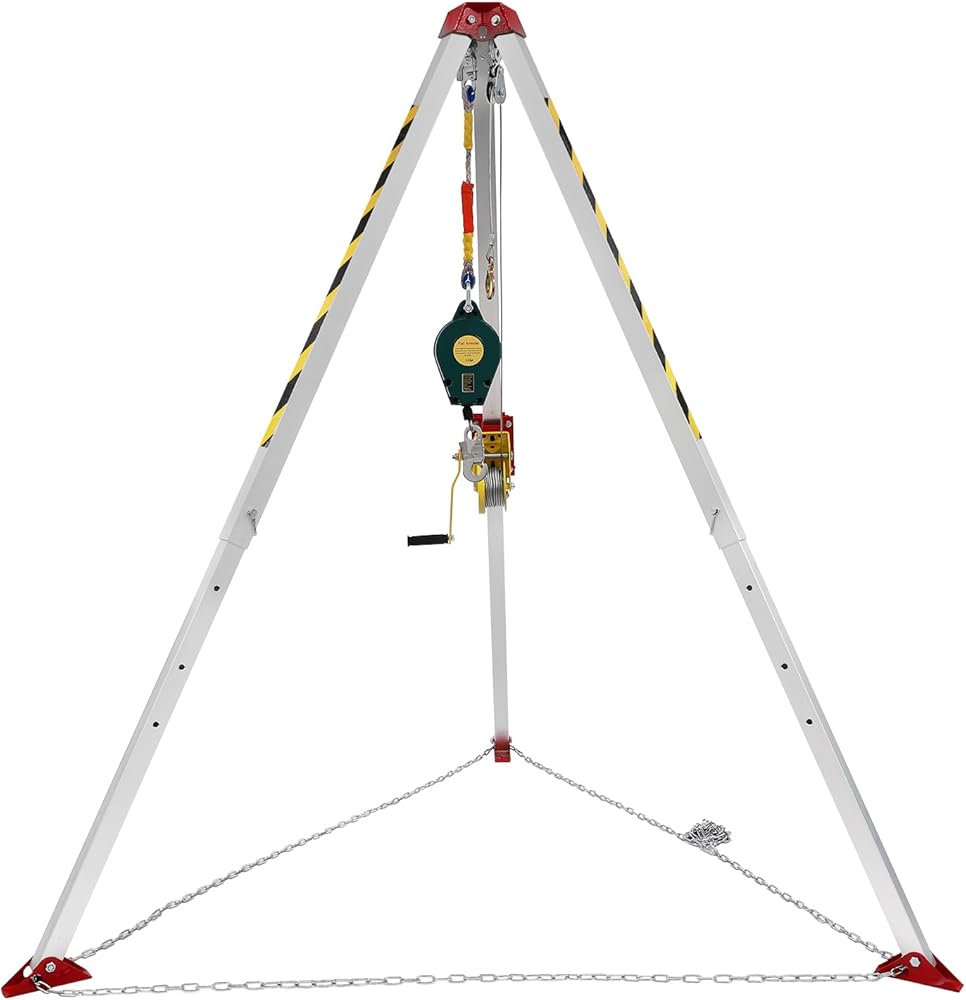

The rescue tripod consists of a sturdy triangular bracket and, winch, fall arrester, and ring chains, which can provide stable support and lifting capacity. It is usually used in a variety of rescue scenarios, such as construction, road accidents, etc., to help lift and stabilize heavy objects or injured people.
Details

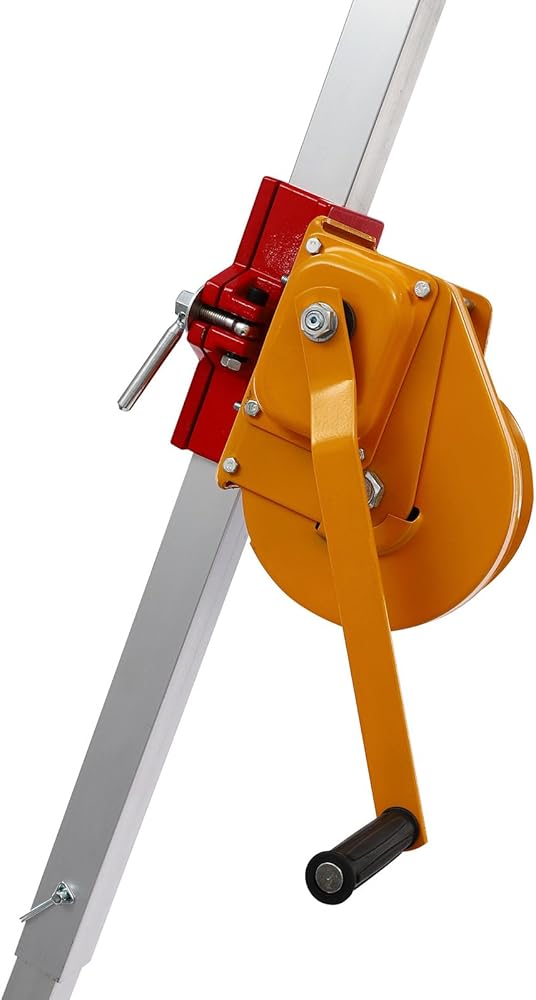

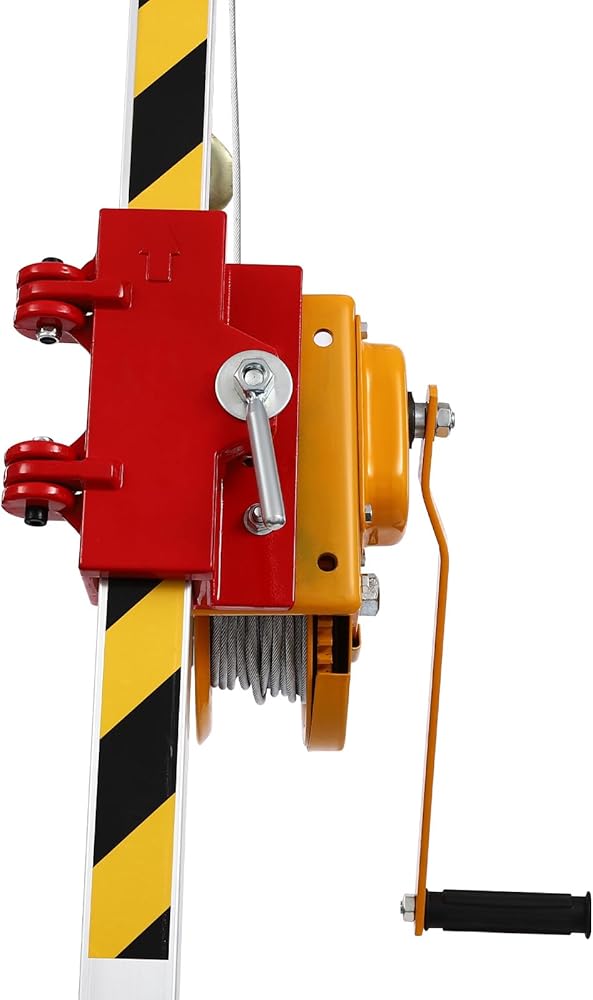

Winch Mount: It can be used to fix the winch, strong and durable.
Long Steel Wire: The 65.62ft wire is strong and durable while having a long lifting stroke, which can lift most people or items of varying heights.
Specifications
Style: Modern
Color: Silver, Red, Yellow
Material: Aluminium Alloy, Steel Wire
Process: Spray Molding, Oxidation
Assembly Required: Yes
Operate Mode: Manual
Mounting Type: Floor Standing
Blocking Force: 22KN
Gear Ratio: 5:1
Handle Force: 0.2KN
Manual Handle Force: ≤500N
Safety Coefficient: >10

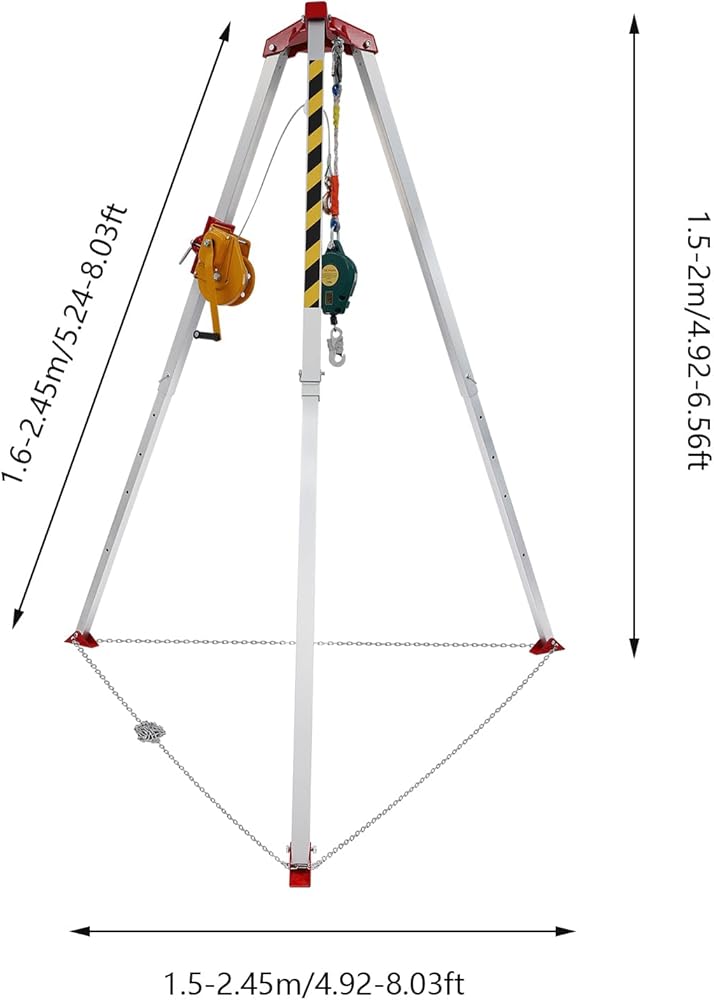

Working Height: 1.6-2.45m(5.25-8.04ft)
Tripod Load: 300kg(661.39lb)(The Tripod Working Height is Set to the Middle Position)
Winch Working Load: 816.5kg(1800lb)
Steel Wire Rope Length: 20m(65.62ft)
Package Size: 160x46x27cm(62.99x18.11x10.63in)
Gross Weight: 33.9kg(74.74lb)
Net Weight: 32kg(70.55lb)

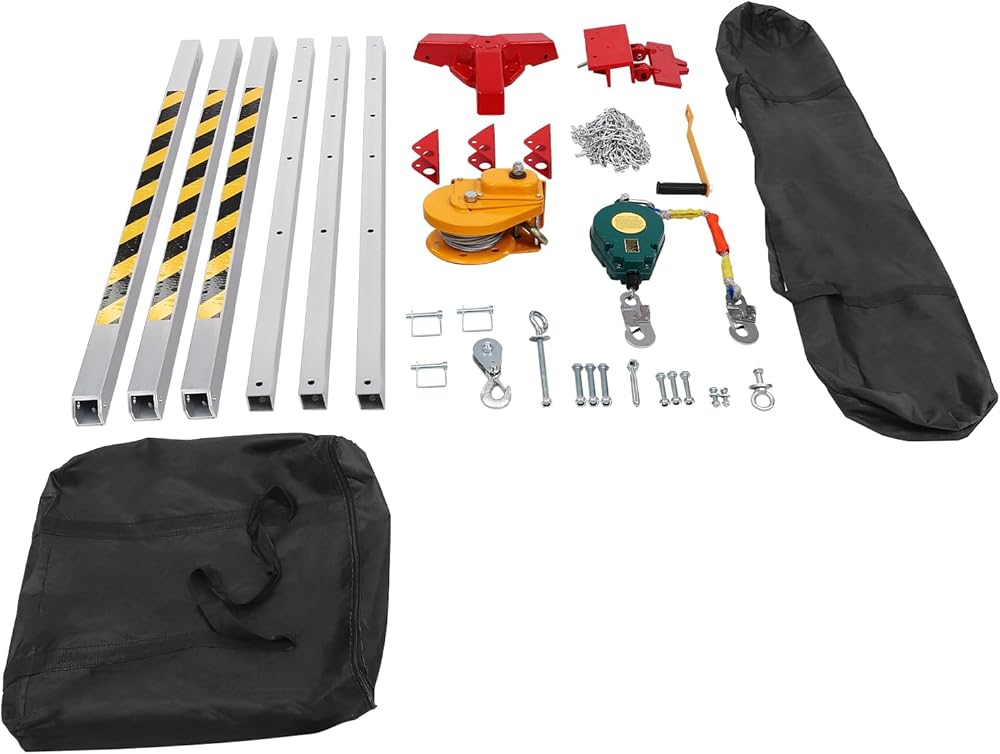

Package Includes
1x Confined Space Tripod Kit

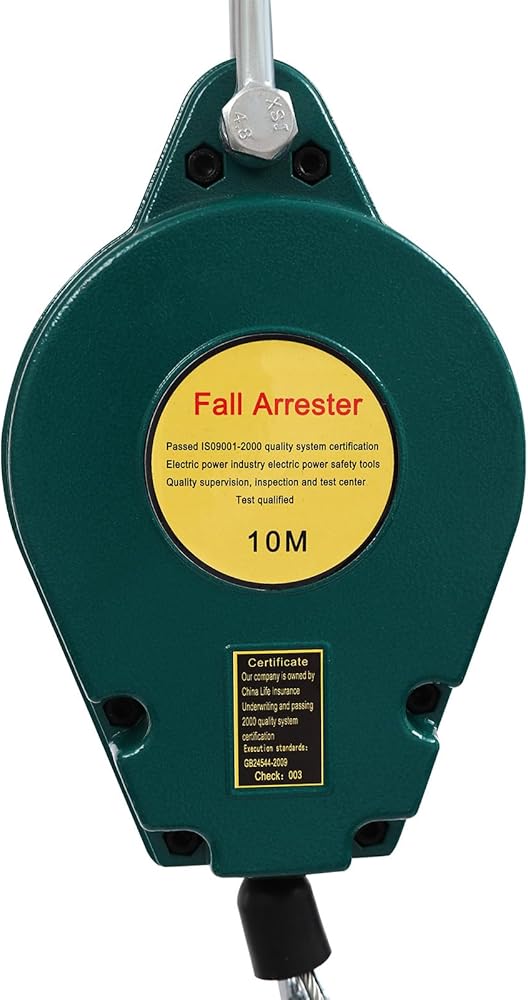

1x Fall Arrester
2x Storage Bags
All Accessories for Installation
Note
1.Please check the size carefully before ordering.
2.To enhance the safety of trapped persons, please use it with a seat belt and a helmet (both not included).
3.Before each use, please check that the steel wire is properly wound around the winch.
4.Regularly check whether the connecting joints of the steel wire are strong enough.
The steel wire on the winch needs to be left for three to four turns to ensure that the steel wire does not slip.
