Pneumatic Motors
Specification:
Model: RC-280SA-20120

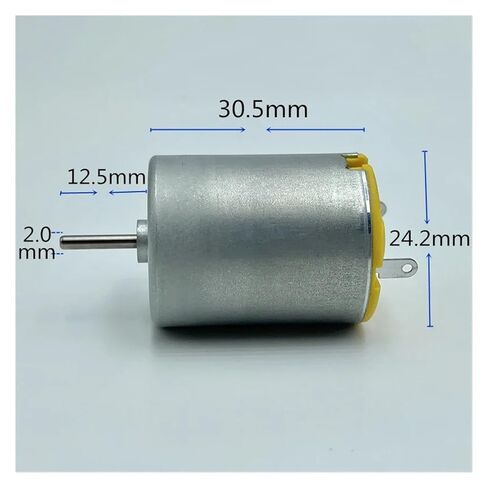

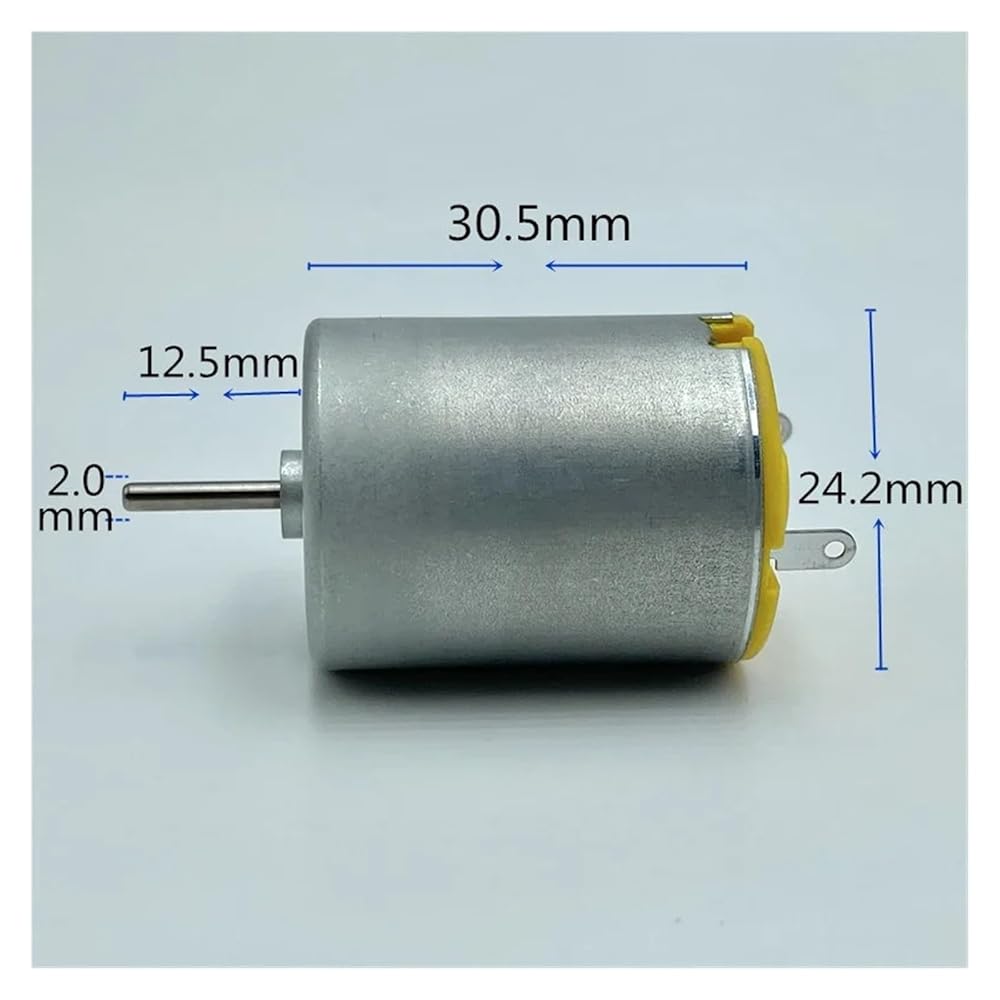

Motor size: 24.2mm*30.5mm
Output shaft diameter: 2.0mm
Output shaft length: 12.5mm(include step height)
Weight: 43g
Voltage range: DC 3.0V-12.0V
Test data:
Voltage:3.0V No-load speed:3800RPM Current:90mA
Voltage:4.5V No-load speed:5800RPM Current:99mA
Voltage:6.0V No-load speed:7800RPM Current:105mA
Voltage:9.6V No-load speed:12500RPM Current:138mA
Voltage:12V No-load speed:15600RPM Current:170mA
Package List:
Motor x 1pcs
Color : Silver
Usage : Home Appliance
Model Number : RP-280CN-20120
Construction : Permanent Magnet
Type : Micro Motor
Protect Feature : Explosion-proof
Commutation : Brush
Efficiency : IE 1
Model number : RC-280-20120
Motor diameter : 24.2mm
Motor height : 30.5mm
Output shaft diameter : 2mm
Rated voltage : DC 12V
Speed : 15600RPM
Weight : 43g
Condition : New
Type : Carbon Brush Motor
