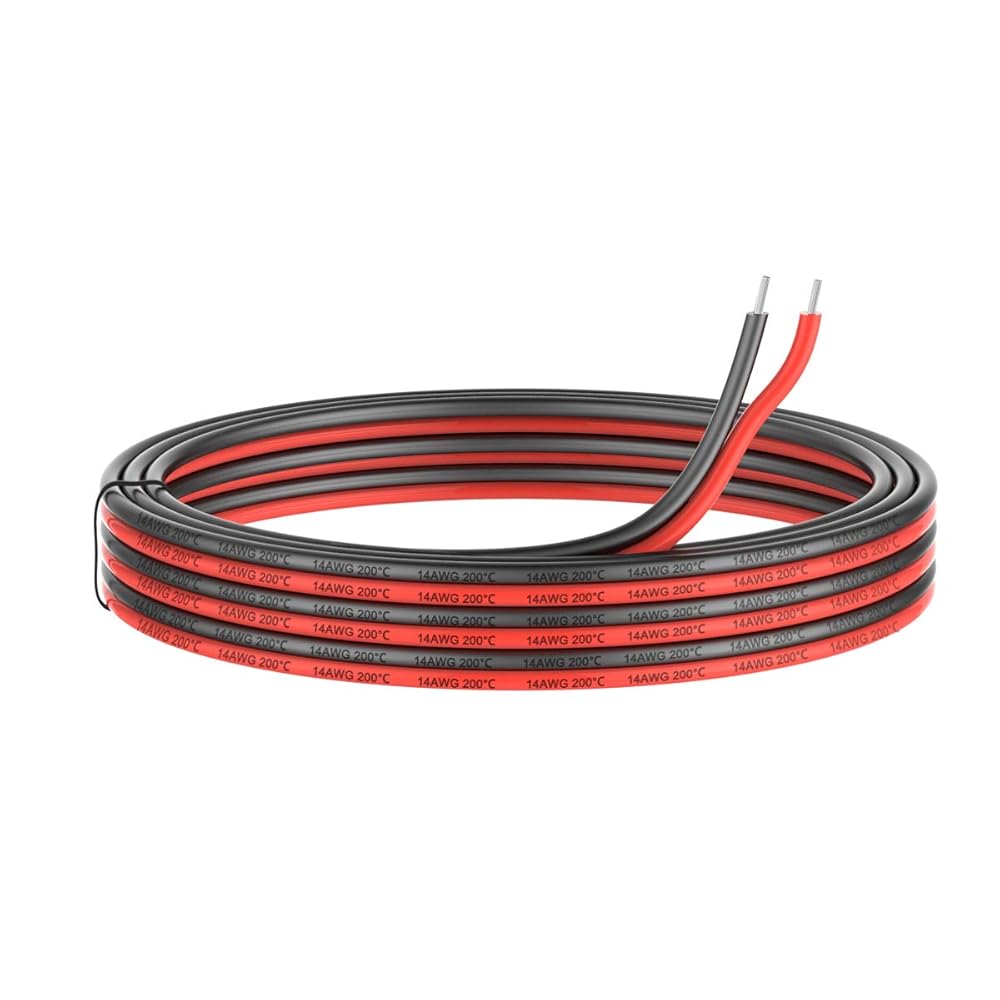

سلك كهربائي من السيليكون 20awg 2 سلك أساسي 20 قدم [أسود 10 قدم أحمر 10 قدم] 20 مقياس ناعم ومرن يربط خيوط خالية من الأكسجين سلك نحاسي معلب in Kuwait

10FT 14AWG

KWD 2.500
مقاس10 قدم
أسلوب14AWG
– 1 +

مميزات خاصة

  • 2 Colors:Black,Red; Wire Length :10Ft / 3.1 Meters each color;Material : Silicone rubber+High-purity oxygen-free Tinned Copper wire; High Quality Ultra Flexible Soft Silicone Rubber Copper Wire!Super Low Impedance,Highly Efficient!
  • They are constructed with premium silicone rubber insulation.High temperature resistance 200 degree C,Low temperature resistance,in extreme cold -60 degree C.Rated Voltage: 600 volts(can for 0 to 600 Volts); Bear Current:max 5.0A;
  • 0.5mm² 20 Gauge silicone wire - super flexible 100 strands of 0.08 mm Tinned copper wire - Highly efficient - Super low impedance for a highly efficient connection, the copper strands are tinned,protecting them from corrosion and making it easier to solder
  • Conductor: High purity Stranded oxygen-free copper with tin-plated, specification features high conductivity, low resistance and soft, can be bent arbitrarily, easy to welding, stripping, crimping terminals,connect,cut.
  • Widely used for Car,batteries,lamps,household appliances,electric heating appliances,model planes,model cars,model ships,meters,instruments,motor lead wire,digital fields,led strip and Led lights.

وصف

2 Colors:Black,Red
Wire Length :10Ft/3.1Meters each color
Nominal Voltage: 600V
Testing Voltage:2000V
Temperature Range:-60 ℃ to 200 ℃
Conductor: Tinned Copper
OD Tolerance: ±0.1mm
Insulator: Silicone

Conductor：
(1) Gauge:20AWG(0.5mm²)
(2) Copper Number/Wire Diameter:100/0.08mm
(3) Diameter: ∮0.92mm

Insulator:
(1) Jacket Thick:0.55mm
(2) Over Diameter:1.8mm

Bear Current:5.0A
