1. Current Transmitter: The current transducer can perform real time isolation measurement of AC current in the power grid or circuit, and convert it into a 4-20mA DC output signal.
2. Premium Measurement: Can be connected with various AD to form various digital centralized collection systems, or output to PLC to form automatic control systems, or be connected with analog and digital indicating instruments to display the measured values.
3. Stable in Operation: Strong overload capacity, Precision Machined, high isolation, high safety, low power consumption, strong anti interference ability, and is easy to install and use.
4. Wide in Application: Widely used in substation, frequency conversion speed regulation device, inverter device, electrolytic plating, electricity, street lamp monitoring, coal mine and other automation industries that need current monitoring.
5. Reliable in Working: With Precision Machined, Durability-Optimized, long service life, more accurate and timely monitoring and control of any point.

Specification:

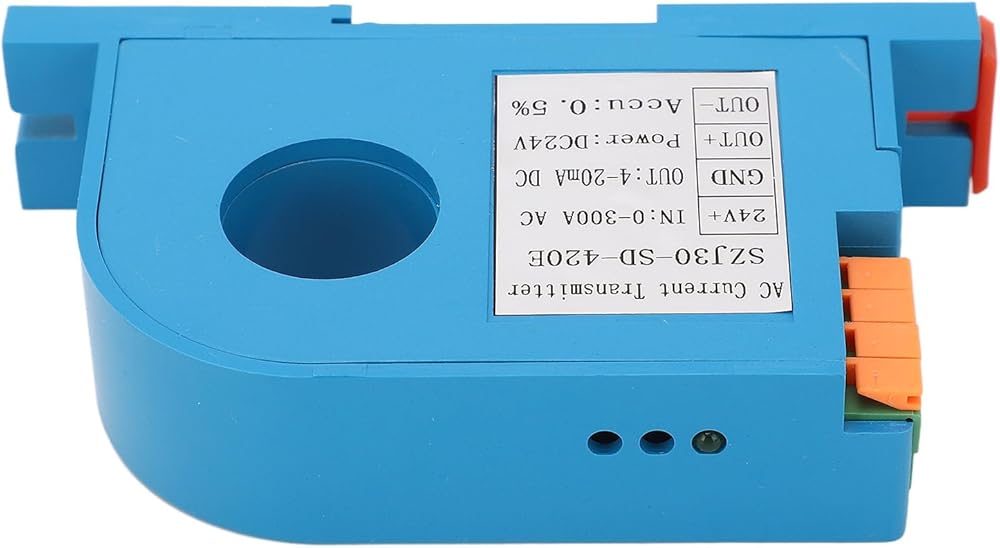

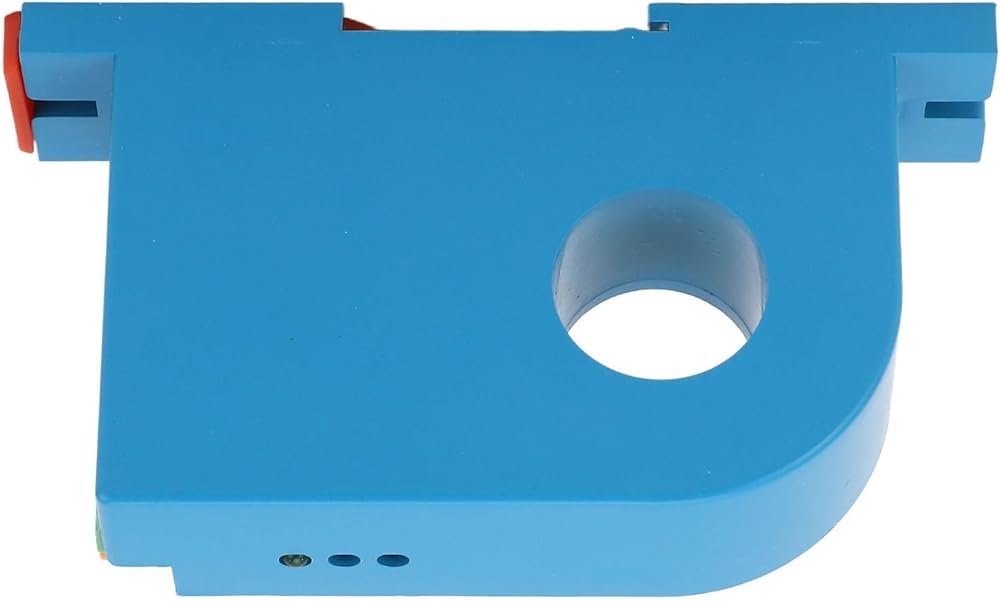

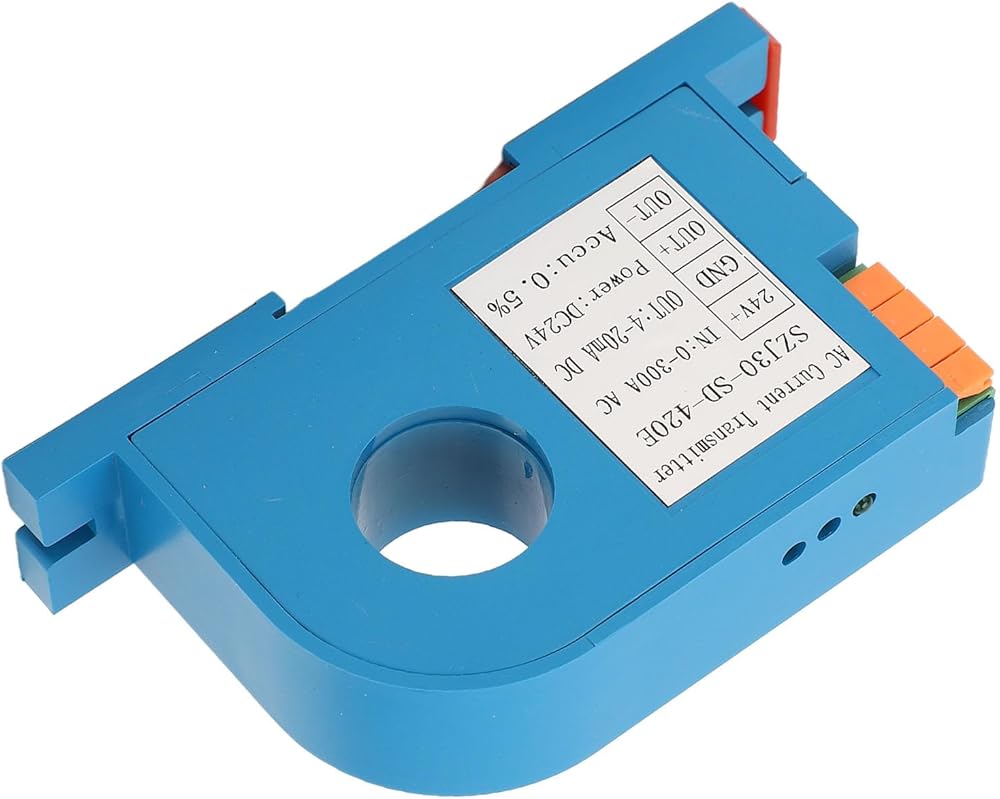

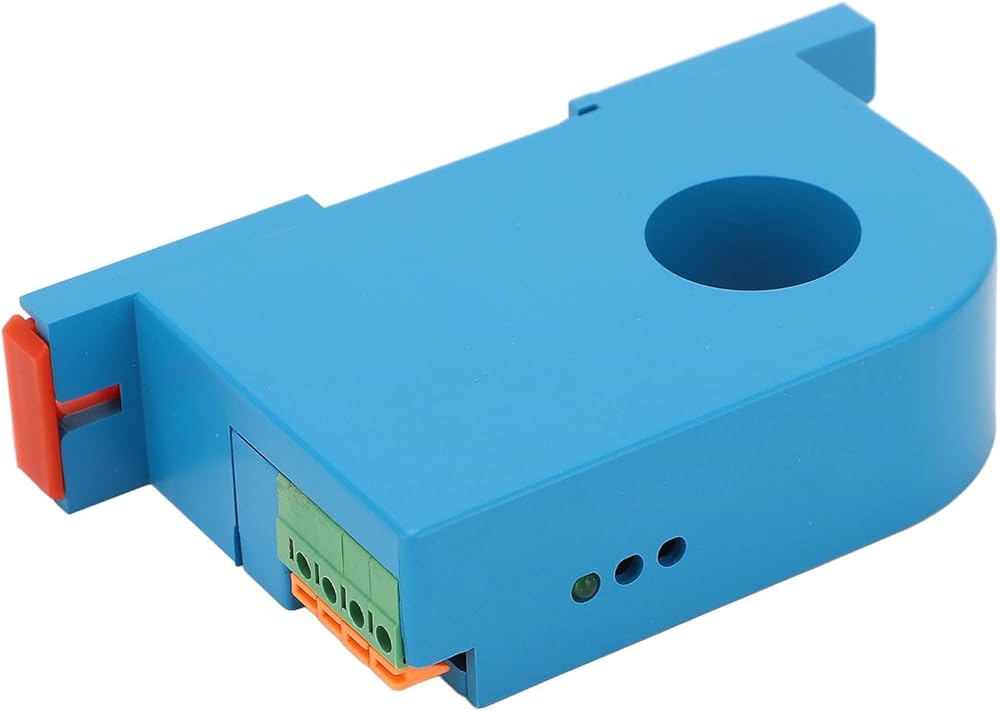

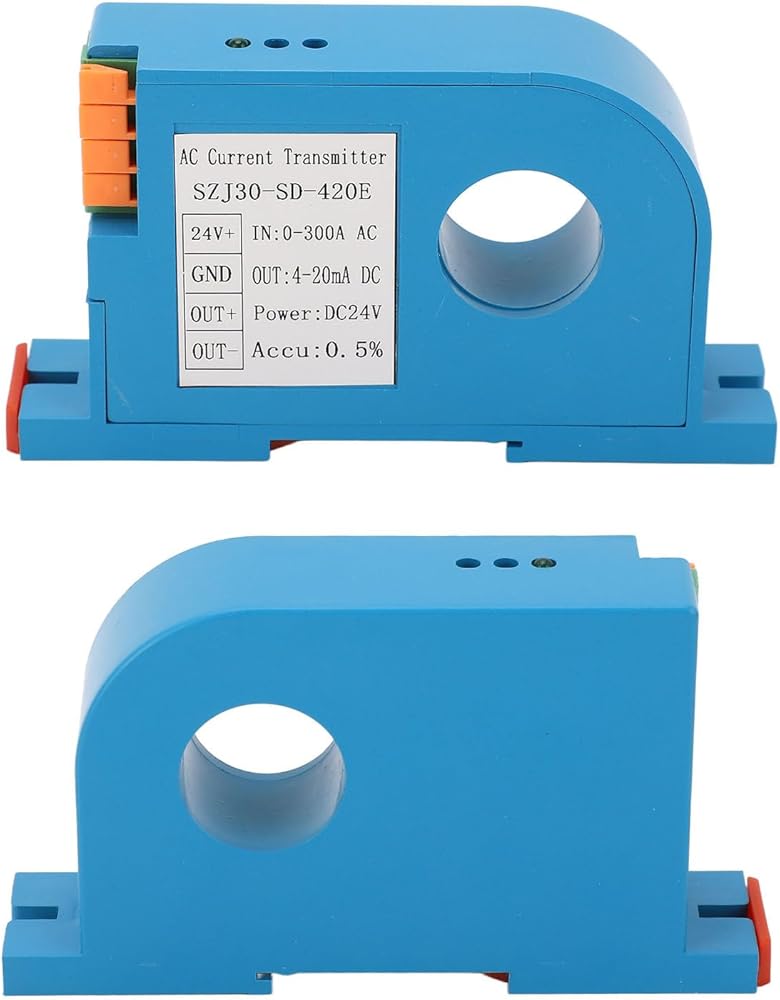

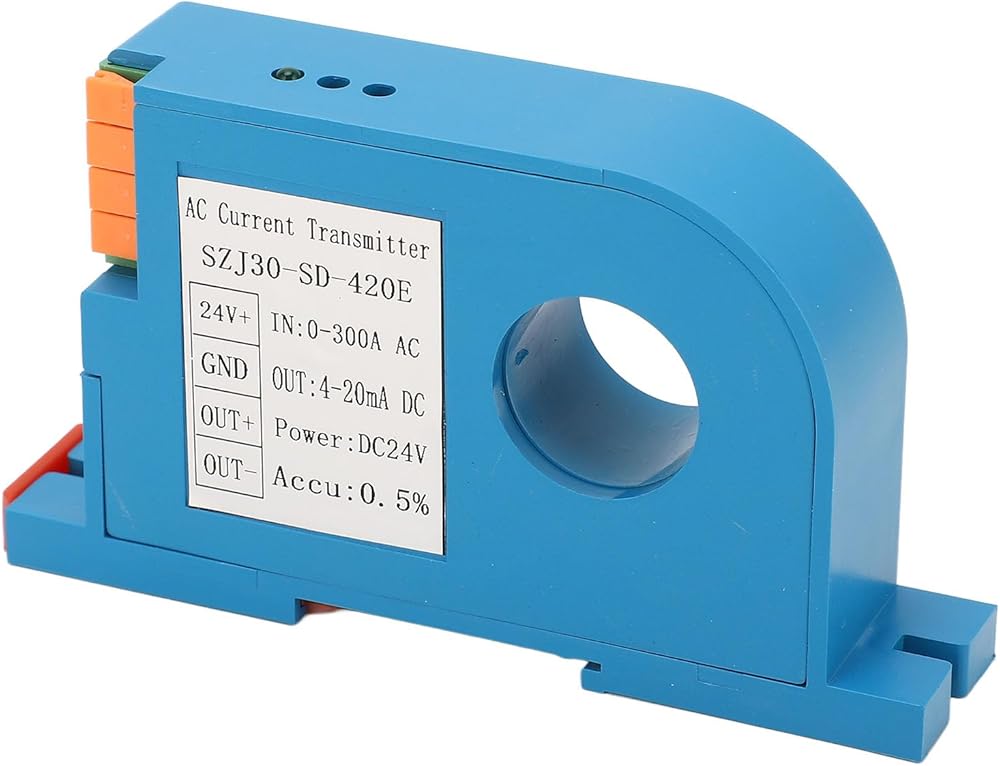

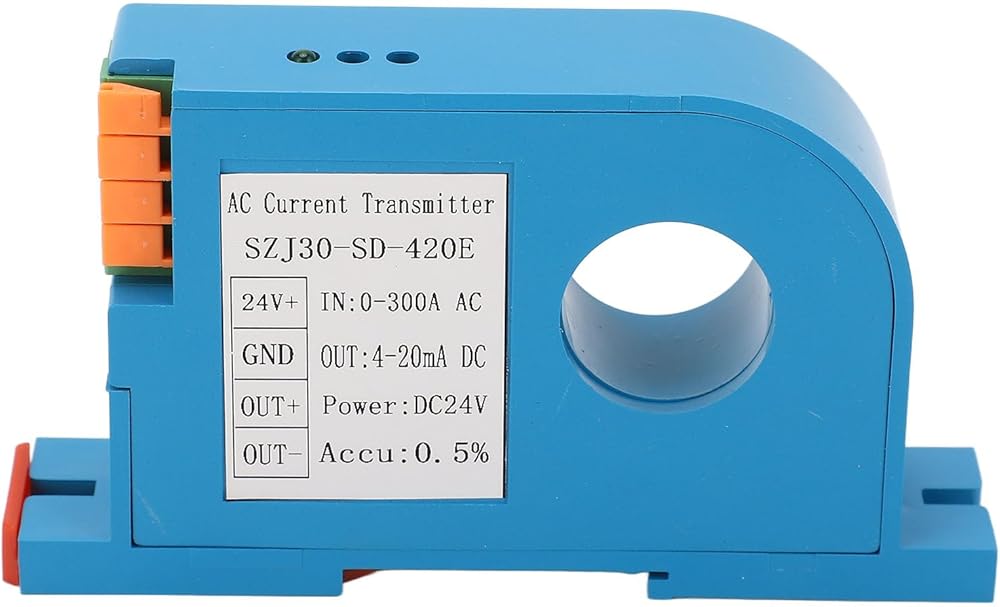

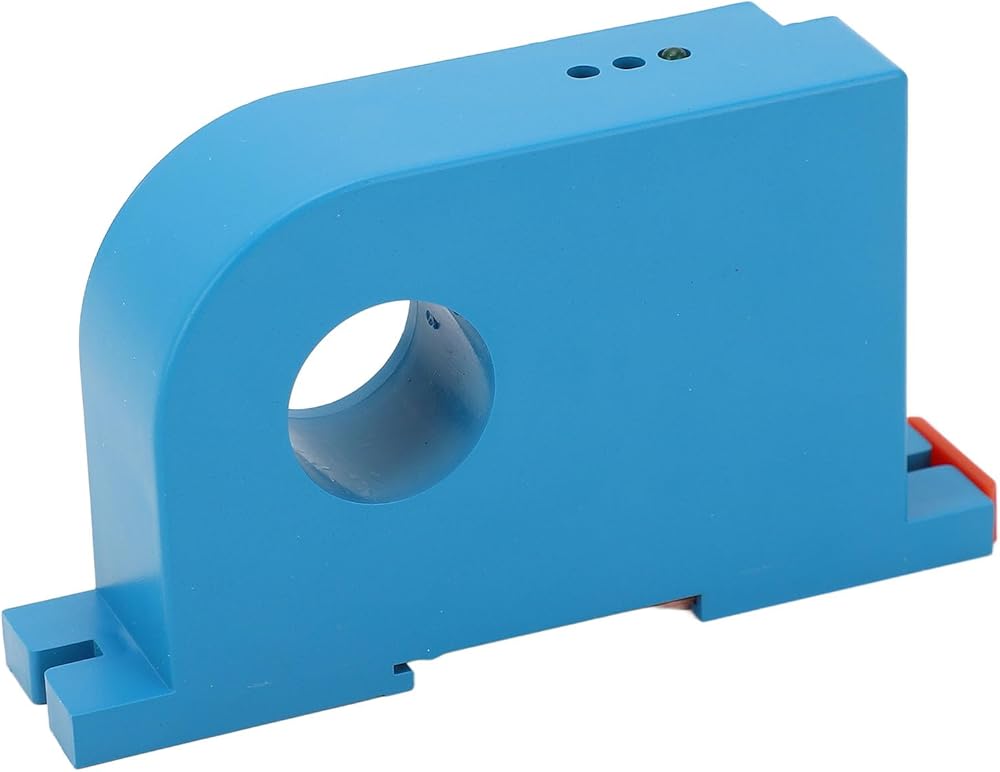

Item Type: AC Current Transmitter
Model: SZJ30-SD-420E
Material: PC
Input Range: 0-300A
Output: 4-20mA DC
Power Supply: DC 24V
Output Load Resistance: RL Features: Input, output, and power supply are isolated at three ends, without mutual interference.
Accuracy: 0.5%
Corresponding Time: Isolation and Withstand Voltage: 3KV/50HZ, 1min.
Frequency Range: 20-60Hz
Load Capacity: Voltage output 6V, current output 5MA.
Working Temperature: -20~80℃.
Temperature Drift: 0.02% FS/C, under -20~55℃.
Insulation Strength: 2000V AC 1MIN, among input, output, and power supply.
Insulation Resistance: > 100M Ω

How to Use:
Installed on corresponding equipment.

Package List:
1 xAC Current Transmitter
