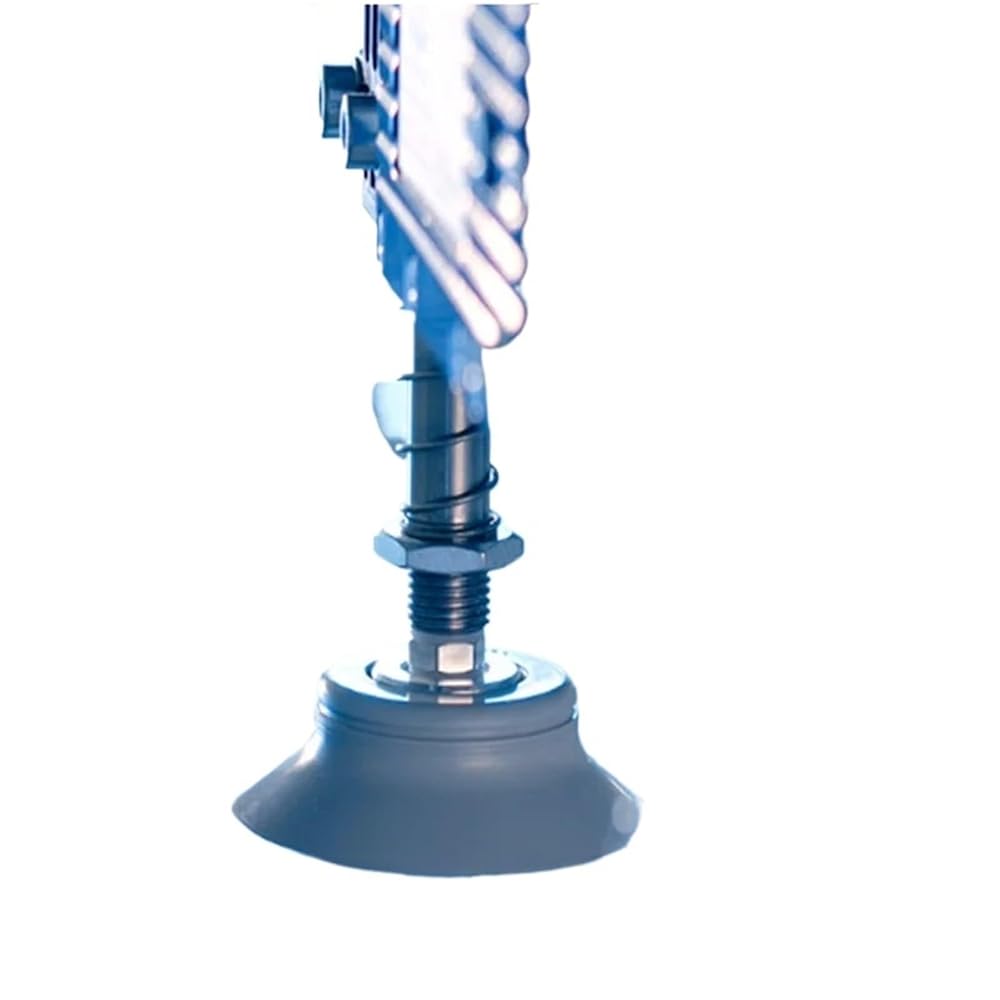

Vacuum Pads
Suction Plates SPU
Suction area (Ø) from 100 mm to 400 mm
Applications
Round suction cup for handling of smooth, flat workpieces
Series SPU B with thicker sealing lip: handling of workpieces with a slightly rough surface, such as wood or scaly metal sheets
Series SPU AE with integrated peeling insert: handling of thin metal sheets (approx. 1.0 - 2.5 mm); overcomes the self-adhesion between the sheets
Series SPU TV with touch valve: deactivation of unused suction cups to prevent the entry of unwanted air
Design
Suction cup SPU consisting of sealing ring (3) and aluminum support plate (1)
Sealing ring clipped securely onto support plate with positive locking
Internal sealing edge (4) for better sealing on slightly rough surfaces
Side vacuum connector (2) normally sealed with a (glued into position for extra safety)
Series SPU TV: touch valve already installed
Series SPU AE: peeling insert on the bottom side already installed
Our Highlights... /Your Benefits...
Supports on the bottom
No permanent deformation of thin-walled workpieces
Low internal volume
Very short cycle times
Wide range of diameters
Wide range of versions for many different workpieces
Optimum shape
High suction force in spite of small dimensions
Designation Code Suction Plates SPUSuction plate SPU (sealing ring + support plate) is delivered assembled.
The assembly consists of:
Sealing ring of type DR-SPU elastomer part, available in various diameters
Aluminum support plate, available with various threads
Optional product addition: touch valve, steep sealing lip, peeling insert
Available spare parts: sealing ring DR-SPU, touch valve TV
Suction Plates SPU
Design Data Suction Plates SPU
==========
Type : Actuator
