مميزات خاصة

[High Speed Fusion Splicing] The optical fiber fusion splicer features powerful high speed motor, enabling a rapid splicing time of just 8 seconds and a heating time of 18 seconds, saving time.
[Advanced Alignment] Utilizes the latest cores alignment technology with auto focusing and six motors, ensuring more precise alignment and less fusion loss. Effectively measures connection loss, verifies continuity, and helps assess the transfer quality of fiber optic links.
[Versatile Fiber Compatibility] The fiber fusion splicing machine includes a three in one fiber holder that supports SM, MM, DS, NZDS, and custom fibers, with low splice loss of 0.02dB for SMF, 0.01dB for MMF, 0.04dB for and NZDS.

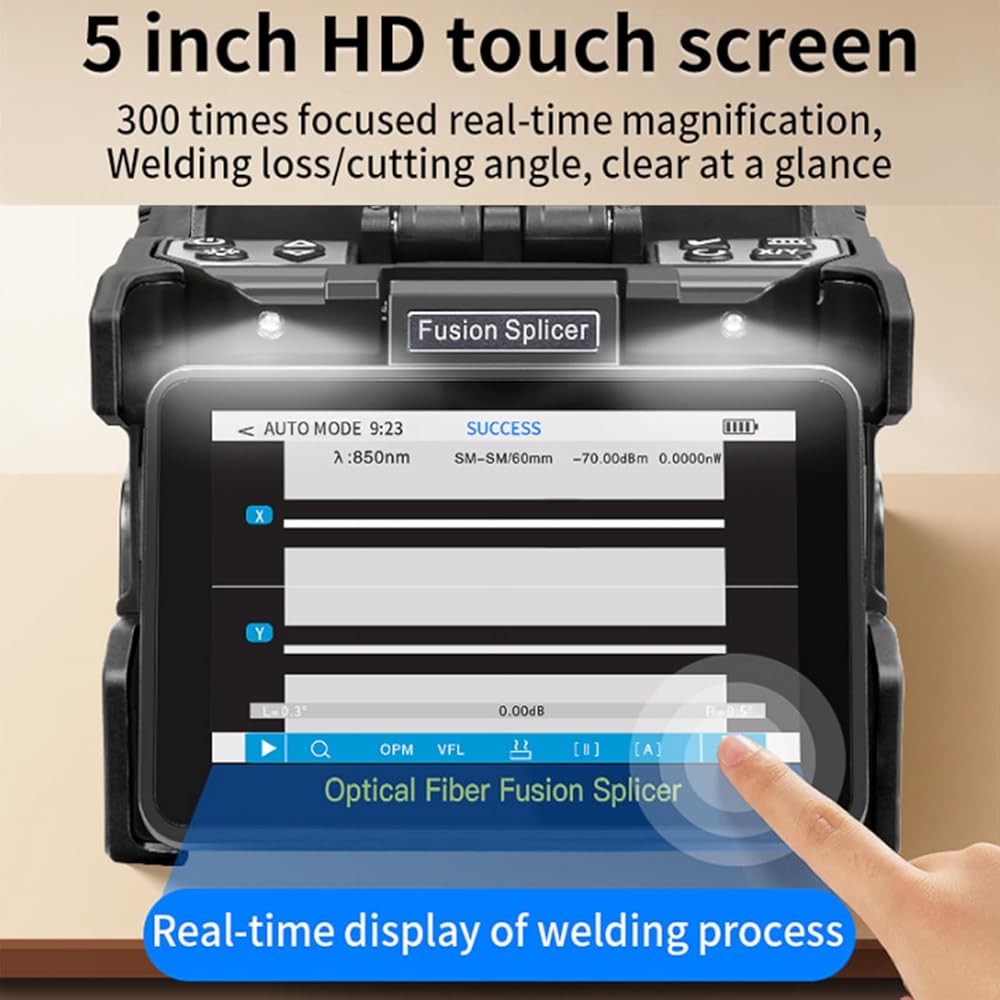

[Clear Touch Screen Display] The fusion splicer features a 5 inch HD capacitive touchscreen displaying 800x480 resolution, allows for up to 300X magnification when X or Y axes displayed separately.

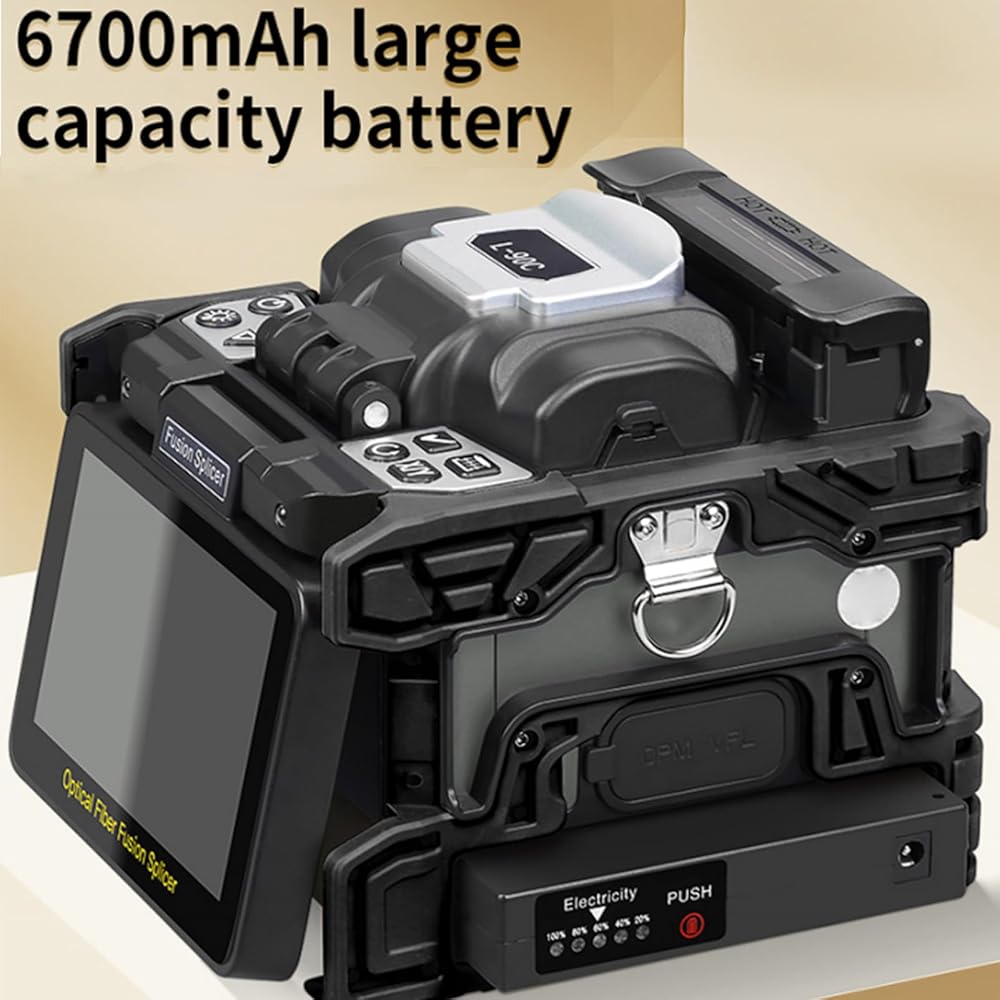

[Long Battery Life] The fiber fusion splicer is powered by 6700mAh high capacity lithium cell, supports 3.5 hours charging time, and continuous fusion and heating for about 200 times.

وصف

Specification:

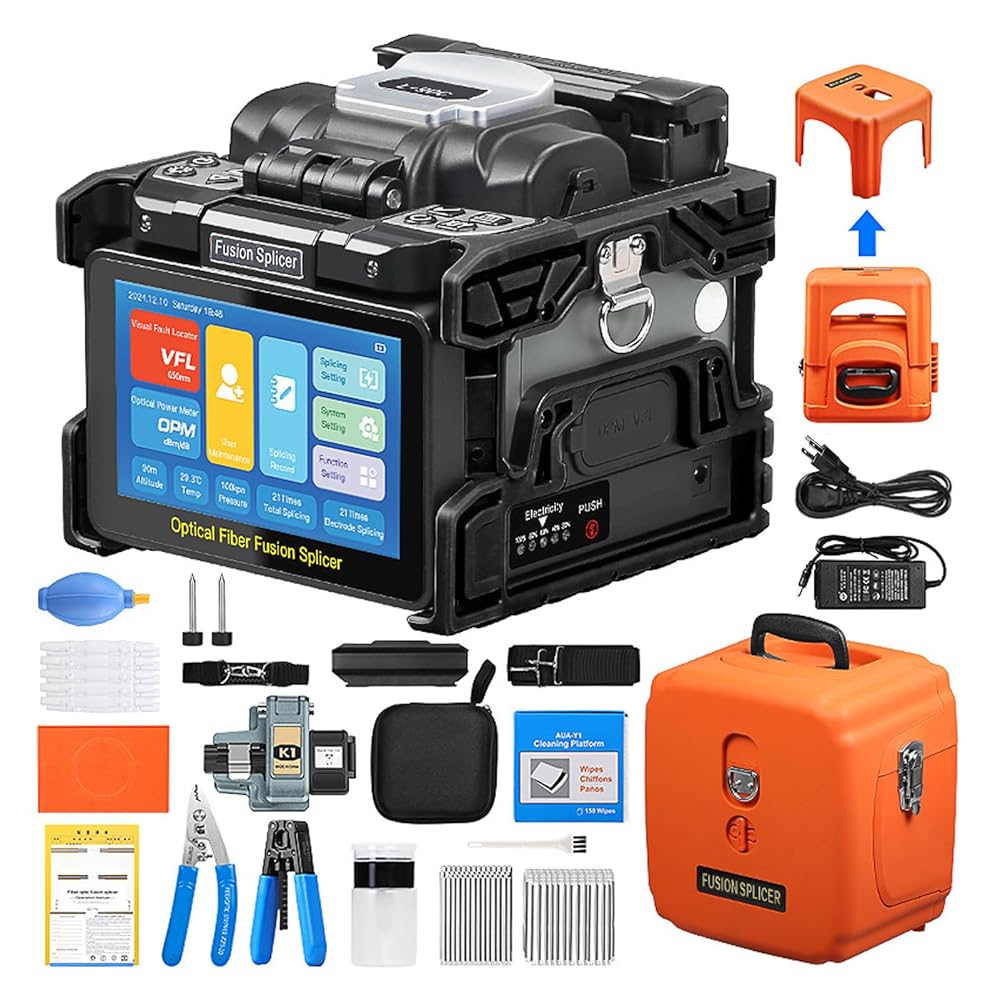

Item Type: Optical Fiber Fusion Splicer
Material: Aluminum alloy, tungsten steel, ABS, silicone

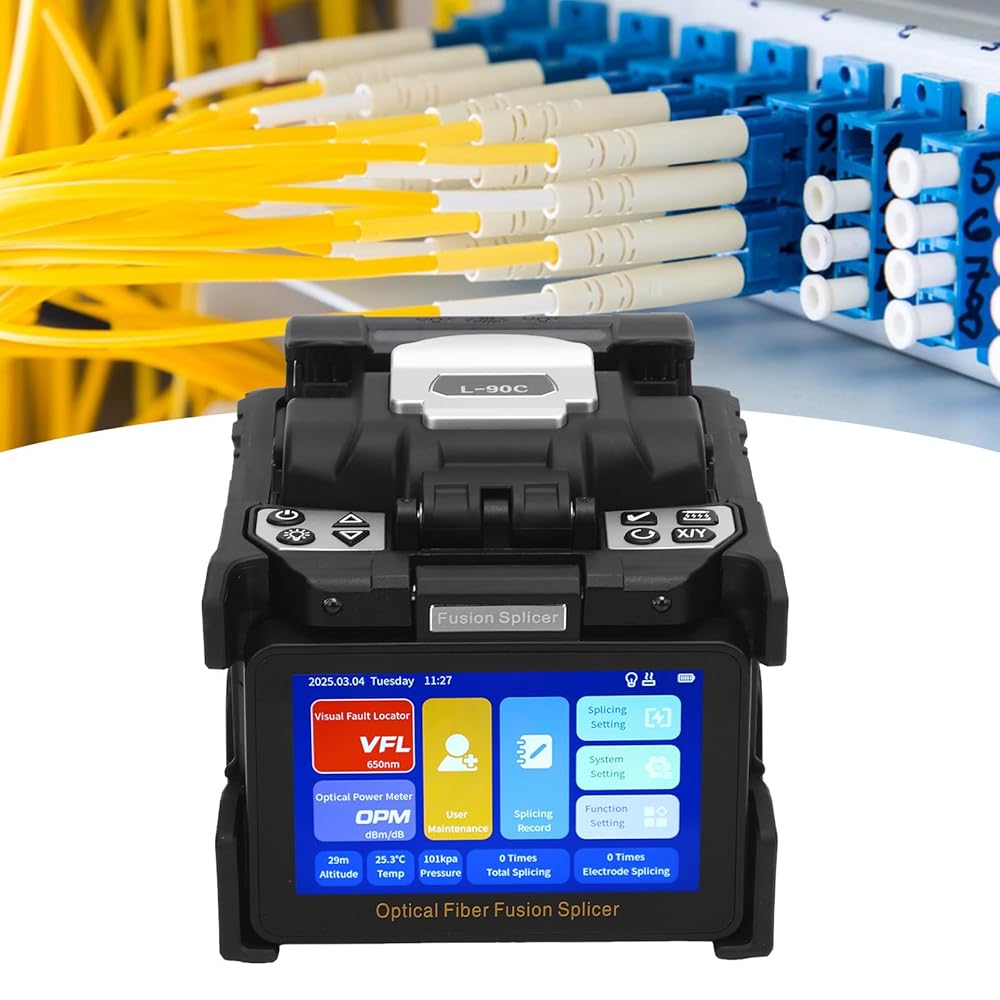

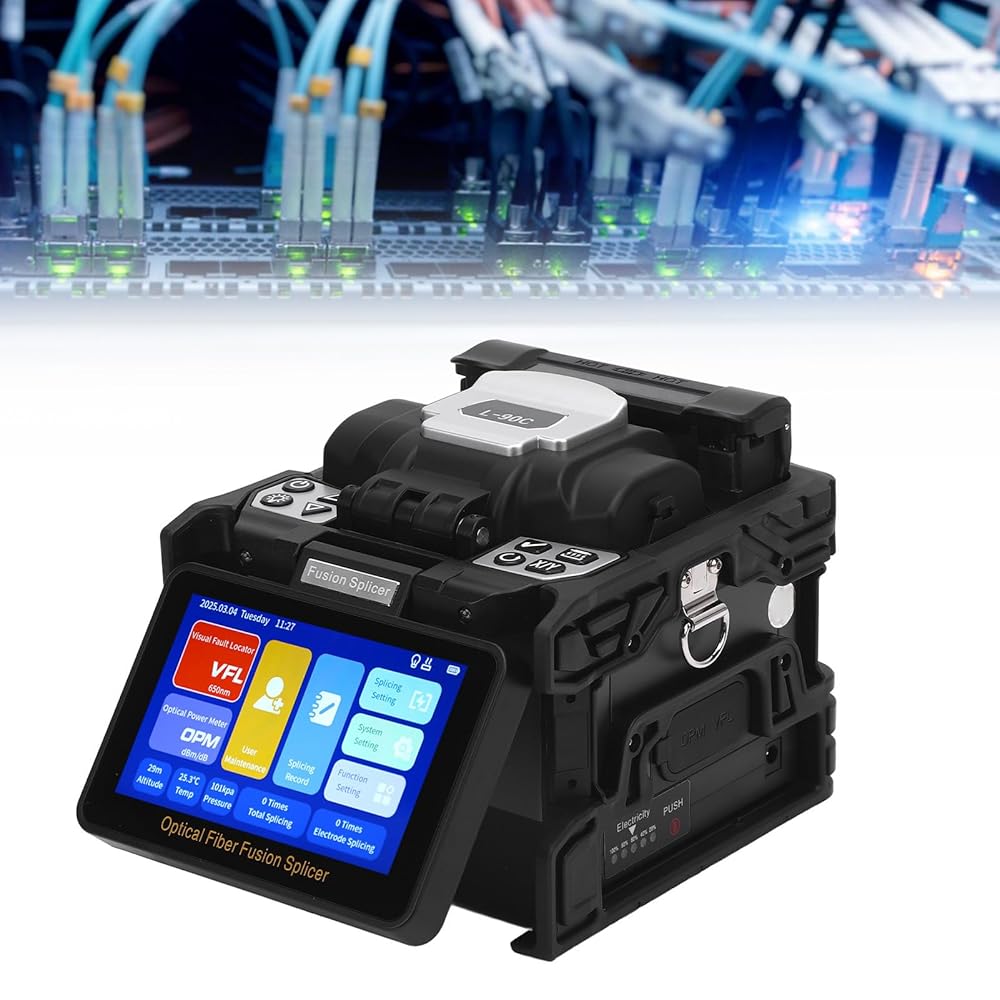

L-90C Fiber Fusion Splicer:
Applicable Fiber: SM (G.652 and G.657), MM (G.651), DS (G.653), NZDS (G.655) and custom types
Fiber Diameter: Cladding diameter 80-150μm, coating diameter 100-1000μm
Splicing Loss: 0.02dB (SMF), 0.01dB (MMF) 0.04dB (/NZDs) measured by ITU-I cutback method
Alignment Method: Cores, Cladding
Focusing Method: Six motor automatic focusing

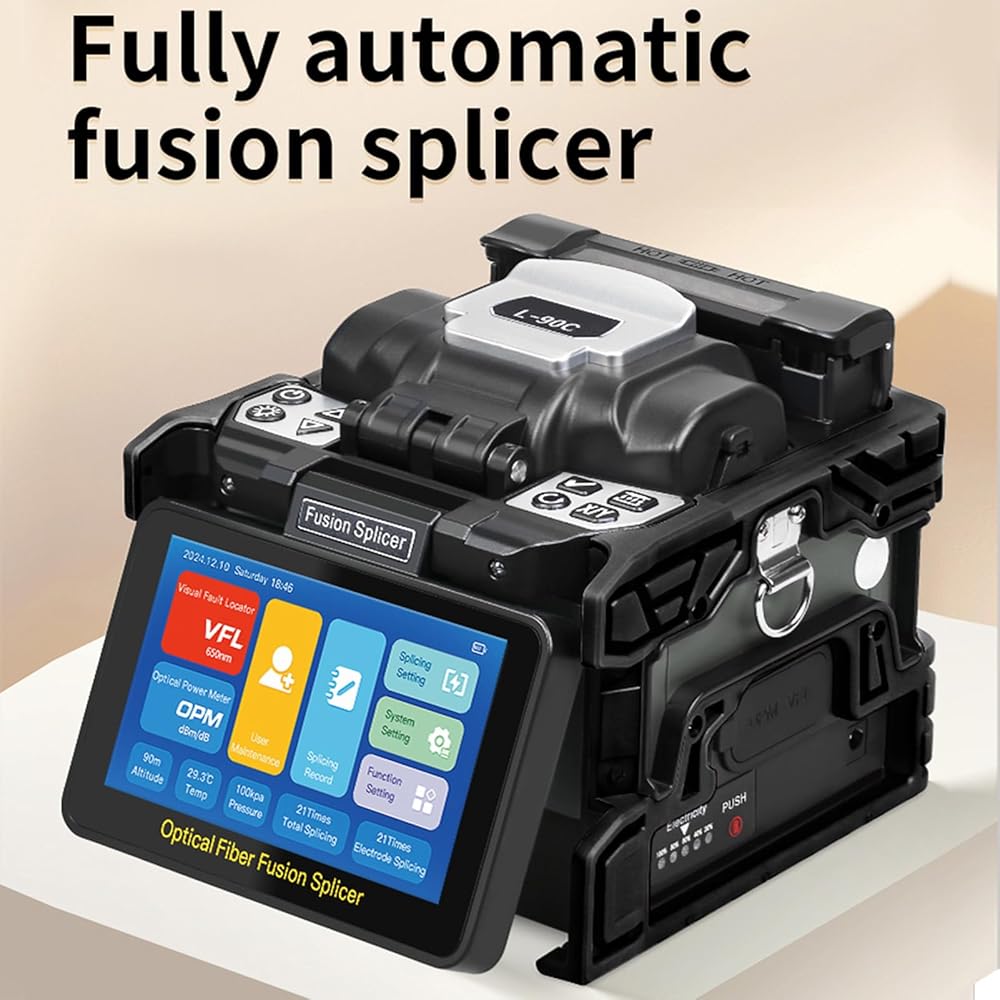

Splicing Mode: Full automatic, semi automatic, manual
Splicing Time: 8s (SMF typical value)
Tensile Test: 1.96N~2.1N

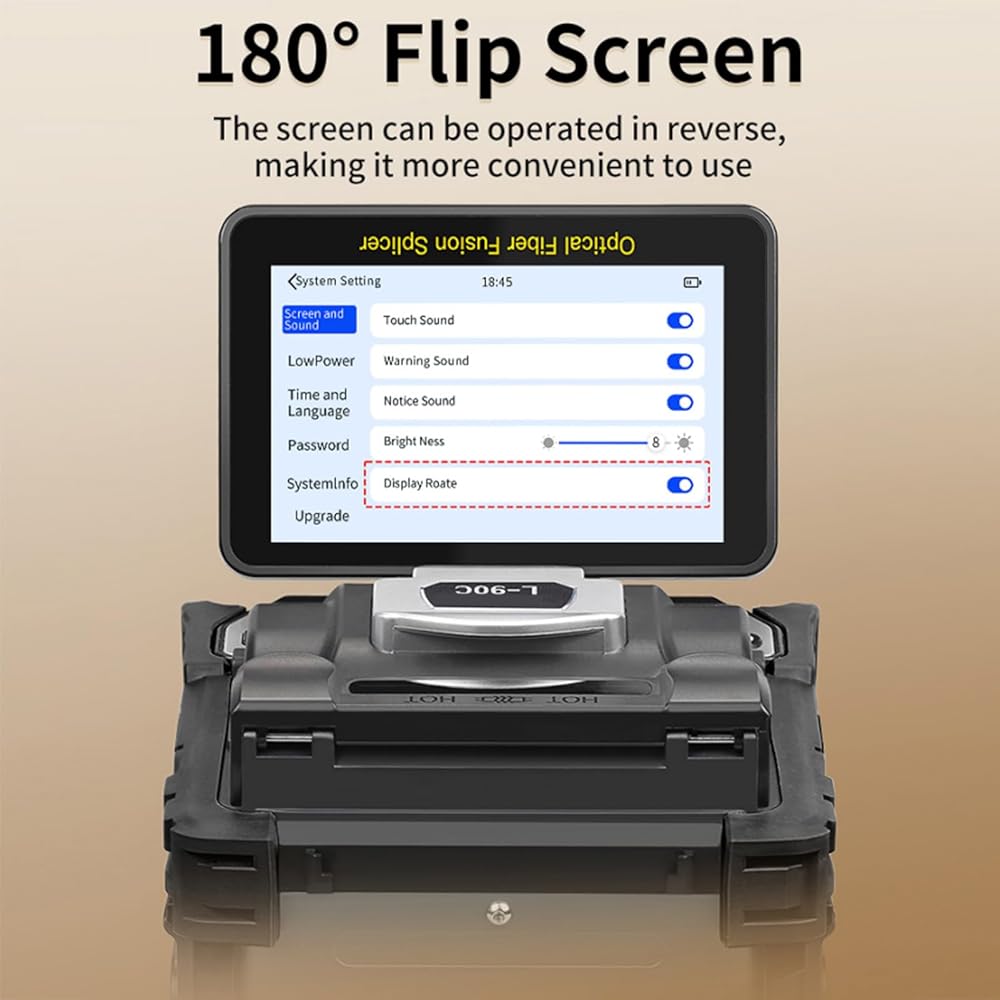

Image Display: 5 inch HD capacitive touch screen, keys and touch control, content can be flipped in both directions
Magnification: 300X (X/Y axes)
Splice Records: 1000 sets
Typical Heating Time: 18s
Heating Modes: Heating time and temperature adjustable, support auto or manual heating
Heat Shrink Tube: 20-60mm

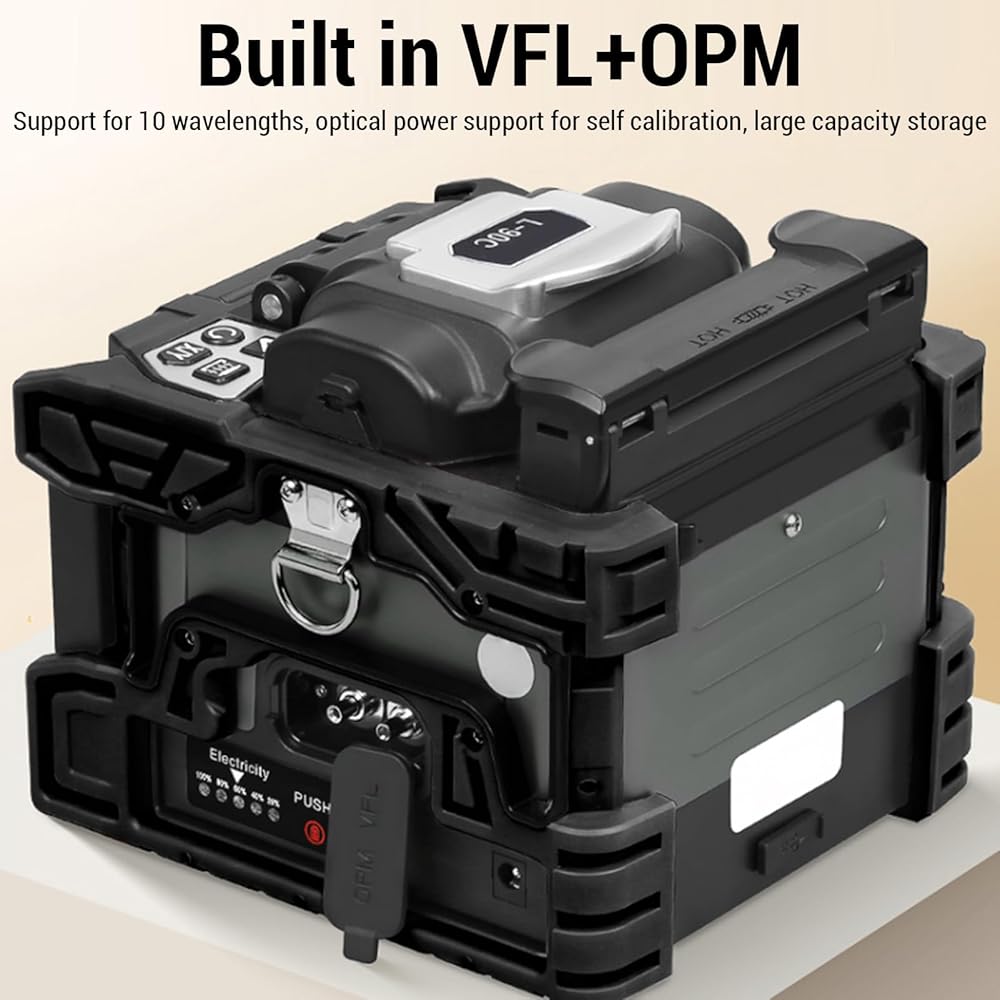

OPM: Range (dBm): -70~+10dBm, wavelength 850-1650mm (10 bands)
VFL: ≥15km
User Interface: GUI graphical user interface
System Upgrade: USB (data export, function upgrade, power output)
Electrode Life: About 3000 times
Lighting Method: LED
Battery Capacity: 6700mAh (typical working times of fusion and heating are 200 times)
Power Supply: 11.8V lithium cell x 1 (built in)
Charging Time: About 3.5 hours
Language Support: Chinese, English, French, Russian, Italian, Portuguese, Polish, Spanish, Thai, Arabic
Working Environment:
Temperature: -15 to +50℃
Humidity: ≤90%RH (non condensing)
Altitude: 0-5000m
Wind Speed: ≤15m/m
Storage Conditions:
Temperature: -40 to +50℃
Humidity: 0-95%

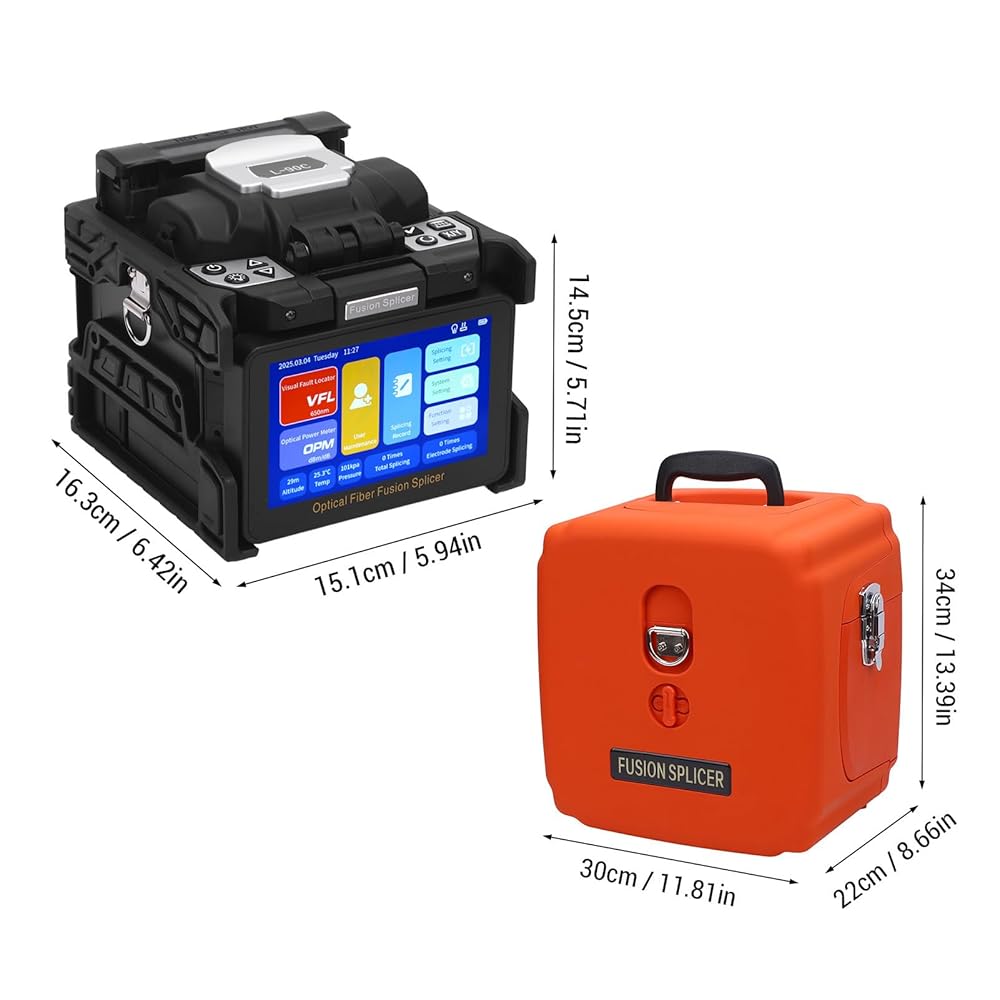

Splicer Size (LxWxH): Approx. 151x163x145mm / 5.94x6.42x5.71in
K1 Fiber Cleaver:
Cleaving Angle: ≤5°
Cleaving Length: 9-16mm (dia0.25), 10-16mm (dia0.25)
Fiber Diameter Types: 125μm
Suitable Fiber Types: 0.25 and 0.9mm
Blade Life: About
