جهاز قياس قياس التيار المستمر موديل GM1-ST

KWD 190

1 +

مميزات خاصة

  • Range/Resolution: 19,999.9 G/0.1 G; with polarity indicator
  • Accuracy: +/- 1% of reading (16° to 29°C); +/- 2% (-4° to 65°C)
  • Offset: Auto-Zero. Also fine offset (0.1 gauss resolution)
  • Probe (non-detachable): 1.5 (thick) x 4.3 x 24 mm
  • Meter Size: 5.2 x 3.6 x 1.6 inches; 132 x 91 x 41 mm; Weight: 8 oz

وصف

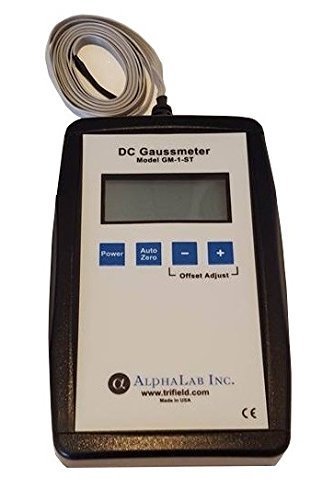

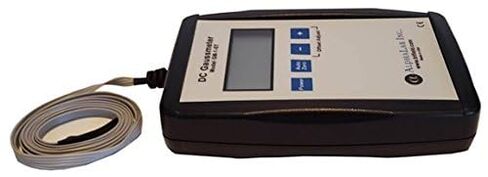

Product Description: This small and powerful Gaussmeter measures the strength and polarity of magnetic fields up to 19,999.9 gauss! The sensor can easily fit in a .060 inch (1.5 mm) gap and is at the end of a 100 cm flexible cable. The sensor end can be bent if required to accommodate different situations. Place the sensor on a magnet face to measure the field. With a resolution of 0.1 gauss, it can measure any tiny variation from magnet to magnet or it can detect if a given magnet has lost even a little strength. Bend the sensor in to a “L” to measure inside a DC solenoid tube. The 5 ½ digit display requires neither auto nor manual range change, making it easier to use than older style 3 ½ or 4 ½ digit meters. Immediately starting reading fields (updates 4 times per second) as soon as you turn on your meter! No extra set up is required. Features High dynamic range 5 ½ digit display reads even the strongest magnets with .1 gauss resolution, including polarity. Turns on instantly, updates four times a second, no setup or initial calibration required. Auto-Zero (subtracts the present field from subsequent readings); also a fine offset control. Offset range is the full +/- 19,999.99 gauss. 1% accuracy at room temperature, including probe. Probe and battery included. CE Compliant. Applications Measures permanent magnets. (Maximum field of magnets is about 15,000, which occurs only with rare-earth magnets in a gap configuration.) High resolution of 0.1 gauss over the entire range of +19,999.9 to -19,999.9 gauss allows detection of any variation in field from a magnet. Measures inside DC Solenoids (probe is bent into “L” shape to measure this). Sufficient resolution to map fields far from magnets. Comes with a custom made aluminium carrying case to help protect your device and accessories.
