Please note:
1. The order isone piece 5u(0.005mm) Slim Narrow linear glass scales,travel length are100mm, 150mm, 200mm, 250mm, 300mm, you can choose 1 piece among them.
2. If you choose travel length is 200mm, the total length are 340mm, hoping you can know that, thanks.

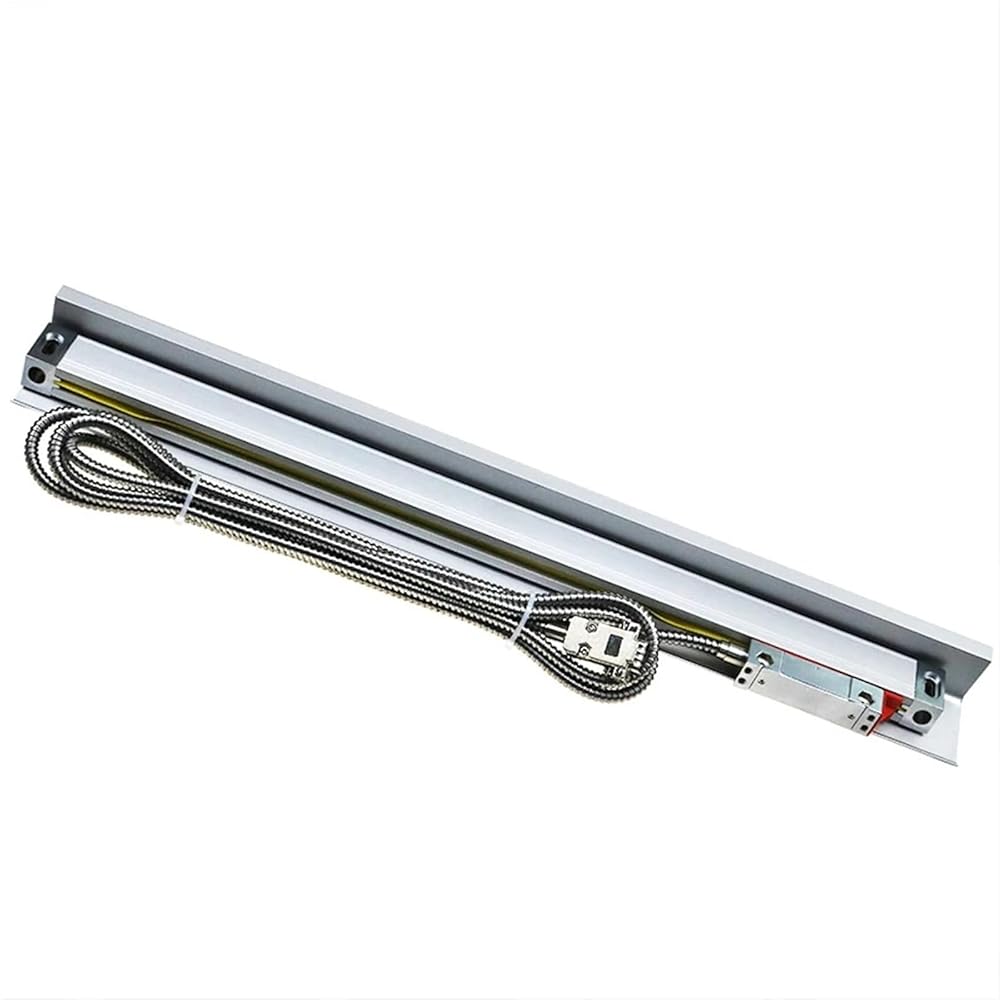

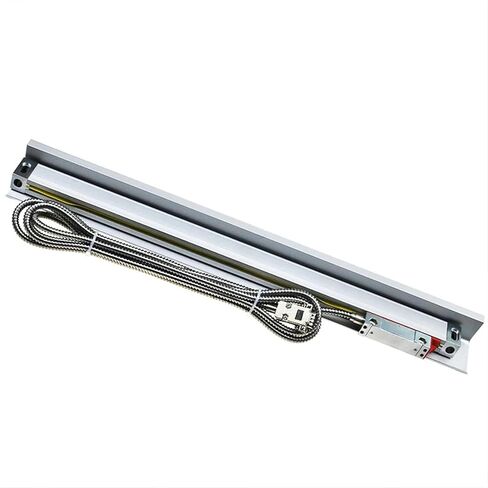

5u Slim/Narrow Linear Scale/Linear Encoder/Linear Sensor/Linear Ruler Parameter
1. Travel (measuring) length: 0-300mm / 0-11.82inch
2. Total (overall) length: Travel length + 140mm
3. interface type: DB9
4. Resolution: 0.005mm
5. Input voltage: 5V
6. Grating pitch: 0.02mm (50LP/min)
7. Cable length: 3 Meter (about 9 feet)
8. Slim/Narrow size: About 20*29
The Signal of 5u Linear glass scales/Linear encoder/Linear sensor
Pin 2 Black 0V
Pin 6 Green A
Pin 7 Red 5V
Pin 8 White B
If you order them, please confirm your Digital Readout can work with our linear scales
==========
Model Number : Slim Narrow Thin Small
Model : 5U 5V TTL
