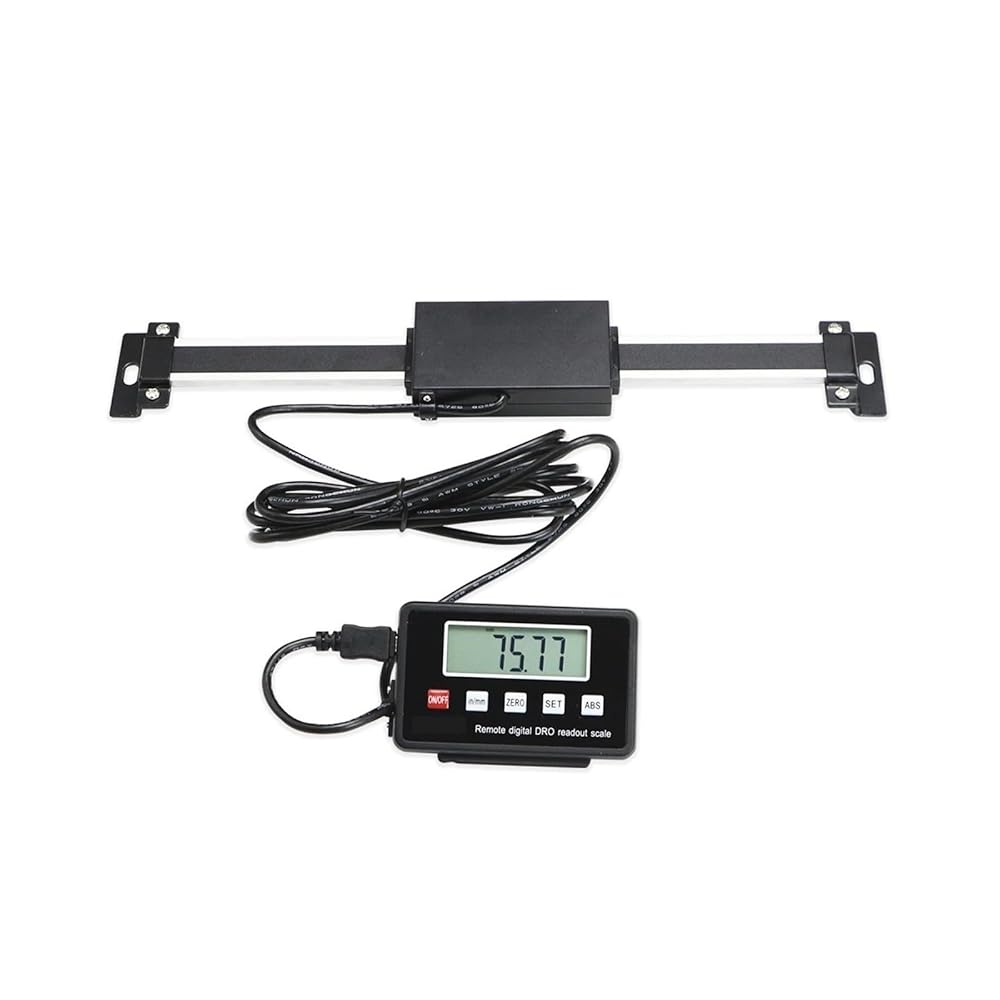

Characteristic
1.Vertical and Horizontal Beam 2-in-1 for Router lift, Router table, Planer
2.Large crystal LCD display
3.Aluminum alloy material ,durable use
4.Remote readout display convenient for reading and operation
5.Magnetic and Clamp hardware on remote readout
6.Inch, fractional and metric reading
7.Mounting hardware included
8.It is used to be equipped together with various industry lathes and upgrade old lathe
Button Function
ON/OFF: Turn the display ON or OFF by press this button
in/mm: Switch from inch to millimeter
ZERO: Set display to zero
ABS: Switch between relative ZERO and normal measuring
Set: Under inch measuring system,press this button to set fractional reading between 1/32,1/64,1/128
Measuring range:0-150mm/0-6inch
Resolution:0.01mm/0.0005inch
Accuracy:±0.06mm

Specifications:
Measuring range:0-200mm/0-8inch
Resolution:0.01mm/0.0005inch
Accuracy:±0.08mm
Measuring range:0-300mm/0-12inch
Resolution:0.01mm/0.0005inch
Accuracy:±0.10mm

Package list:
1*Digital linear scale
1 set *Install fittings
1*User Manual
1*protective case
==========
Measuring range : 0-150mm
Reaolution : 0.01 mm
Accuracy : ±0.06 mm
Material : Aluminum alloy
