1.High Precision Resolution, ideal for milling and lathe applications.
2.Versatile Measurement Range:Available in 50mm to 1000mm lengths, this linear scale caters to various machining needs.
3.Comes with a mounting bracket and screw bag, ensuring a hassle-free setup for your system.
4.This linear scale resists wear and tear in industrial environments.
5.Offers a reliable output signal, compatible with most digital readout systems for seamless integration.
وصف

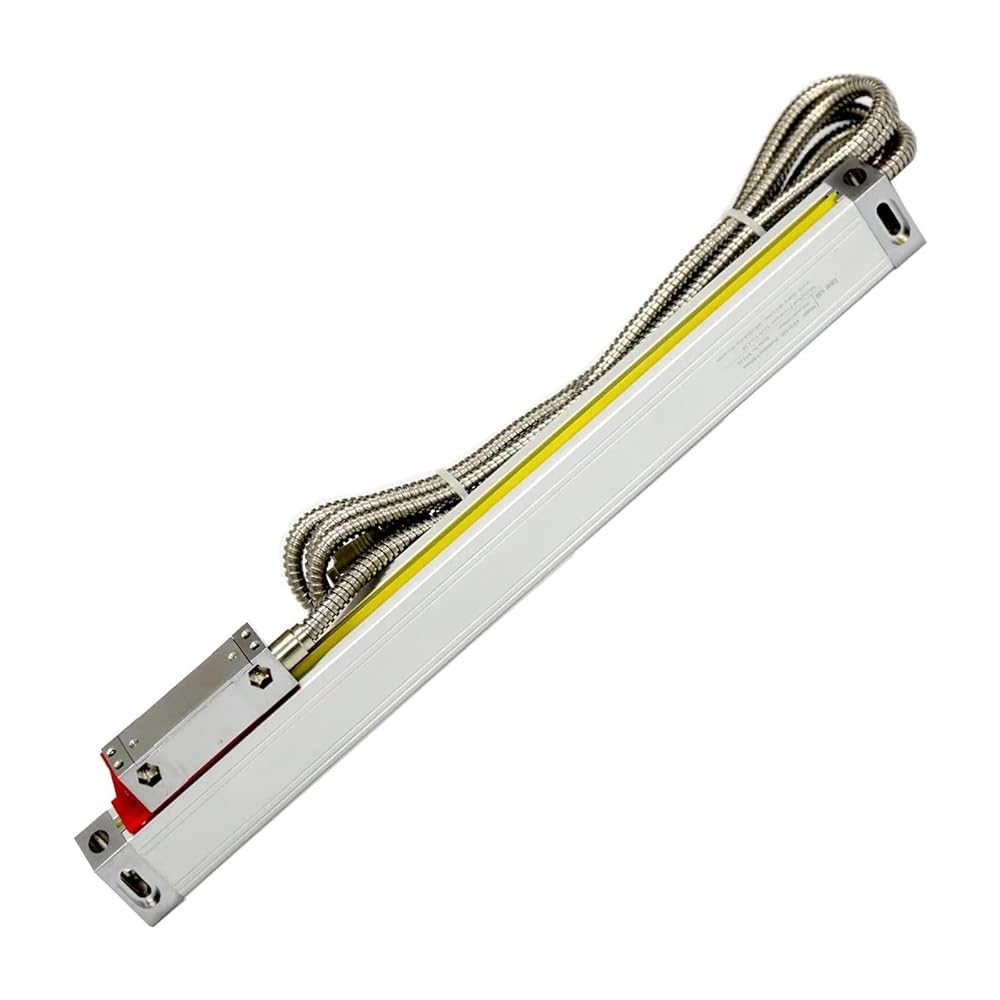

Linear Scale 0.005mm TTL AB Signal 450mm 500mm 550mm 600mm 700mm 800mm 850mm 900mm 950 1000mm Travel Encoder Grating Ruler
5 Micron Linear Scale/Linear Encoder Specifications
1. Travel (measuring) length: 450/500/550/600/700/800/850/900/950/1000mm
2. Total (overall) length: Travel length + 140mm
3. Interface: DB9
4. Resolution: 0.005mm
5. Input voltage: 5V
6. Grating pitch: 0.02mm (50LP/min)
7. Cable length: 3 Meter
8. Normal scale dimension: 21*33mm
9.Accuracy:±3/5/8um
10. Output signal:TTL
Notes: It need to customize for Z signal, and it cost extra. We will send the TTL AB signal as default.
Package includes
Linear scale x 1 piece
Scale dust cover x 1 piece
Mounting L bracket x 1 piece
Screws x 1 bag
==========
Model Number : NTS-M / FTN- / JCXE-
Product name : Linear glass scale
Voltage : 5V DC
Resolution : 0.005mm/5um
Output signal : TTL AB signal
Signal cable length : 3 meter
Dimensions : 21*33mm (width*height)
Scale actual length : travel length plus 120mm
