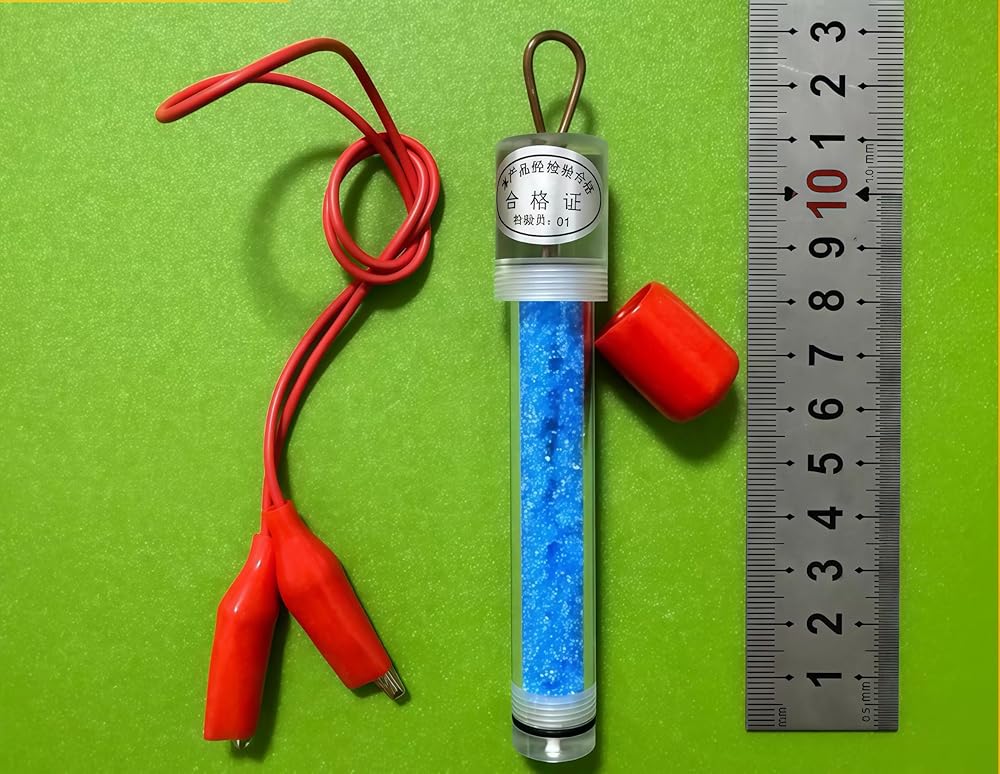

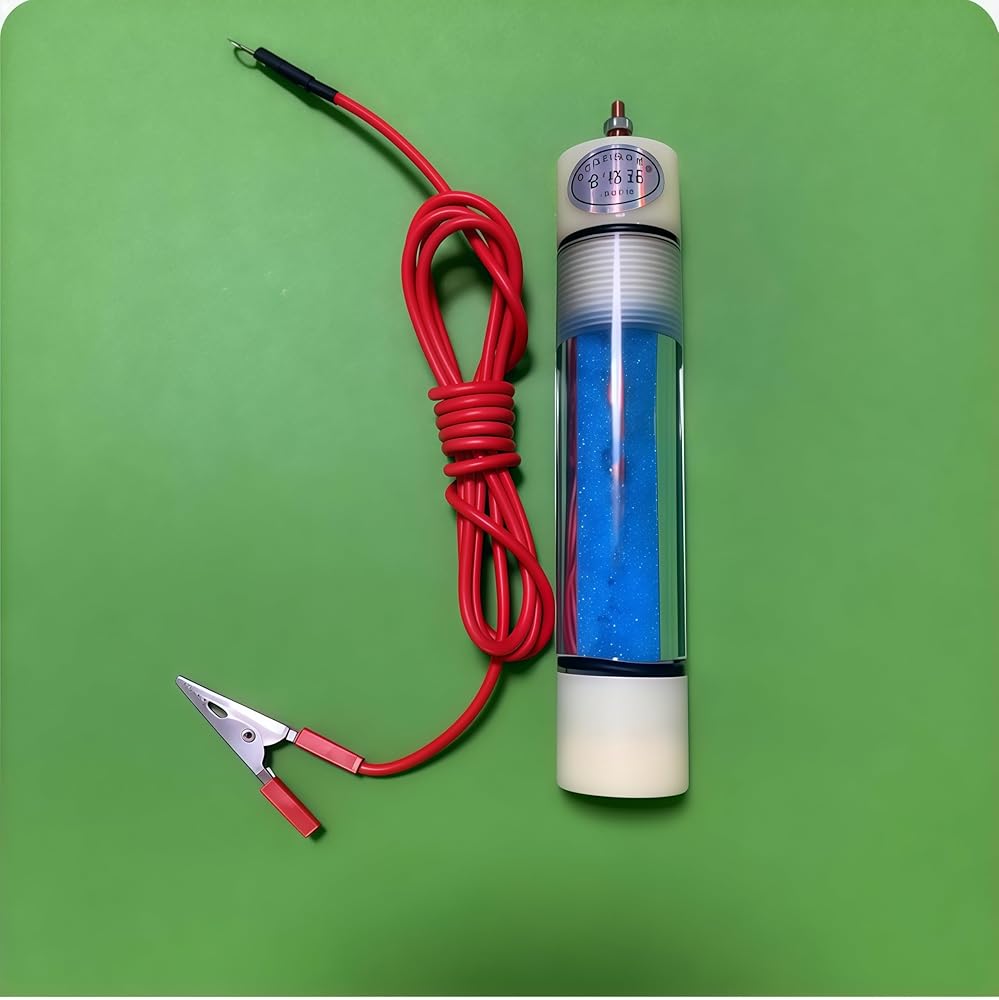

💖Product Introduction The SE-1 Portable Copper Sulfate Reference Electrode (CSE) is an essential tool for on-site cathodic protection monitoring. It is widely used in petrochemical pipelines, urban gas networks, large storage tanks, and concrete structures for corrosion monitoring. This kit specifically includes CCT Portable Copper Sulfate Powder, which solves the problem of subsequent consumable material procurement for you, ensuring that the electrode is always in the optimal working state of saturated copper sulfate solution.
💖Technical parameters:
💖 · Model: SE-1
💖 · Type: Saturated copper/sulfate copper electrode (Cu/CuSO4)
💖 · Potential relative to SCE: 70 ± 3 mV (standard conditions)
💖 · Internal resistance: ≤ 3 KΩ
💖 · Operating temperature range: -15°C to +55°C
💖 · Dimensions: Approximately Φ30mm × 150mm
💖 · Shell material: Transparent organic glass
💖 · Liquid interface: Highly transparent porous ceramic / cork stopper

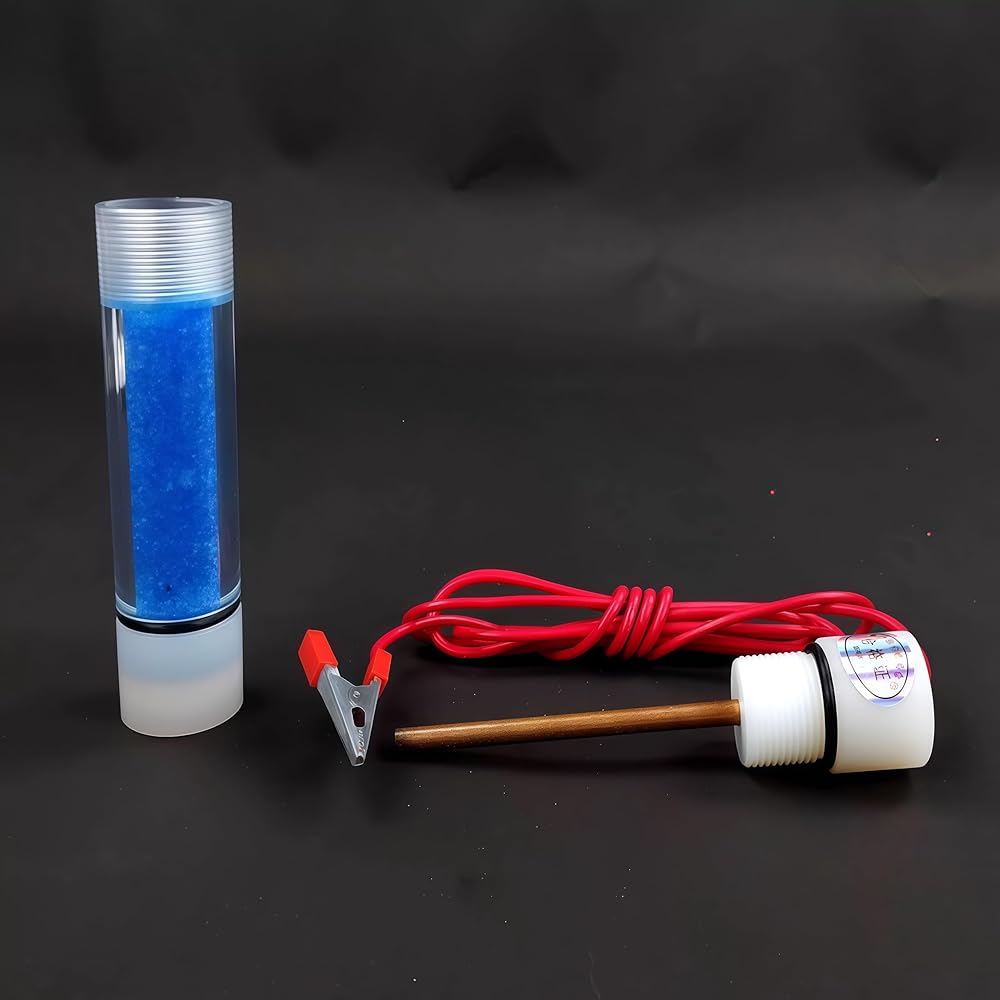

💖Instruction Manual 1. Activation Electrode: Open the upper cover, pour the CCT portable copper sulfate powder into the electrode chamber, add distilled water to submerge the copper rod approximately 2 cm, tighten the upper cover and shake well to ensure thorough mixing, then let it stand until the powder dissolves to form a saturated solution. 2. Test Preparation: Soak the porous ceramic head in water for a moment to enhance conductivity. 3. Connection and Measurement: Connect the black clamp to the negative terminal of the voltmeter, the red clamp to the tested structure (pipe/steel bar), press the electrode ceramic head firmly onto the moist soil or concrete surface, and read the stable value. 4. After Use: Clean the ceramic head, cover it with a protective cover, place it vertically or at an angle (with the ceramic head facing down), and avoid backflow of the solution. Notes for Attention
💖· The electrode contains a copper sulfate solution. In case of leakage, please rinse with clean water. · When not in use for a long time, the solution can be drained, the interior cleaned with water, and then dried for storage. · If the ceramic tip is contaminated by oil, it can be cleaned with a cleaner and then soaked in distilled water.

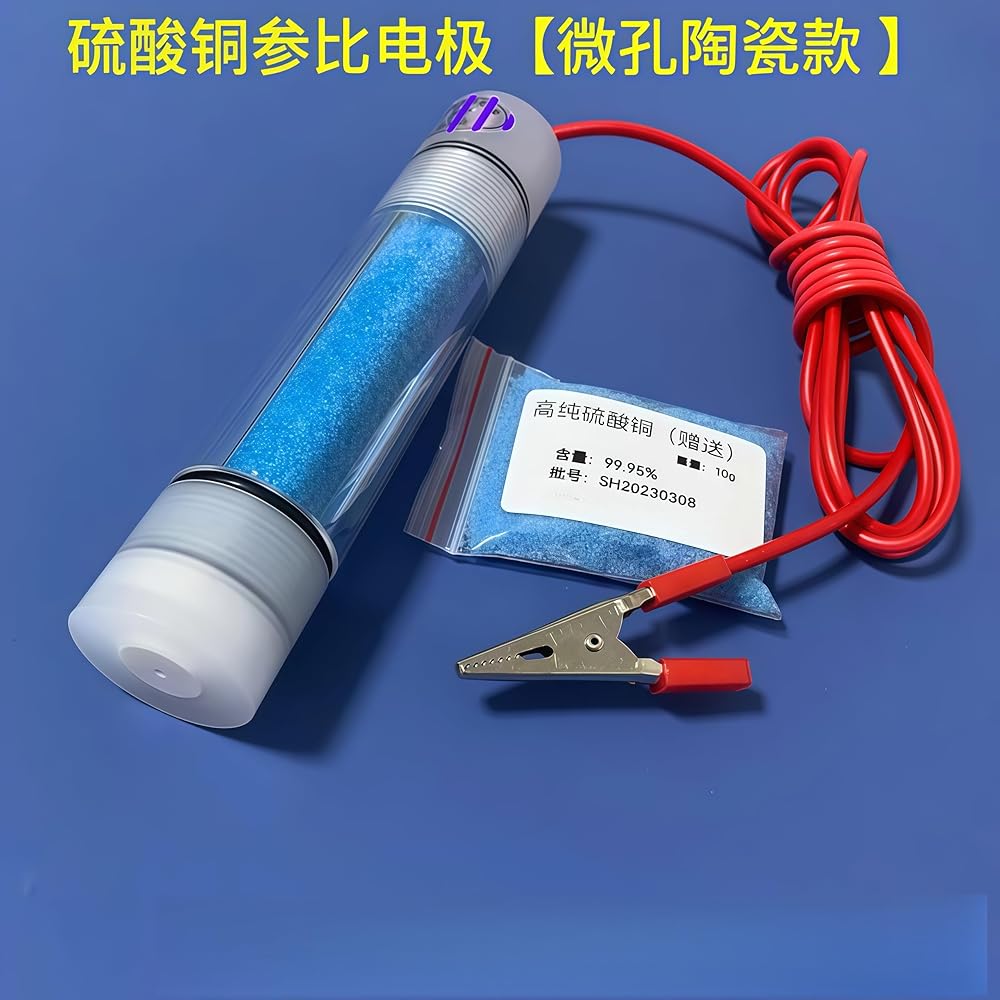

💖Packaging List · SE-1 electrode body: 1 piece · Shielding cable (with clips): 1 cable · CCT copper sulfate powder: 1 bottle · Instruction manual: 1 copy · Portable storage bag: 1 unit Upgrade your cathodic protection inspection tools immediately and choose the SE-1 professional package!
