Functions:
2 Channels For Reverse and Forward direction
1 Channels or 2 Channels are available to Choose
And you can read from App for each Channel
- Real-time total power of 2 channels of reverse and forward direction
- Power for Channel A and B Separately(W)
- Current(mA)
- Voltage(V),
Electricity Statistic for each channel in Forward and Reverse direction.
Hourly Elec.(kWh)
Daily Elec.(kWh),
Monthly Elec.(kWh)
-Yearly Elec.(kWh)
Specificaions:Working Voltage: AC100V-240V, 50/60Hz
Rated Current: 80A/120A/200A/300A
Type: 2.4GHz Only,5GHz Not Support
Installation: 35MM Din Rail
control at anytime from anywhere your mobile phone can get Internet signal App/Smart Life App, no distance limit

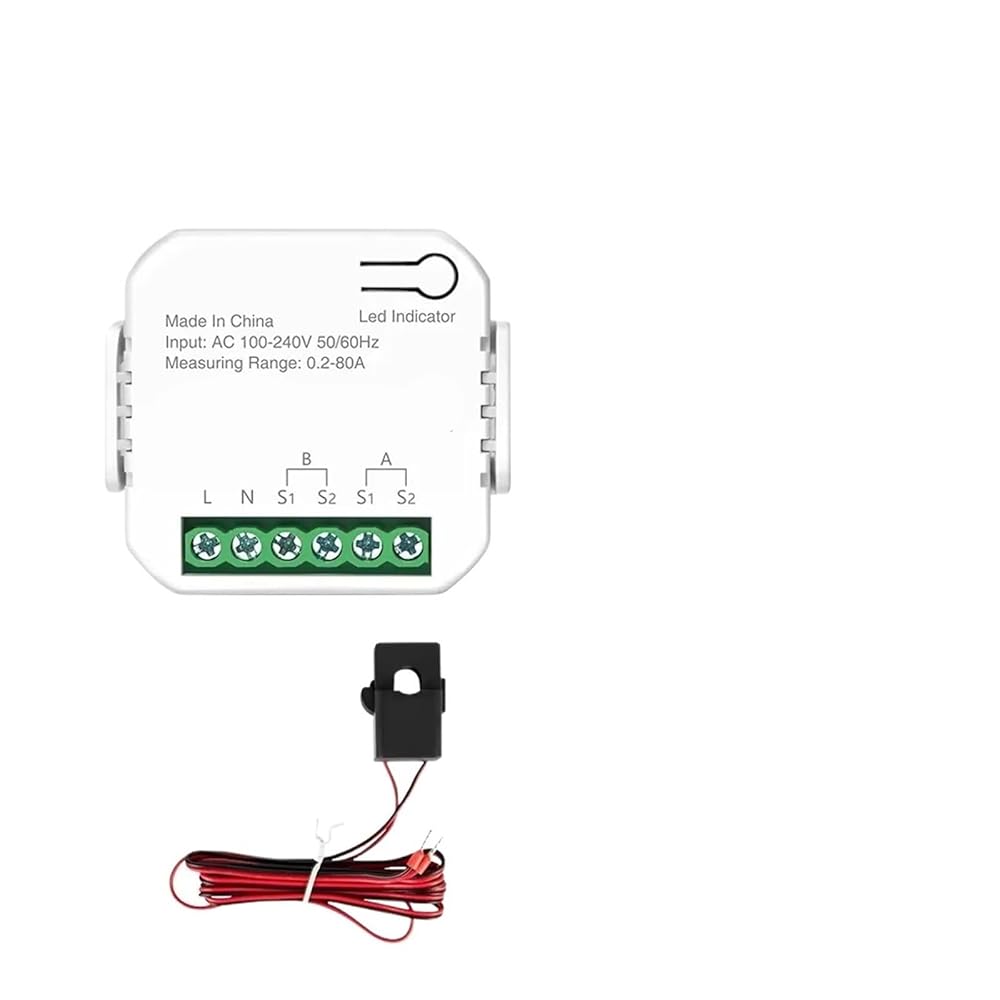

NOTE: The device's current is determined by the current transformer, not by the host. The rated current indicated on the host can be disregarded for reference!
Dimensions : 46*46*19MM
Operating Temperature : -10~55
Output Voltage : AC100-240V
Accuracy Class : ±2%
Measuring Energy Range : 999999.99kWh
Phase : single phase
Model Number : EASEM-F-TY-WF
Max Operating Current : 150A & Above
Rated Voltage : 240V
Power Supply : AC
Display Type : Digital Only
DIY Supplies : Electrical
Origin : Mainland China
Certification : CE
Working Voltage : AC100-240V
Rated Current : 80A/120A/200A/300A
App : Smart Life
Installation : 35MM Din Rail
Protocol : 2.4GHz Only
Function 1 : Total Charge
Function 2 : Current
Function 3 : Bidirectional Measurement
Function 4 : Real-Time Power Usage
Function 5 : Voltage
Function 6 : Power Factor
Function 7 : Active Power
