Product specification
Rated voltage: AC380V
Function:
1. Upper Voltage Limit:120-300V (Adjustable) (Default:275V)
2.Lower Voltage Limit:80-210V (Adjustable) (Default:175V)
3.Upper Current Limit:1-100A (Adjustable) (Default:80A)
4.Lower Current Limit:1-100A (Adjustable) (Default:10A)
5.High Temperature Alarm:10-85 (Adjustable) (Default:85)
6.Overcurrent Recovery
Power-On Delay Time:1-9999s (Adjustable) (Default:20s)
7.Overcurrent Event
Threshold Time:1-999s (Adjustable) (Default:5s)
8.Over and Under Voltage Event
Recovery Power-On Delay Time:1-9999s (Adjustable) (Default:20s)
9.Over and Under Voltage
Event Time Threshold:1-9999s (Adjustable) (Default:3s)
10.Three-Phase Current
Imbalance Alarm:10-100% (Adjustable) (Default:20%)
11.Voltage Three-Phase Imbalance Alarm
12.Lost Current Recovery Delay Time
13.Time Threshold of Lost Flow Event
14.Power Display Range:0-9999999.9kWh(Adjustable)
15.Reclosing Allowed Times:1-30 (Adjustable) (Default:1)
16.Reclose Recover Seconds:1-99 (Adjustable) (Default:1)
17.Power-On Delay Power-On-Time:1-9999 (Adjustable) (Default:5)
18.Device Sharing
19.Remote Control
20.Voice Control

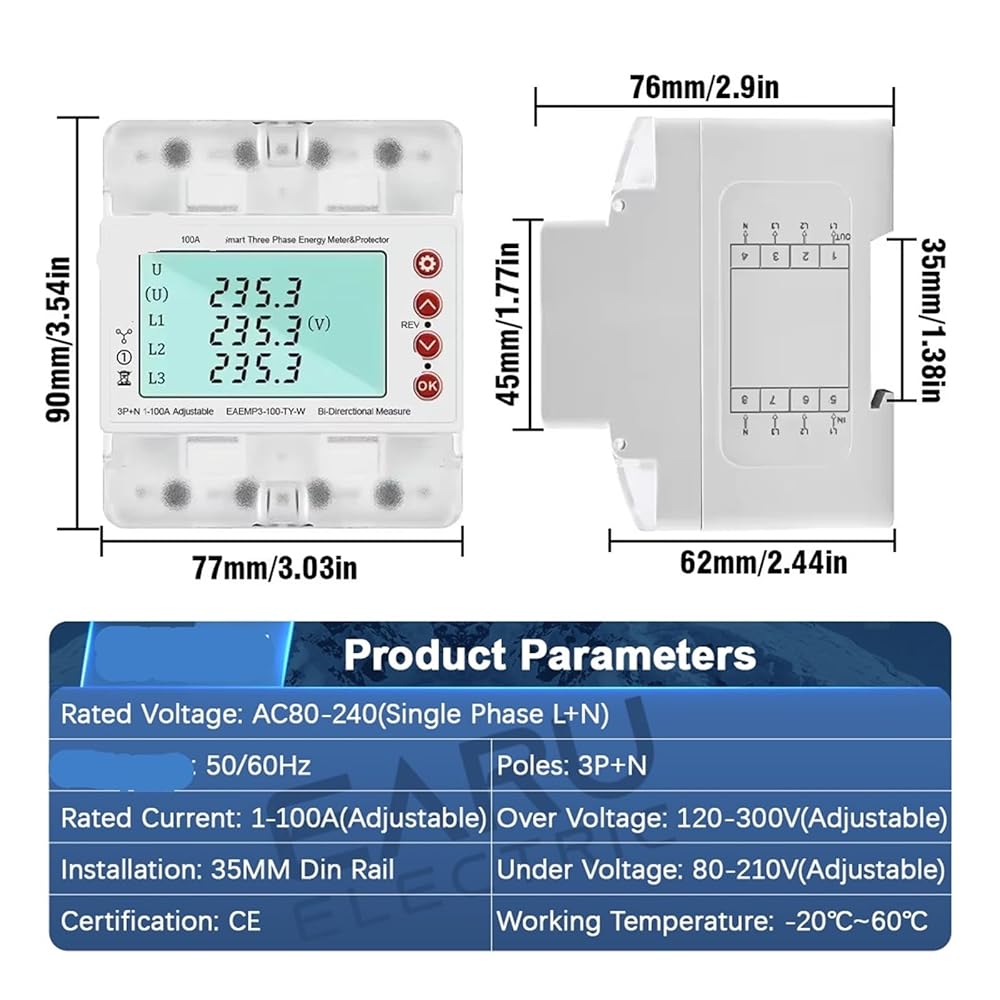

Dimensions : 90*77*75.5mm
Operating Temperature : -20~60
Output Voltage : 80-300V
Accuracy Class : 1%
Measuring Energy Range : 0-9999999.99kWh
Phase : Three Phase

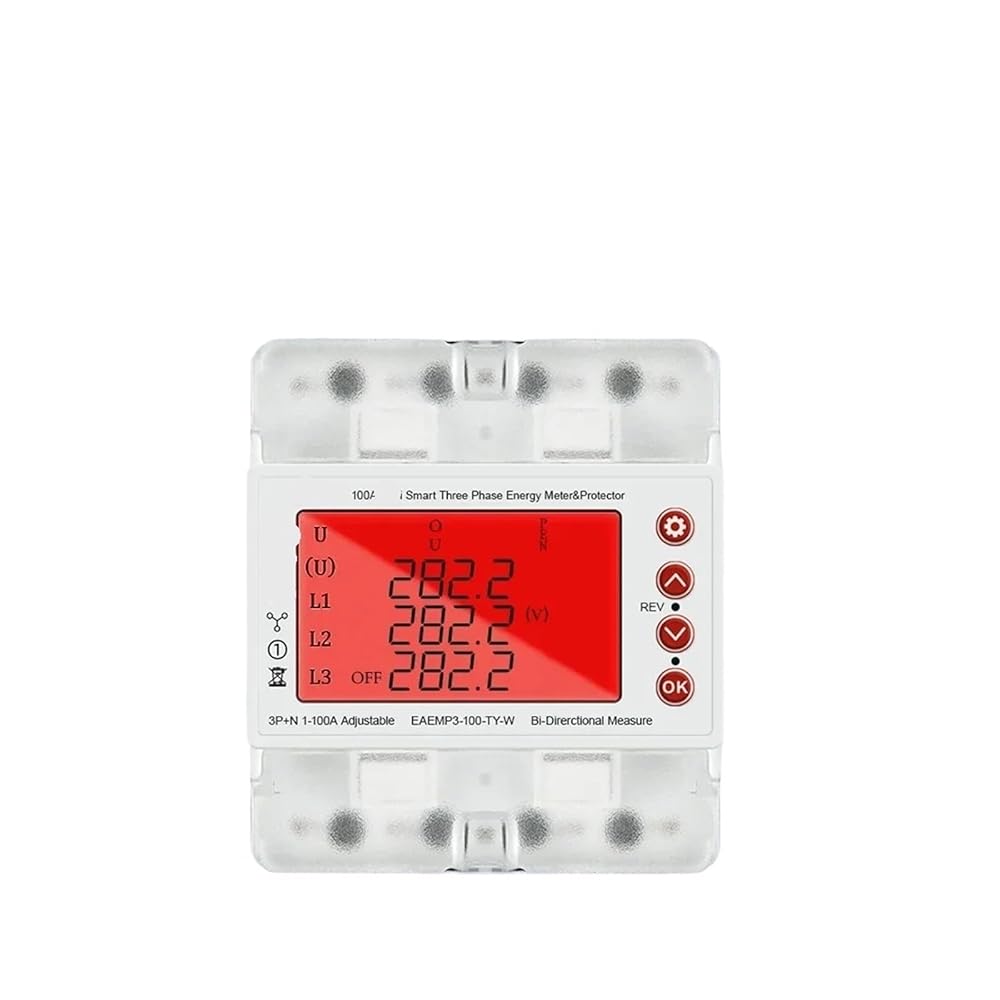

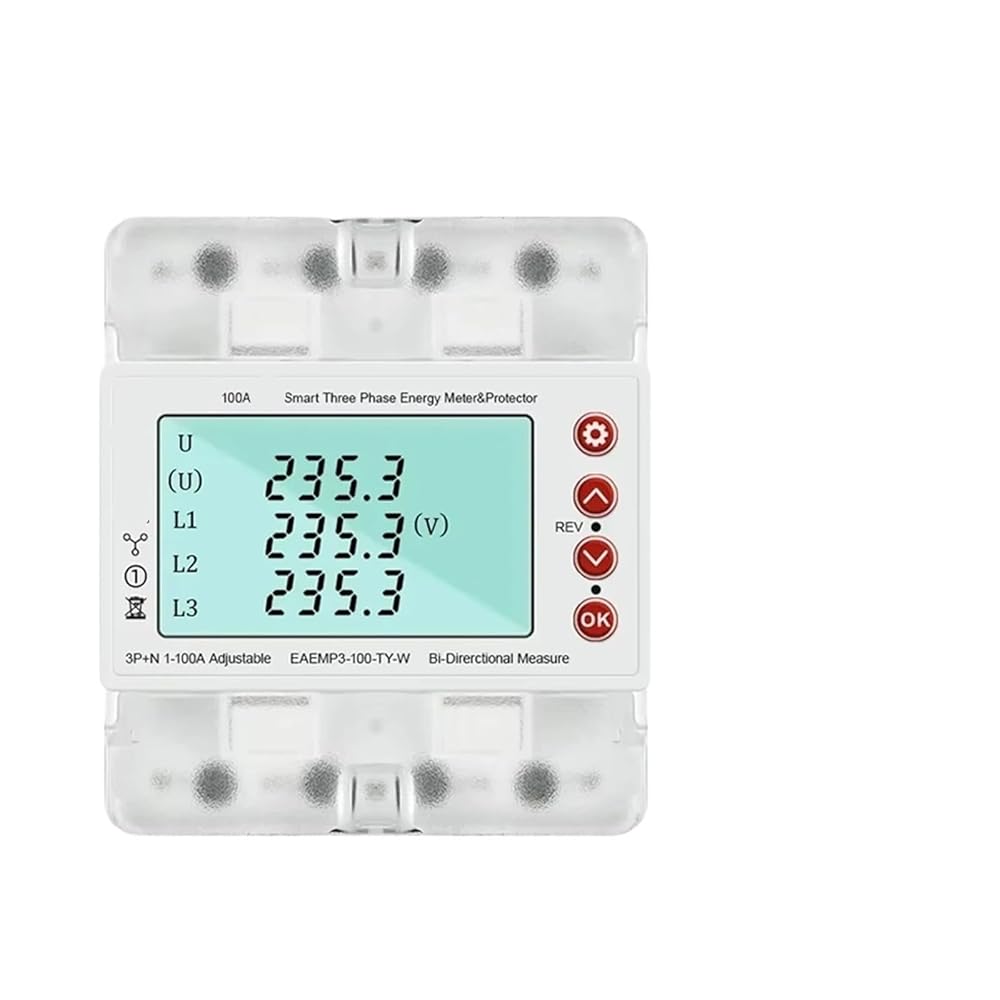

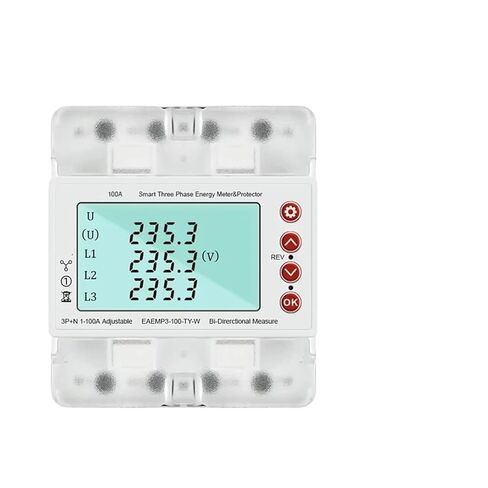

Model Number : EAEMP3-100-TY-W
Max Operating Current : 80A - 99A
Rated Voltage : 380V
Power Supply : AC
Display Type : LCD
DIY Supplies : Electrical
Origin : Mainland China
Certification : CE,FCC,RoHS,KC
Upper Voltage Limit : 120-300V (Adjustable) (Default:275V)
Lower Voltage Limit : 80-210V (Adjustable) (Default:175V)
Upper Current Limit : 1-100A (Adjustable) (Default:80A)
Lower Current Limit : 1-100A (Adjustable) (Default:10A)
High Temperature Alarm : 10-85 (Adjustable) (Default:85)
Overcurrent Recovery Power-On Delay Time : 1-9999s (Adjustable)(Default:20s)
Overcurrent Event Threshold Time : 1-999s (Adjustable) (Default:5s)
Over and Under Voltage Event Recovery Power-On Delay Time : 1-9999s (Adjustable)(Default:20s)
Over and Under Voltage Event Time Threshold : 1-9999s (Adjustable)(Default:3s)
Three-Phase Current Imbalance Alarm : 10-100% (Adjustable)(Default:20%)
Voltage Three-Phase Imbalance Alarm : 10-100% (Adjustable)
Lost Current Recovery Delay Time : 1-9999s (Adjustable) (Default:20s)
Time Threshold of Lost Flow Event : 1-999s (Adjustable) (Default:10s)
