1.Accuracy:
1%±2 words
2. Range:
AC voltage: AC 40.0-300.0V or AC 250.0-450.0V (You should select one type of the meter in your order)
The measuring range 40-300V without limitation, and it can be used in grid power, photovoltaic and inverter current
250-450V only can use for 380V
AC Current:AC 0-100.0A, the current resolution is0.01A.
Frequence: 45.0Hz 65.0Hz
Power Factor: 0.00-1.00PF
Electric Power: 0-450000W, the electric power resolution is 0.1W when measure electric power between 0-9999.9W, otherwise the electric power resolution is 1W.
Electric Energy: 0-99999kwh, the display of electric energy resolution is 0.01kwh when measure electric engery between 0-999.99kwh, the display of electric energy resolution is 0.1kwh when measure electric engery between 1000.0-9999.9kwh and the display of electric energy resolution is 1kwh when measure electric engery larger than 9999.9kwh
3. Speed:
2 times per second
Attention:
The meter can only use for measure 45-65Hz AC city electricity.
Note
The measuring voltage range of this instrument is 200-450V and only applicable to the city power supply of pure AC 45-65Hz, and the measuring range is 40-300V.
Please attention to purchase
To measure 110V 220V voltage, please check AC40-300V, and measure 380V voltage to check 200-450V!
If 200-450V is used to measure the voltage of 220V, the meter measurement is inaccurate, please attention!
To measure the ABC three-phase voltage at the same time, AC40-300V must be used, and the premise equipment must have a neutral line, and three pieces need to be purchased! If you buy AC200-450V, only one of the three phases can be measured.
Dimensions : 79*43*48mm
Operating Temperature : -10~60
Accuracy Class : 1% 2 words

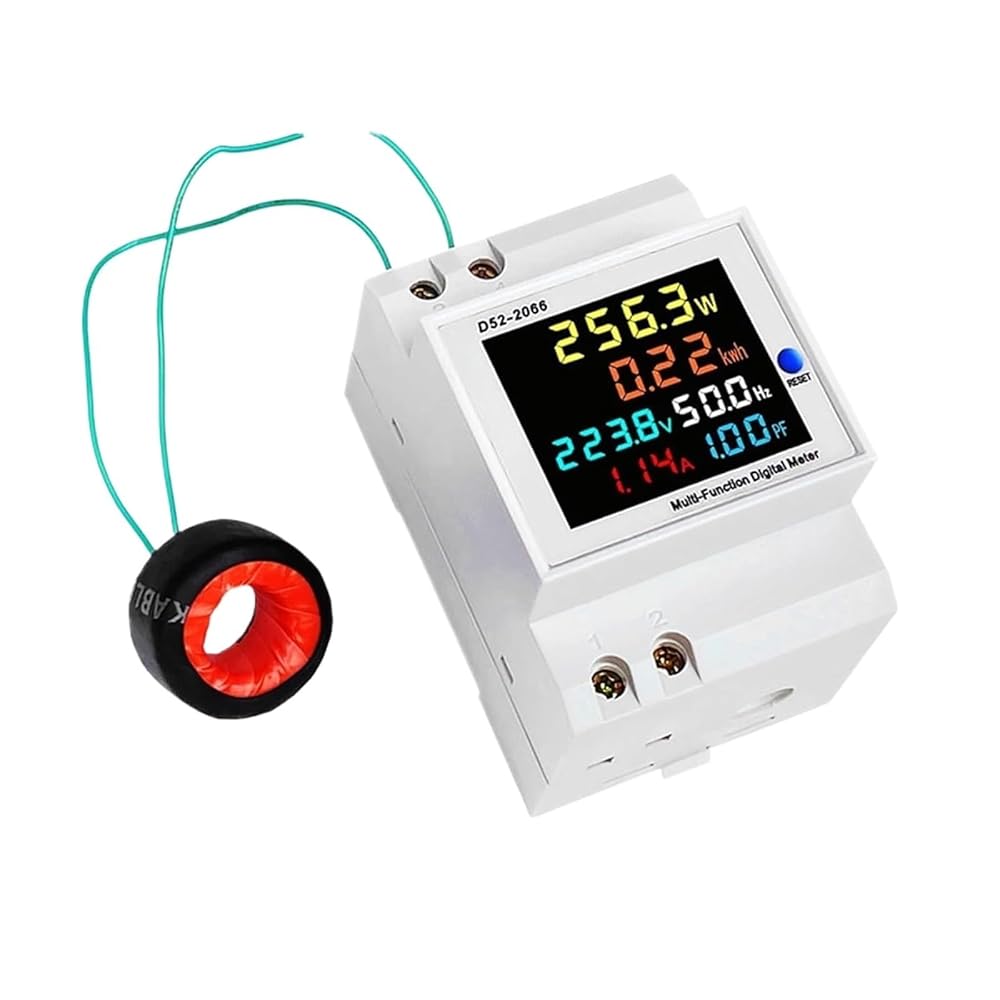

Model Number : D52-2066
Power Supply : AC
Display Type : Digital Only
DIY Supplies : Electrical
FXCOD Model : D52-2066
Origin : Mainland China
Certification : CE,NONE
