Filter, Regulator & Lubricator Combos
Product Description:

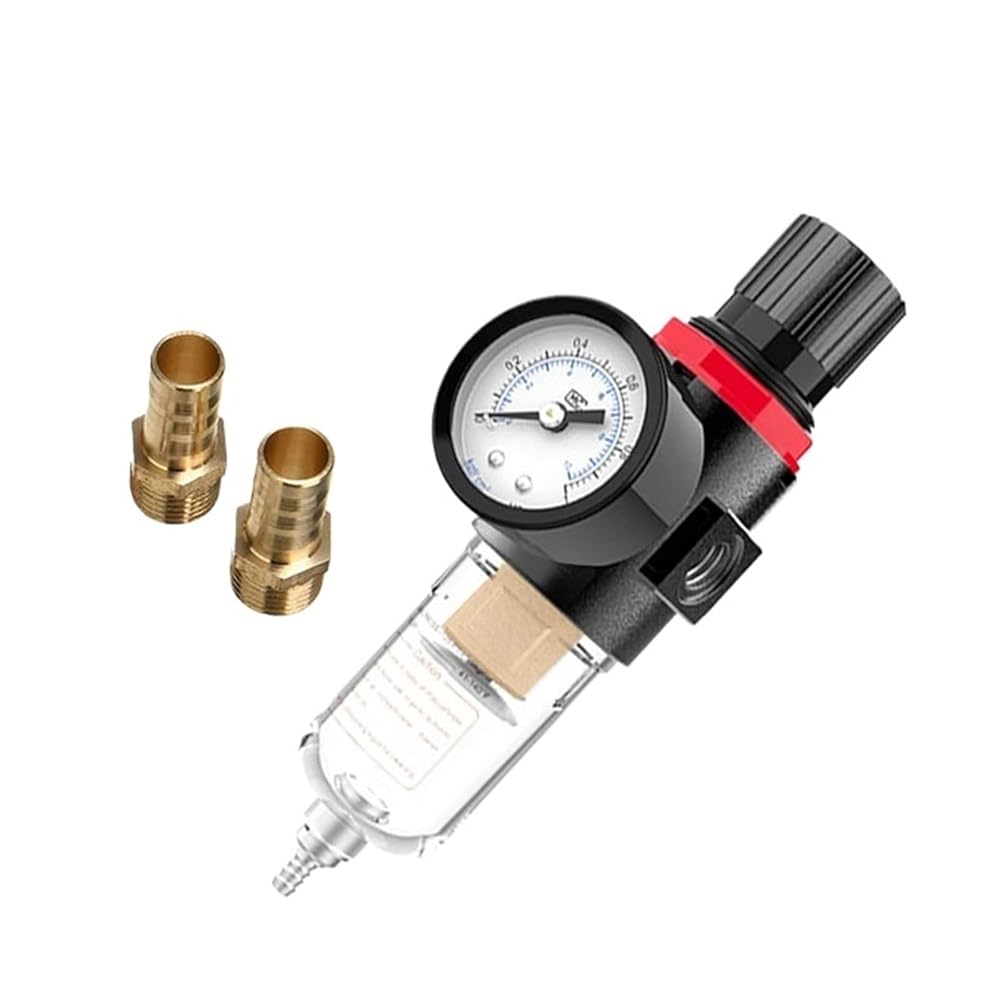

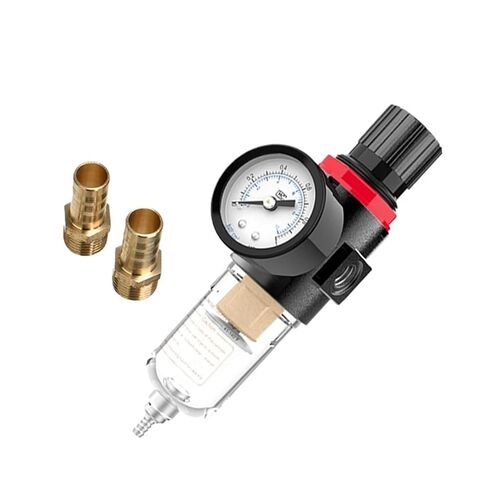

Model: AFR2000 (AFR is the model, 2000 is the port size)
Interface size: G1/4
Filter + PC4mm connector: suitable for pipes 4*2.5mm
Filter + PC6mm connector: suitable for pipes 6*4mm
Filter + PC8mm connector: suitable for pipes 8*5mm
Filter + PC10mm connector: suitable for pipes 10*6.5mm
Filter + PC12mm connector: suitable for pipes 12*8mm
Filter + PC14mm connector: suitable for pipes 14*10mm
Filter + PC16mm connector: suitable for pipes 16*12mm
Material: Main body (aluminum die-casting), container (polycarbonate)
Fluid: Air
Filter accuracy: 5m
Operating pressure range: 0-1.0MPa (manual drainage: 0-9.5kgf/cm2, differential pressure drainage: 1.5-9.5kgf/cm2)
Temperature: 5～60°
Instrument caliber: G1/8
Treatment cup capacity: 15CM3 Length: about 15cm
Installation and Usage:
Install in the direction indicated by the arrow on the valve body, which is the direction of gas flow.
Package Included: 1 x Filter Regulator
==========
Type: Filter
Model: Afr-2000
Origin: Mainland China
Application: Air conditioner
Application: Petrochemical water-oil separator
Port size: 1/4'' =12.5mm
